Atomos Video Accessories | 7 inch Shogun Ultra Monitor-Recorder

• AtomOS 11, 12G-SDI/HDMI Conversion
• 7″ 1920 x 1080Touchscreen
• Records up to 8K Apple ProRes Raw
• ProRes Raw + H.265 Dual Recording
• AirGlu RF Wireless Sync, GigE, 6E Wi-Fi
• 2000 cd/m² Brightness
• ARRI/Canon/RED/Sony Camera SDI Support
• AVID DNX QuickTime
• Atomos RemoteView via Subscription
• NDI 4K TX Pro Mode 1-Off Activation

Panel Type  IPS-Type LCD

Display Size  7.0″ / 17.8 cm

Resolution  1920 x 1200

Aspect Ratio  16:9

Touchscreen  Yes

Maximum Brightness  2000 nits / cd/m2

Bit Depth / Color Support  10-Bit (1.07 Billion Colors)

HDR Compatibility  HDR10

Pixels Per Inch (ppi)  315 ppi

Color Gamut  100% DCI-P3
100% Rec. 2020

Real-Time LUT Monitoring  SDR, HDR

Image Controls  Anamorphic De-Squeeze, False Color, Focus Peaking, OSD Flip, RGB Parade, Vectorscope, Waveform, Zebra

Video I/O 1 x HDMI 2.0 Input
  1 x BNC (12G-SDI) Input
  1 x HDMI 2.0 Output
  1 x BNC (12G-SDI) Output

Embedded Audio  HDMI: 8-Channel
  SDI: 24-Channel

Power I/O  1 x Barrel Input

Other I/O 1 x 2.5 mm (LANC)
  1 x USB-C (Serial) Input
  1 x RJ45 (Gigabit Ethernet) Input

Media/Memory Card Slot  Single Slot: SSDmini/SSD with Master Caddy II/III

File System Support  exFAT

Audio I/O 1 x 1/8″ / 3.5 mm Headphone Output
  1 x 1/8″ / 3.5 mm Input
  1 x 1/8″ / 3.5 mm Output

Built-In Speaker  None

Wi-Fi  Wi-Fi 6 (802.11ax); Dual-Band (2.4 & 5 GHz)

Bluetooth  Yes

Mobile App Compatible  Yes: Android & iOS
App Name: AtomRemote
Functionality: Adjust Settings, Setup
*As of September, 2023: Check with manufacturer for the most up-to-date compatibility

Video Format

HDMI/SDI (8/10-Bit 4:2:2/4:2:0 YCC)  8K Raw: 30
  6K Raw: 60/30
  4K Raw: 120
  DCI 4K: 60
  UHD 4K: 60
  DCI 2K: 60
  1080p: 120
  1080i: 60/50
  720p: 60

Gamma Curve ARRI Log C, ARRI Log C4, Canon Log, Canon Log 2, Canon Log 3,

DCI-P3, DCI-P3+, FLAT, FUJIFILM F-Log, FUJIFILM F-Log 2, HDR-HLG,

JVC J-Log, Nikon N-Log, OM-Log, Panasonic V-Gamut, Panasonic V-Log,

Rec709, Rec2020, RED IPP2, REDlogFilm, S Cinetone, Sony S-Log 2,

Sony S-Log 3, V-Log, V-Log L, Wide DR, Z-Log2

Video Signal Conversion  HDMI to SDI

 SDI to HDMI

Timecode Support  Yes

Pulldown Conversion  None

Camera Trigger  SDI, HDMI

Pre-Roll Record  None

Encoding Formats  x
DNxHD

  H.265
  ProRes

DC Input Power  6.2 to 16.8 VDC

Built-In Battery  None

Battery Type  1 x L-Series

Metadata Tagging  Yes

Phantom Power  None

Material of Construction  Aluminum, Polycarbonate

Dimensions  7.8 x 5.2 x 1.6″ / 198 x 133 x 40 mm

Weight  1.6 lb / 730 g

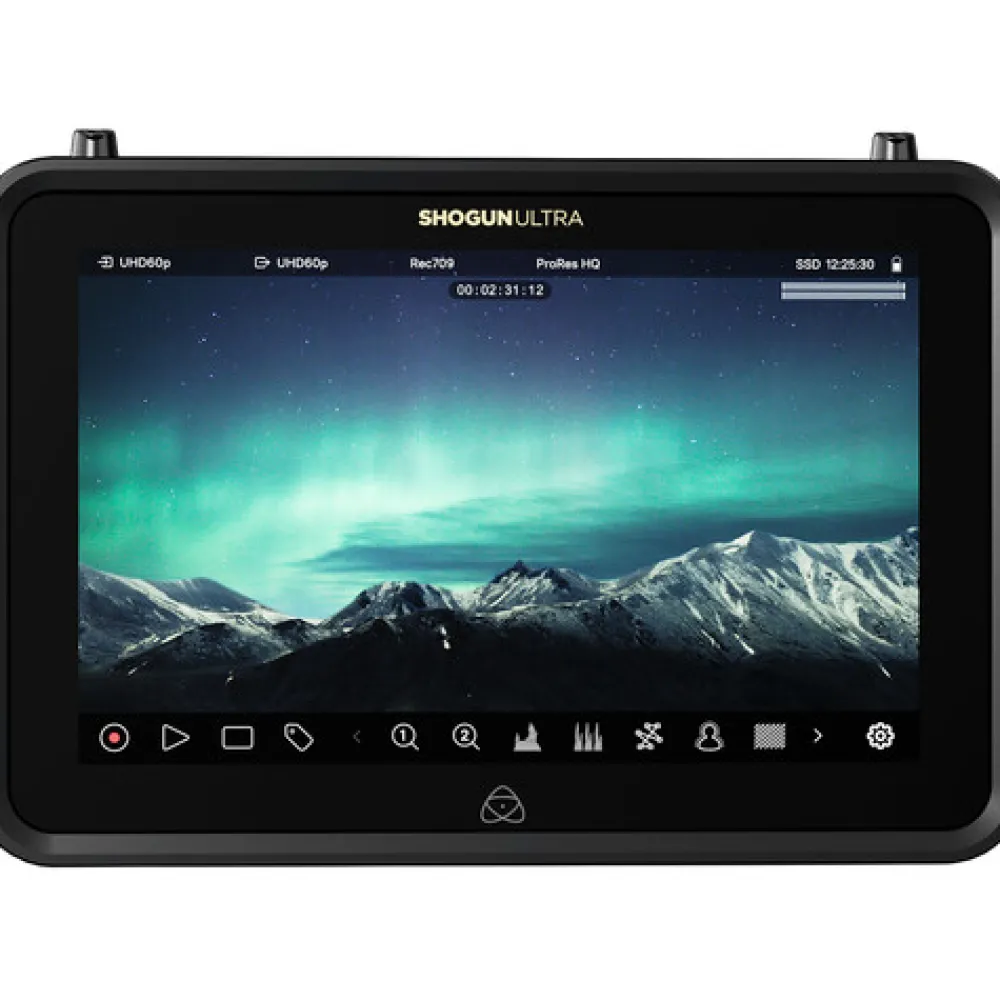

Atomos 7″ Shogun Ultra Monitor-Recorder
