Atomos Video Accessories | Shinobi II 5.2 HDMI HDR Monitor

• Slimmer, Lighter, Low-Profile Design
• 5.2″ 1920 x 1080 Capacitive Touchscreen
• High 1500 cd/m² Brightness
• 4K HDMI Input, HDR/HLG/PQ Support
• USB PD Power, USB-C/LANC Camera Control
• AtomHDR Mode with 10-Stop Dynamic Range
• Built-In and USB Calibration Support
• Single Sony L-Series Battery Slot

Brighten your on-camera monitoring with the Atomos Shinobi II 5.2″ HDMI HDR Monitor. The Shinobi II has been designed for vloggers, photographers, and content creators with numerous feature improvements over the original Shinobi, including an even slimmer and lighter body design, a 50% brighter display at 1500 cd/m², USB-C camera control for Canon/Panasonic/Sony/Z CAM with status indicators, a new AtomOS 11 interface, USB-C PD power I/O, a locking HDMI and USB-C adapter, updated image tools, and ultra-low battery consumption so the monitor can run all day on only a single battery.



Camera Control

Use the USB-C port to control the latest mirrorless or DSLR cameras from Canon, Panasonic, Sony, and Z CAM’s E2 line. There is also a 2.5mm LANC port on the side for additional control compatibility.



NOTE: This will expand with future support for cameras from FUJIFILM, Nikon, OM System, and Sigma with firmware updates.

Camera Status

A camera status indicator allows you to keep an eye on the camera’s internal record settings, battery status, and remaining recording time. A red edge display shows when the camera is recording internally, whether it’s triggered by the camera or from the Shinobi II.

AtomOS 11 & Advanced Image Tools

The Shinobi II includes the latest Atomos AtomOS 11, which introduces numerous new tools and features with a more logical layout and easy-to-navigate interface.



Use the Shinobi II interface to adjust your camera lenses’ aperture, shutter speed/angle, and ISO with its built-in exposure tools, such as false color, waveforms, zebras, or histogram, and achieve perfect exposure on every shot.

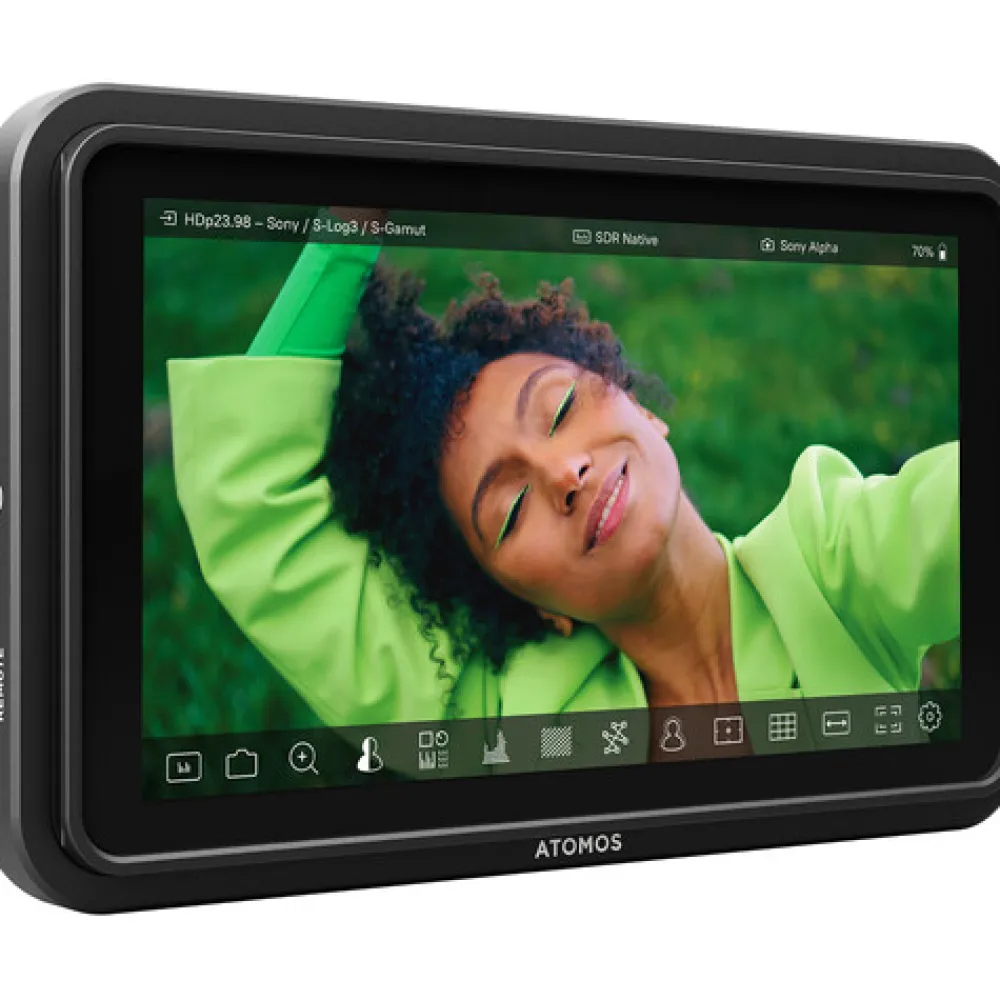

Brighter Display

The 5.2″ touchscreen display is 50% brighter than the Shinobi, measuring 1500 cd/m² peak brightness, making it easily readable whether you’re shooting indoors or in bright sunlight.

Input Signals

The Shinobi II features an HDMI 1.4 input that allows you to monitor signals in various resolutions and frame rates up to DCI/UHD 4K30 and up to 1080p60.

HDR and LUT Support

The HDR HLG and HDR PQ monitoring modes allow you to preview what your camera’s Log output might look like in HDR. Users can also upload up to eight custom LUTs to the monitor’s built-in storage to preview their shots with their own favorite looks.

Frame Guides

A variety of built-in cinema-style and social media-focused frame guides help compose your shots, including presets for 2.41, 2.35, 1.91, 1.9, 1.85, 16:9, 9:16, 4:5, 2:3, 1:1, 5:4, 4:3, 3:2.

Lightweight Design

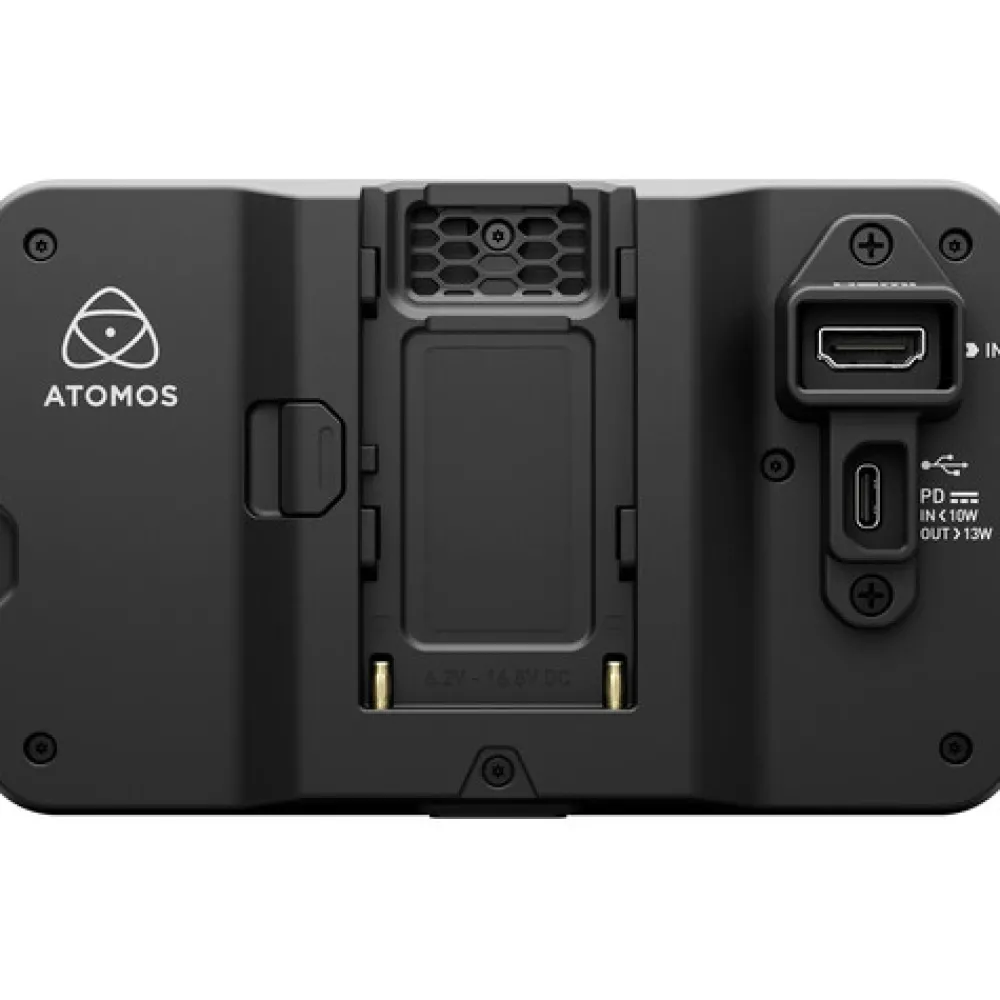

The monitor has been slimmed down to weigh only 7.4 oz, and there are added locating holes alongside the 1/4″-20 threads for anti-twist mounting. A single L-series battery plate on the back has been placed in the center to improve balancing and maneuverability. The included HDMI/USB-C locking adapter allows you to use Atomos’ new line of locking cables to prevent disconnecting or pulling.

Power Options

There are multiple methods to power the Shinobi II, including an L-series/NP-F style battery, an optional battery eliminator (dummy battery) in combination with a DC barrel to D-Tap cable, or via a USB-C PD charger with 10W input. You can also charge/power your camera via USB-C PD 13W output while you’re using Shinobi II’s camera control features.

Panel Type  IPS-Type LCD

Display Size  5.2″ / 13.2 cm

Native Resolution  1920 x 1080

Aspect Ratio  16:9

Viewing Angle  Horizontal: 178°
 Vertical: 178°

Touchscreen  Yes

Maximum Brightness  1500 nits / cd/m2

Bit Depth / Color Support  8-Bit+FRC (1.07 Billion Colors)

HDR Support  Yes, Hybrid Log Gamma

Pixels Per Inch (ppi)  423 ppi

Color Gamut  100% Rec. 709

Real-Time LUT Monitoring  SDR, HDR

Video I/O  1x HDMI 1.4 Input

HDCP Support  No

Embedded Audio  HDMI: 2-Channel

Audio I/O  1x 1/8″ / 3.5 mm Headphone Output

Built-In Speaker  No

Power I/O  1x USB-C (16.8 VDC) Input/Output

Other I/O  1x 2.5 mm (LANC) Output

Media/Memory Card Slot  Single Slot: SD/SDHC/SDXC (UHS-I)

Input Power  6.2 to 16.8 VDC

Battery Type  1x L-Series

Power Consumption  10 W (Typical)
  13 W (Maximum)

Material of Construction  Polycarbonate

Dimensions  5.9 x 3.6 x 0.8″ / 151 x 91.5 x 20.8 mm

Weight  7.4 oz / 210 g

Atomos Shinobi II 5.2″ HDMI HDR Monitor
• USB-C 2.0 Cable
• HDMI/USB-C Locking Cable Adapter
