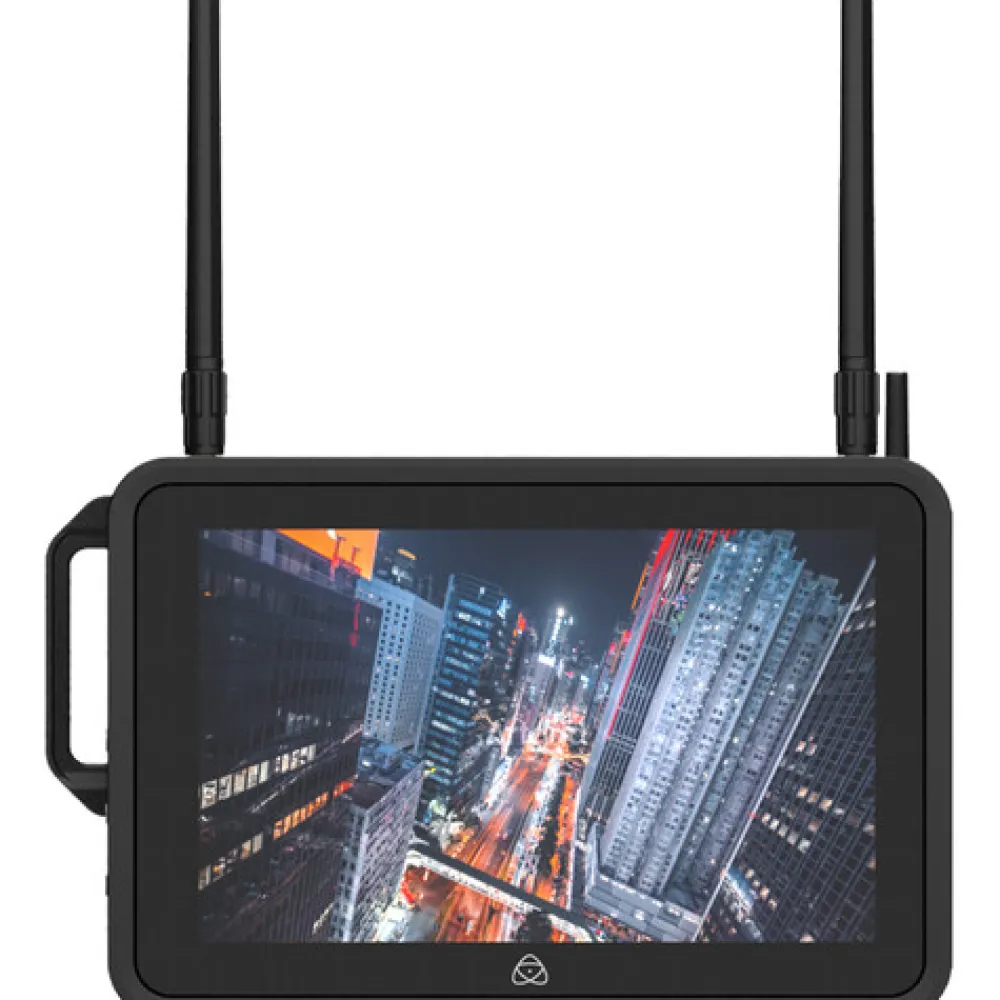

The Shogun CONNECT from Atomos expands upon the HDR recording and monitoring capabilities of the Shogun by integrating cloud connectivity via its multiple wireless interfaces.

The 7″ 1920 x 1200 touchscreen display boasts a brightness of 2000 cd/m². A loop-through 12G-SDI input and output interface supports SDI RAW recording. Both the HDMI and 12G-SDI connections can record, monitor, and transmit 4K video with ease.

Adobe Frame.io support makes the Shogun CONNECT a camera to cloud device, allowing you to take footage from your camera and transfer it over a long-range connection between other devices. Wi-Fi 6, Bluetooth LE, Gigabit Ethernet, and USB Type-C connection ensure flexible, all-around connectivity. Remote collaboration brings production and post-production closer together with features like dual recording and progressive transfer technology. Power for the Shogun CONNECT can be achieved via the locking DC jack or with a separately available L-series battery.

CONNECT Upgrades

• Features a new, brighter HDR screen and range of built-in interfaces
• Loop through 12G-SDI input/output for SDI RAW and HDMI support an expansive range of professional cinema, DSLR, and mirrorless cameras
• ATOMOS AirGlu technology enables direct, long-range communication between devices up to 0.2 miles and wireless timecode lock

Streaming Capabilities

• Supports livestreaming to Facebook Live, Twitch, and YouTube
• Built-in Wi-Fi 6, Gigabit Ethernet, Bluetooth LE, and the ability to join cellular hotspots

Camera to Cloud Device

• Fully integrated Frame.io camera to cloud device
• With support of HDMI and SDI equipped cameras, it offers advanced online workflows and remote collaboration between filmmakers
• Record, monitor, and share your work from one device

Dual Recording

• Creates matching “hero” Apple ProRes, ProRes RAW, or Avid DHxHR/HD files to a “proxy” HEVC (H.265) file simultaneously
• Proxy files can be uploaded during capture using ATOMOS transfer technology for immediate availability in the cloud post-recording

Shogun Control

• Auto HDMI trigger supports Canon, Sony, Atomos Open Standard
• Camera selectable SDI trigger
• Serial 2.5mm jack for LANC control and calibration with separately available USB to serial cable
• Bluetooth LE control via AtomControl App for monitor assist functions
• Wireless RF AirGlu remote start/stop trigger

Monitor Assist Functions

• 3D LUT
• Anamorphic de-squeeze
• Cine frame guides
• Display flip
• False color
• Focus peaking
• Frame grab
• Grid markers
• Isolate color channel
• Onion skin overlay
• RGB parade
• Safe areas
• Social frame guides
• Vectorscope
• Waveform
• Zebra
• Zoom

Display

Panel Type  IPS-Type LCD

Display Size  7.0″ / 17.8 cm

Resolution  1920 x 1200

Aspect Ratio  16:9

Touchscreen  Yes

Image Controls  Anamorphic De-Squeeze, False Color, Focus Peaking, OSD Flip, RGB Parade, Vectorscope, Waveform, Zebra

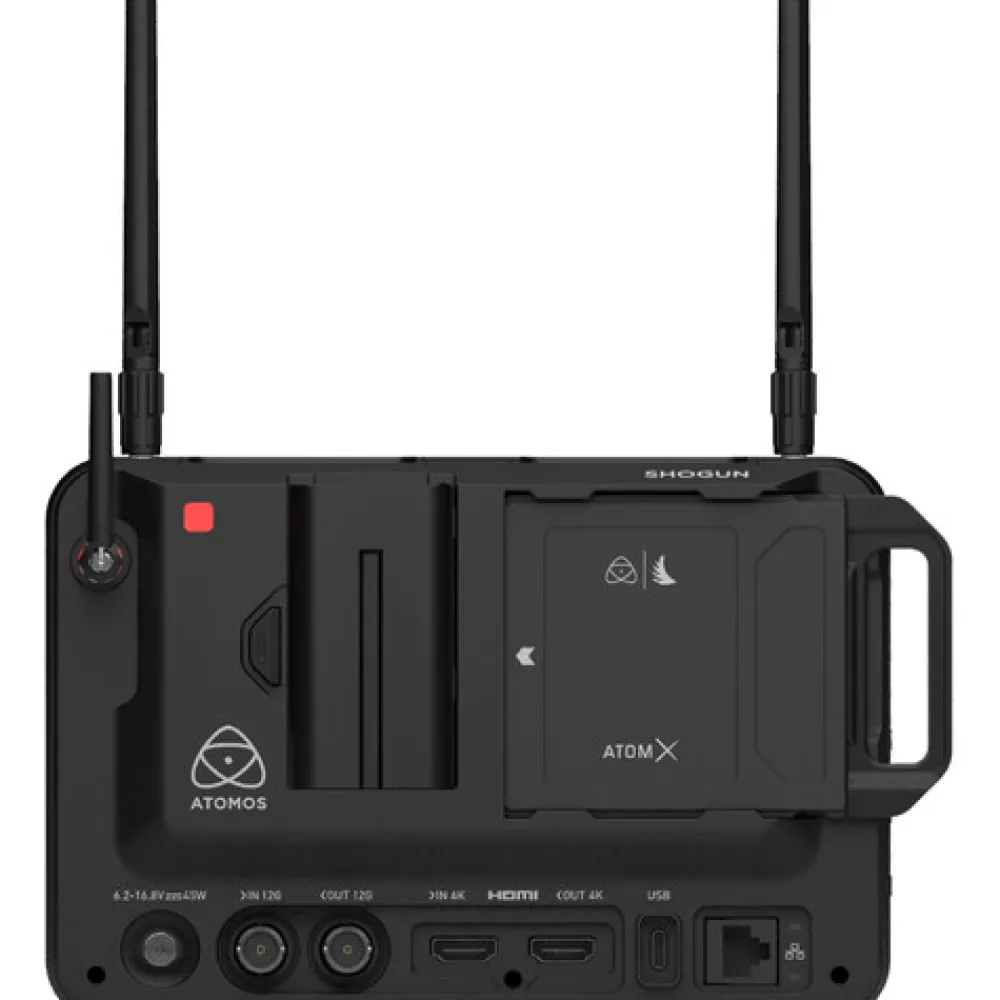

I/O

Antenna Ports  2 x F-Type

Video 1 x HDMI Type A (HDMI 2.0) Input
1 x BNC (12G-SDI) Input
1 x HDMI Type A (HDMI 2.0) Output
1 x BNC (12G-SDI) Loop Output
1 x BNC (12G-SDI) Monitor Output

Embedded Audio HDMI: 8-Channel
SDI: 12-Channel

Audio 1 x 1/8″ / 3.5 mm Headphone Output
1 x 1/8″ / 3.5 mm Input
1 x 1/8″ / 3.5 mm Output

Power I/O 1 x Barrel Input

Other I/O 1 x LANC (2.5 mm) Input
  1 x Serial (USB Type-C) Input
  1 x Gigabit Ethernet (RJ45) Input

Media/Memory Card Slot  None

SIM Card Slots  None

File System Support exFAT

Encryption None

Wireless

Wireless Range 0.2 Miles / 300 m
49.2′ / 15 m (Line-of-Sight)

# of Channels 12

Latency None

Wi-Fi Wi-Fi 6 (802.11ax)

Bluetooth Not Specified by Manufacturer

Format Support

Video Format  HDMI/SDI (8/10-Bit 4:2:2/4:2:0 YCC)
  DCI 4K: 60
  UHD 4K: 60
  DCI 2K: 60
  1080p: 120
  1080i: 60/50
720p: 60

Audio Format 24-Bit 48 kHz PCM Audio

Timecode Support Yes

Power

DC Input Power 6.2 to 16.8 VDC

Built-In Battery None

Battery Type 1 x L-Series

Mounting

Mounting 3 x 1/4″-20 Female
 3 x 3/8″-16 Female

Environmental

IP Rating  None

Operating Temperature  104°F / 40°C

General

Material of Construction Aluminum, Polycarbonate

Dimensions 7.8 x 5.2 x 1.6″ / 198 x 133 x 40 mm

Weight 1.6 lb / 730 g



Atomos SHOGUN CONNECT 7″ Network-Connected HDR Video Monitor & Recorder 8Kp30/4Kp120

• AtomX SSD Mini Handle
• MasterCaddy III with Screws
• Wi-Fi Antenna
• RF Antenna
• Antenna Storage Pouch
• Antenna Colored Caps
• Antenna Mount Covers
• 3.5mm Audio Cable
• Power Supply
• Screen Cloth
• Protective Pouch (7″)
