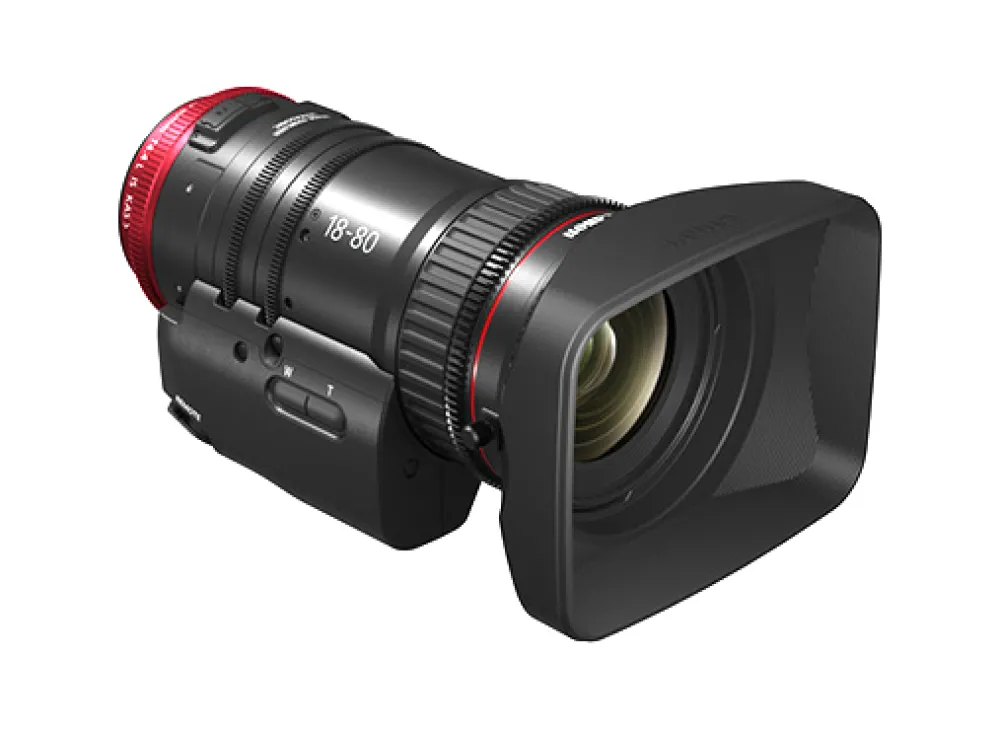

Canon Telephoto Zoom | CN-E 18-80mm T4.4 COMPACT-SERVO Cinema Zoom Lens

Focal Length  18 to 80mm

Lens Mount  Canon EF

Format  Super35/APS-C

Image Circle  31.4 mm

Maximum T-Stop  T4.4

Maximum F-Stop  f/4

Diagonal Angle of View  Super 35: 80.5 to 21.1°

Minimum Focus Distance  From : 1.6′ / 0.5 m

Iris Blades  9

Front Diameter  84 mm

Filter Thread  77 mm

Zoom Ratio  4.4x

Dimensions (W x H)  3.7 x 4.2″ / 94 x 106.7 mm

Length  7.2″ / 18.23 cm

Weight  2.6 lb / 1.2 kg

Lens Design

• Covers Super 35 / APS-C formats
• 18 to 80mm focal range (4.4x zoom ratio)
• Constant T4.4 (f/4) aperture
• Parfocal design to maintain focus during zoom
• Minimized focus breathing
• Cine-standard 0.8 MOD focus gear ring
• 0.5 MOD iris and zoom gear rings
• Focus ring rotates 180°
• Matching color characteristics to existing CN-E lenses
• 9-blade iris
• Iris closing
• Compact and lightweight design

Servo Control

• Servo Control Capability for all zoom, focus and iris
• Power provided via camera mount (from compatible cameras)
• Compatible with broadcast-style servo lens controllers, such as Canon ZSD-300D and FPD-400D
• Optional ZSG-C10 Grip for ENG-style control and shoulder mount applications

Functionality with Cinema EOS Cameras

• Auto focus function (Continuous AF, One-Shot AF, Focus Guide)
• Image Stabilization
• Remote control of zoom, focus and iris via camera
• REC start/stop from ZSG-C10 Grip
• Peripheral illumination correction
• Chromatic aberration correction
• Lens metadata record
• T-stop/F-stop number display select





What’s in the Box: Canon CN-E 18-80mm T4.4 COMPACT-SERVO Cinema Zoom Lens (EF Mount)
