Canon Tilt / Shift Lens | 17mm f4L Lens TSE (Tilt Shift)

OVERVIEW

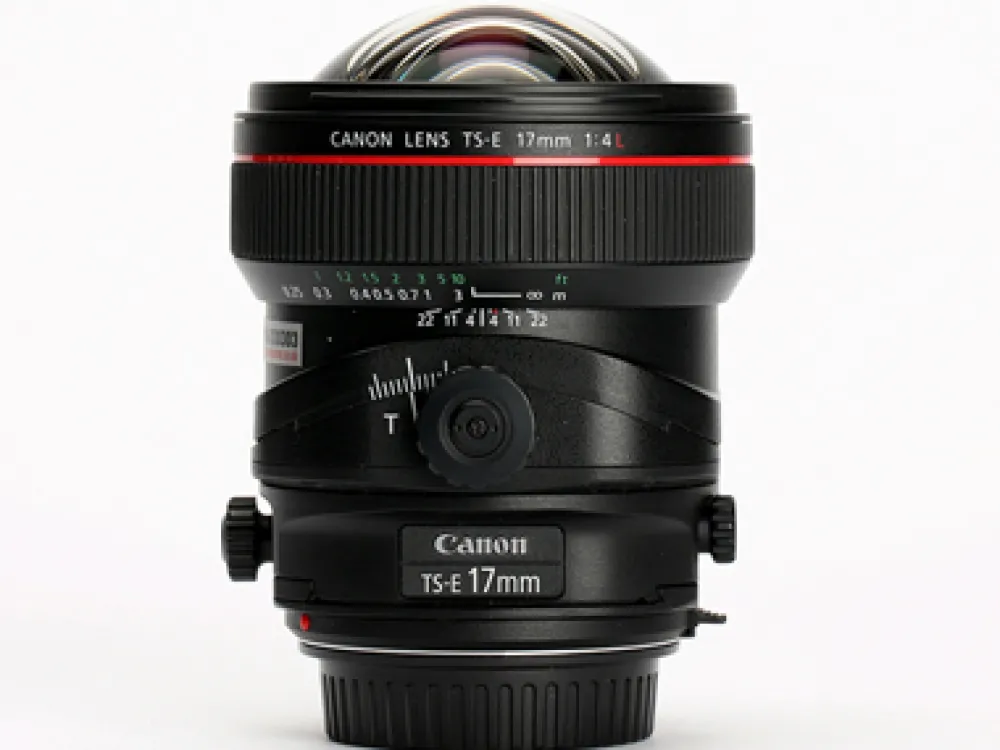

The TS-E 17mm f/4L Tilt-Shift Lens from Canon is an ultra wide-angle manual focus lens for EF mount cameras with a 104º diagonal angle of view on full frame cameras. It is the widest tilt-shift lens in the Canon lineup and provides tilt-shift functions to control perspective and correct convergence of lines within your frame. It is especially useful in architecture, landscape, and product photography. The optical tilt mechanisms enable precise control of depth of field along with perspective control.

The tilt-shift function on the 17mm f/4 lens allows adjustment of the focal plane by an angle of +/-6.5º and enables parallel shift of the optical axis by +/-12mm. Both tilt and shift can be engaged singly and in combination. The tilt-shift rotation mechanism locks at right angle and at parallel and clicks at 45º and the lens mount itself can rotate left or right by 90º with click-stop adjustment each 30º.

Being a Canon L-series lens, its optical design and physical structure are optimal. Aspherical and ultra-low dispersion lens elements suppress aberrations and provide sharp delineation. Subwavelength Structure Coating (SWC) reduces ghosting and flare and truly circular diaphragm results in pleasing out-of-focus backgrounds. The focus ring on the lens provides precise manual focus action and the improved tilt and shift knobs are sturdy and smoothly control the mechanisms.

SPECIFICATIONS

Focal Length 17mm
Comparable APS-C 1.6x Focal Length  27.2 mm
Aperture Maximum: f/4Minimum: f/22
Camera Mount Type Canon EF
Format Compatibility 35mm Film / Full-Frame Digital SensorCanon (APS-C)
Angle of View 104°
Tilt/Shift Tilt ± 6.5° in 1° incrementsShifts ± 12mm in 1mm increments
Minimum Focus Distance 9.84″ (25 cm)
Magnification 0.14x
Maximum Reproduction Ratio 1:7
Elements/Groups 18/12
Diaphragm Blades 8
Image Stabilization No
Autofocus No
Tripod Collar No
Filter Thread None
Dimensions (DxL) Approx. 3.5 x 4.2″ (8.89 x 10.67 cm)
Weight 1.80 lb (820 g)
