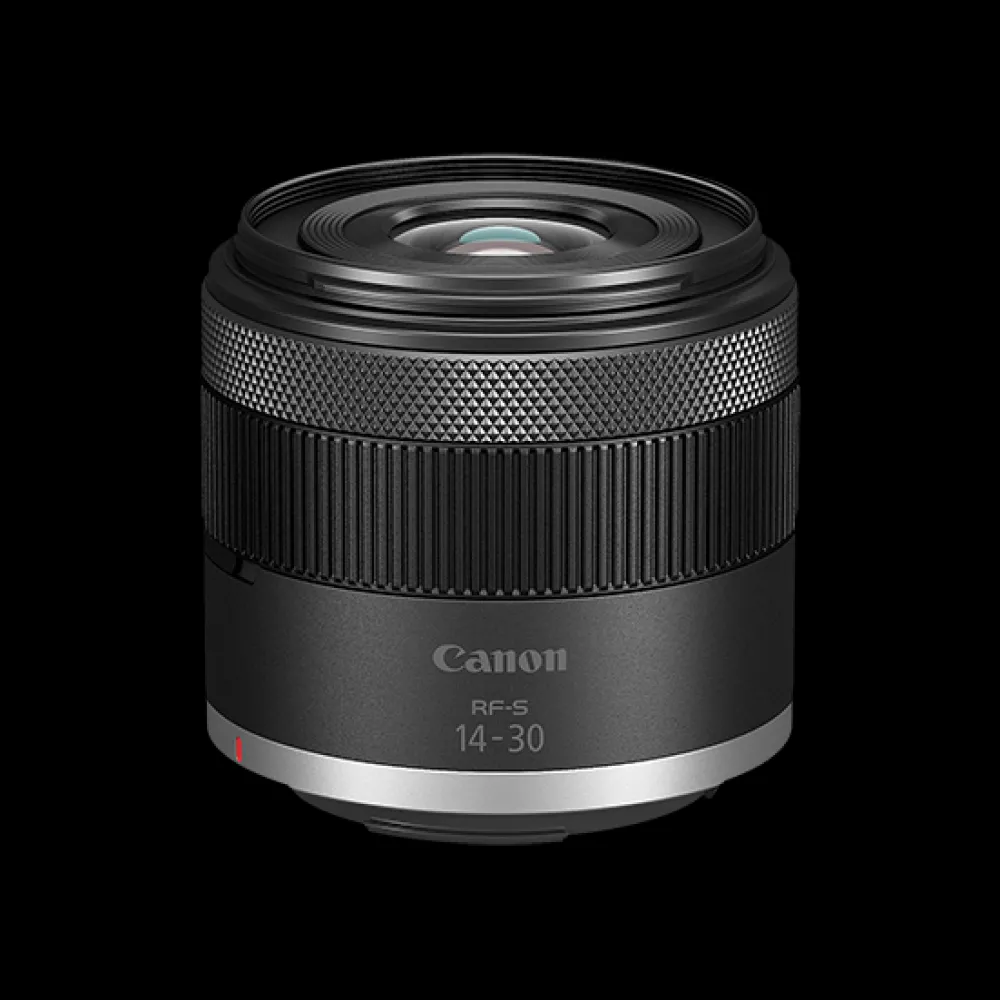

Canon Wide Angle Zoom | RF-S 14-30mm F4-6.3 IS STM PZ Lens

Outstanding Image Quality

The RF-S14-30mm F4-6.3 IS STM PZ features 1 UD element, and 2 aspherical lenses which achieves high image quality throughout the image from center to the edges while maintaining compactness. Even at its widest zoom setting, both optical and digital corrections combine to minimize any risk of darkening at the edges or bending of straight lines in a scene.

Get Up Close

Capture subjects in large detail with a maximum magnification of 0.38x (focusing down to 5.9 inches). This enables richly expressive close-up shots using the wide angle of view and bokeh an ultra-wide-angle lens can provide.

Optical Image Stabilization — Up to 5.0 stops¹ of Shake Correction

To shoot with less blur even without a tripod handy, the RF-S14-30mm F4-6.3 IS STM PZ features built-in Optical Image Stabilization, providing up to 5.0 stops of shake reduction even for night shots. When paired with an EOS R-mount camera that has In-Body Image Stabilization (IBIS), the Coordinated IS provides an IS effect of 7.5 at the center, and stops and 5.5 stops in the corners.

High-speed, Smooth and Quiet Autofocus

The lens features a leadscrew-type STM focus drive system which provides smooth and natural AF. This is especially beneficial to video users because of its combination of quiet operation and outstanding smoothness of focus changes during actual recording.

Focal Length  14mm – 30mm

Maximum and Minimum Aperture  F4 – F6.3 – F22 – F36

Lens Mount Type  RF Mount (Plastic)

Compatible Cameras  Canon EOS R-series, APS-C and full-frame

Minimum Focusing Distance  0.15m (9.4 in)

Maximum Magnification  0.38x (at 30mm)

Field of View, at Minimum Focus Distance  Approx. 126 × 84mm (7.2″ x 4.8″) at 14mm; Approx. 57 × 38mm (7.2″ x 4.8″) at 30mm

Angle of View (Diagonal)  Approx. 88º 30’ – 48º 50’

Lens Construction  10 elements in 9 groups

Special Elements  One UD Lens, Two Aspheric Lenses

Lens Coating  Canon SSC (Super Spectra Coating)

Filter Size Diameter  ø58 mm

Aperture Blades  7

Image Stabilization (yaw/pitch directions)  Provided via gyro sensors (1 each for yaw and pitch)

Focusing Drive System  Two Nano USM focus motors

Full-time Manual Focusing  Yes (Supports both ONE SHOT AF and SERVO AF with compatible EOS R-series cameras)

Dual Pixel CMOS AF Coverage (Horizontal x Vertical)  EOS R – Approx. 88% x 100%

EOS R5 / R6 – Approx. 90% x100%

EOS R7 / R10 / R50 – Approx. 100% x 100%

Control Ring  Provided, with click-stops

Manual Focus Ring  Electronic ring system

• Full-time Manual focus possible
• No physical limit to ring rotational angle

AF / MF Switch  Provided

Power Zoom control ring  Provided

Iris Ring  Not Provided

Lens Function Button  Not Provided

Distance Scale  Not Provided

Distance Limiter Switch  Not Provided

Dust / Weather Resistant Construction  Not Provided

Maximum Outer Diameter x Length  Approx. ø2.7 in. x 2.4 in. (ø69.6mm x 62mm)

Weight  Approx. 6.3 oz. / 0.4 lb. / 181 g

RF-S 14-30mm F4-6.3 IS STM PZ

• Lens Cap
• Dust Cap RF
• Lens Hood
