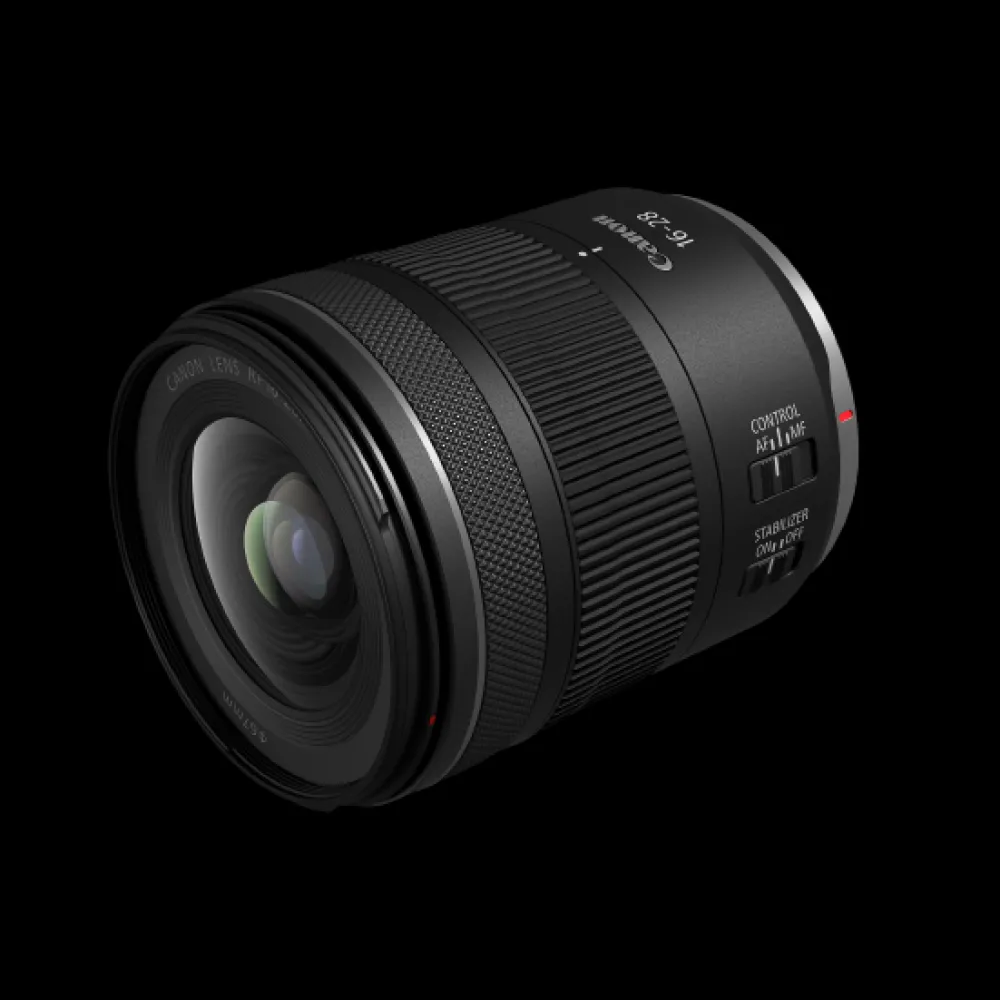

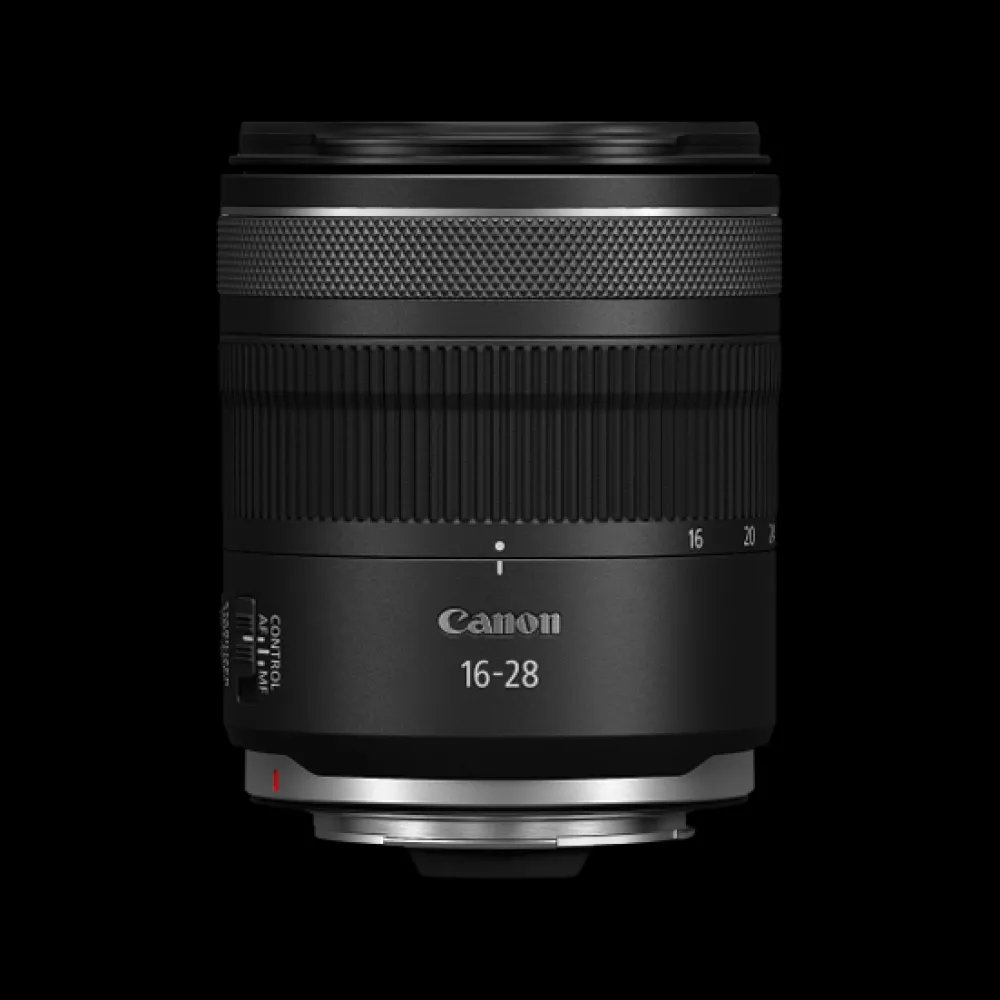

Canon Wide Angle Zoom | RF16-28mm F2.8 IS STM

The RF16-28mm F2.8 IS STM lens is perfect for both still and video content creators who desire high image quality and constant aperture at a more affordable price point than traditional L-series products. This lens is now the smallest, lightest RF zoom lens with image quality equivalent to a Canon L-series specification. For still image creators this light and compact lens weighing in at just over one pound will be a “take anywhere” kind of lens. Offering a fast F2.8 aperture throughout the zoom range, photographers can work in low light situations or take creative control and blur the foreground and background with wide apertures not possible entry-level wide-angle lenses. Pairing this lens with the current RF28-70mm F2.8 IS STM gives you incredible zoom range coverage while maintaining high image quality.

Small size and Conveniently Portable

This lens accomplishes the incredible feat of being a fixed aperture zoom lens that you can actually carry around all day without wearing your arm out. The retracting design and a small focus element make the lens lightweight and portable. Taking advantage of the benefit of electronic distortion correction, this large-aperture zoom lens with a fixed F2.8 aperture achieves both high image quality across the entire image and efficiently with a compact optical system.

High-image quality and optical design

There is a lot that contributes to the optical quality of this lens, and it starts with four Ultra-low Dispersion (UD) elements (marked as dark green). The large-diameter UD lens at the front is a unique configuration previously found only in L lenses. This configuration effectively corrects chromatic aberration, reduces the weight of the front lens group, and contributes to ease of use by suppressing the change in the center of gravity felt by the user when changing the zoom range. Two glass-molded aspherical lenses (marked as light green) are effectively placed to achieve high rendering performance with suppression of various aberrations and contributes to the lenses compact size. The lens provides clear, high-resolution images from the maximum aperture. This design also features dust- and weather-resistant construction (another feature borrowed from the L-series lens line).

Action!

This lens is for more than just still shots, your video adventures and productions will benefit as well. The leadscrew-type STM focusing motor is extremely quiet and the 16mm-28mm zoom range is great for vlogging at home, or filming on the street. Focus breathing is also well controlled with this lens, lending even more professionalism to your productions.

Get close

An ultra-wide angle lens can do so much more than capture large spaces. With a minimum focus distance of 7.9 inches (at 28mm), you can really get creative with the look of your images.

Image Stabilization*

Combining 5.5 stops of in-lens image stabilization with a camera equipped with an in-body stabilizer achieves a coordinated control effect of 8.0 stops of shake correction at the center of the image, and 7.5 stops at the corners, making Hand-held shooting in low-light conditions possible.

* Focal length of 28mm using an EOS R1; Yaw/Pitch/Roll axes

Bokeh

Even with a zoom lens, the foreground and background can be blurred softly and significantly. This constant F2.8 lens provides rich bokeh at every focal length. The ability to open the aperture also allows for faster shutter speeds, preventing blurring of the subject.

Focal Length  16 – 28mm (APS-C – equivalent to 25.6 – 44.8mm coverage)

Maximum and Minimum Aperture  F2.8 – F22

Lens Mount Type  RF Mount (Metal Mount)

Compatible Cameras  Canon EOS R-series, full-frame and APS-C

Minimum Focusing Distance  At 16mm: 0.25m / 0.82 ft.

At 28mm: 0.2m / 0.66 ft.

Maximum Magnification  At 16mm: 0.11x

At 28mm: 0.26x

Field of View, at Minimum Focus Distance At 16mm: Approx. 318.2 mm × 212.1 mm (12.5″ x 8.4″)

  At 28mm: Approx. 138.3 mm × 92.2 mm (5.4″ x 3.6″)

Angle of View (Diagonal)  Approx. 108º 10″ – 75º

Lens Construction  16 elements in 13 groups

Special Elements  Four UD Lenses, and Two Aspherical Lenses

Lens Coating  SSC (Super Spectra Coating)

Filter Size Diameter  ø67mm

Aperture Blades  9

Image Stabilization  Provided

Lens alone: 5.5 stops correction

Coordinated IS, with IBIS: 8.0 stops (at center); 7.5 stops at corner

Focusing Drive System  STM (Stepping Motor)

Full-time Manual Focusing  Yes

Supports both ONE SHOT AF and SERVO AF with compatible EOS R-series cameras)

Dual Pixel CMOS AF Coverage (Horizontal x Vertical)

EOS R/Ra/RP approx 88%x100%

EOS R5/R6  approx 100%x100% w/face tracking priority

EOS R5/R6  approx 90%x100% when subject not detected

EOS R1/R3/R5 MK II, R6 MK II, R8  approx 100%x100% with face tracking priority

EOS R1/R3/R5 MK II, R6 MK II, R8  approx 100%x100% when subkect not detected

EOS R7/R10/R50  approx 90%x100% with face tracking, also when subject not detected

EOS R100  approx 88%x100%



Control Ring Combined with Control Ring (user-selectable)

Manual Focus Ring  Not Provided

AF / MF Switch AF / CONTROL / MF Switch Provided

Iris Ring  Not Provided

Lens Function Button  Not Provided

Distance Scale  Not Provided

Distance Limiter Switch  Not Provided

Dust / Weather Resistant Construction  Yes

Maximum Outer Diameter x Length  Approx. ø3.0 in.

  x 3.6″ (91mm) (Retracted)

  x 4.4″ (112.8 mm) at 16mm

  x 4.0″ (102.1 mm) at 28mm

Weight  Approx. 1.0 lb. / 445g

***Extension Tubes Not compatible

Close-up Lenses 250D / 500D  Not compatible

Canon RF Extender 1.4x / 2x  Not compatible

Canon Gelatin Filter Holder III / IV  Not compatible

Rear Gelatin Filter Holder  Not compatible



RF16-28mm F2.8 IS STM

• Lens Cap E-67II
• Dust Cap RF
