DJi Gimbals / Tripod Adapters / Plates | RS 4 Gimbal Stabilizer Combo

AT A GLANCE

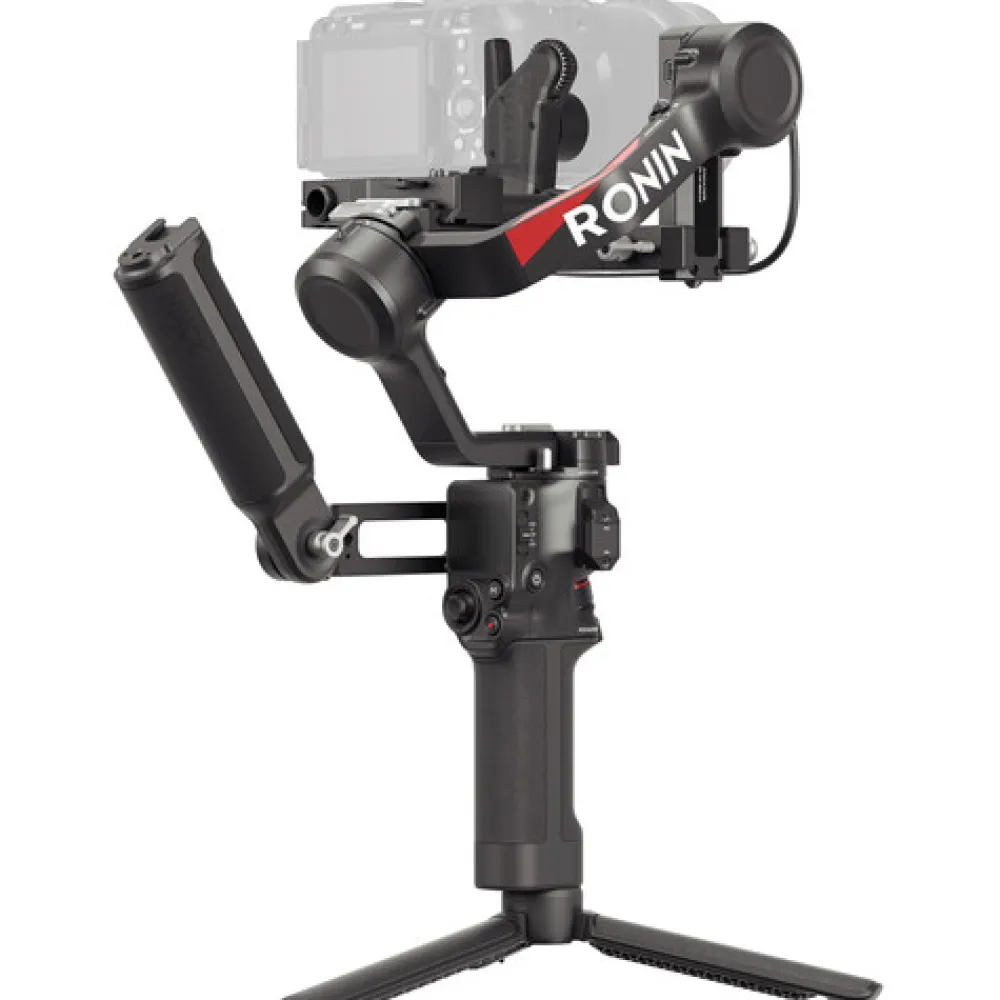

Enhanced operation efficiency, native vertical shooting, and an expanded accessory ecosystem make the DJI RS 4 Combo a powerful tool for the mirrorless camera shooter. The gimbal only weighs around 2.4 lb and sports a load capacity of 6.6 lb capable of supporting your compact camera build.The combo includes a Focus Pro Motor with a rod mount kit, a focus gear strip, a briefcase handle, and a carrying case. Teflon-coated axes reduce friction for a smoother balancing and operating experience. Other intuitive features include a fine-tuning knob, auto-locking OLED screen, and RSA communication port for use with expanded accessories.



Second-Generation Quick Release Plate Design

With the familiar dual-layered quick release plates of its predecessor, the RS 4 makes mounting and balancing your camera a breeze. The horizontal plate is newly designed for faster transitions to native vertical shooting. A fine-tuning knob adjusts the tilt axis to move your camera forward or backward. The upper plate has added placement guides for secure camera mounting.

Compatibility

For a full list of compatible cameras, please see the most current compatibility information on the DJI website.

Second-Generation Automated Axis Locks

When the gimbal is powered off, you can press and hold the power button, and the three axes unlock while the gimbal expands automatically, allowing you to start working in just two seconds. Press the power button once, and the axes automatically lock and enter sleep mode, making a move or storage significantly more efficient. The second iteration of this design has created smaller gaps when locked to further reduce gimbal shake.

RSA Communication Port

The RSA communication port allows you to integrate Ronin series accessories into your gimbal configuration. Add Ronin-specific or third-party accessories with control capabilities to switch between different shooting configurations. The DJI RS SDK protocol will allow third-party manufacturers and other developers to create future customized functions for the RS 4.

Wireless Shutter Control

By implementing Dual-Mode Bluetooth, the RS 4 supports wireless shutter control, saving time and effort with every use. After the initial Bluetooth pairing, you can control video and photo shooting by simply pressing the record button on the stabilizer. Previously paired cameras can automatically reconnect after the first use, eliminating the need for a camera control cable.

New DJI Focus Pro Motor

Pair the RS 4 with the new Focus Pro Motor using the designated USB-C port. The motor features a 30% increased speed and allows you to focus your lens via dial and zoom via joystick.

Integrated Controls

• By simply sliding the new gimbal mode switch, you can alternate between Pan follow, Pan and Tilt follow, and FPV modes. The FPV mode selection is also customizable to 3D Roll 360, Portrait, or Custom, allowing you to adjust your equipment and get started as fast as possible. Other intelligent features include motion-lapse, track, and panorama.
• The trigger button can be customized to FPV mode, which causes the three axes to follow the direction of the grip’s movement when held down.

Fourth-Gen RS Stabilization Algorithm

Empowered by a next-generation stabilization algorithm, the RS 4 provided enhanced stability over the RS 3, effortlessly managing vertical shooting, fast-paced movements, and low-angle shots.

Auto-Locking OLED Screen

The RS 4 is equipped with a fixed OLED touchscreen with a new auto-lock feature. Once locked, the screen will display the current gimbal and joystick moves at a low brightness to prevent accidental switching and conserve battery.

Integrated Monitoring and Control

Remotely adjust camera exposure directly in the Ronin app, or control the gimbal with the virtual joystick to get an integrated monitoring and control experience. With the Ronin Image Transmitter, a smartphone can be used as a motion controller to remotely control the RS 4 gimbal for more flexible and dynamic camera movements.

Enhanced Battery and Fast Charging

The RS 4 battery grip features a cartridge design, making it easier to swap batteries and smaller for storage. It can even be charged separately from the gimbal. The new battery grip provides an extended runtime of up to 12 hours, enough for continuous shooting all day. It supports 18W PD fast charging with a charge time of just 2.5 hours. It can even be used while charging to keep RS 4 powered almost indefinitely.

Load Capacity  6.6 lb / 3 kg

Number of Axes  3: Pitch (Tilt), Roll, Yaw (Pan)

Rotation Range Mechanical Range
Yaw (Pan): 360°
Pitch (Tilt): -112 to 214°
Roll: -95 to 240°

Follow Speed  Pan/Tilt/Roll: 360°/s

Inputs/Outputs  3x USB-C (Control / Video)
 1x USB-C (Power)

Wireless Frequency  2.4 GHz

Wireless Protocol  Bluetooth 5.0

Mobile App Compatible  Yes: Android & iOS
App Name: Ronin App

Battery Type  1x Built-In

Battery Capacity  3000 mAh / 21 Wh

Battery Runtime  12 Hours

Battery Charging Time  2.5 Hours

Battery Chemistry  Lithium-Ion Polymer (LiPo)

Voltage  7.2 VDC

Display Type  Fixed Touchscreen OLED

Materials  Aluminum Alloy

Mounting  1 x 1/4″-20 Female
 2 x NATO Rail

Dimensions  10 x 9.6 x 3″ / 255 x 245 x 75 mm (Folded)
 14.6 x 7.5 x 7.4″ / 370 x 191 x 189 mm

Weight  2.36 lb / 1.07 kg

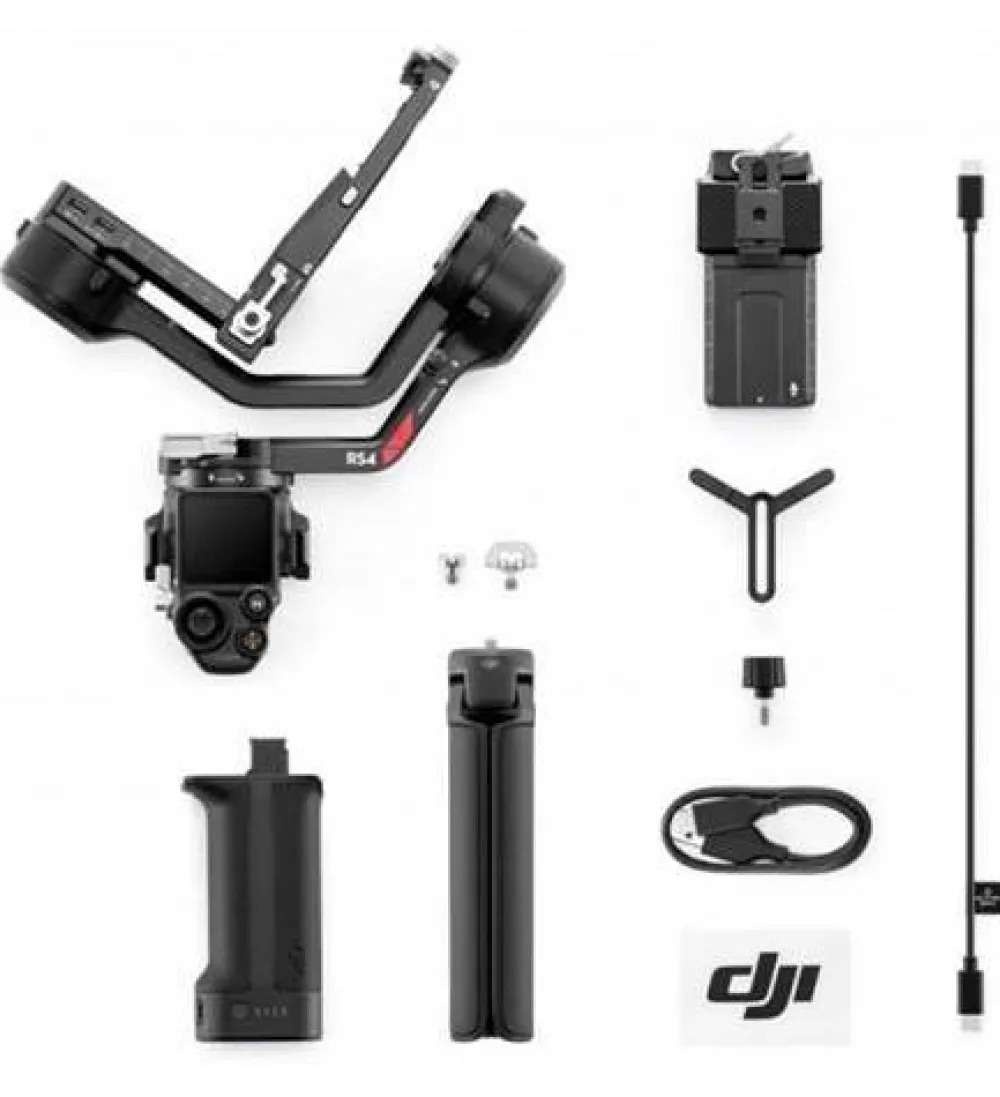

DJI RS 4 Gimbal Stabilizer
• DJI BG21 Grip for RS 3 Gimbal
• Quick Release Plate (Arca-Type/Manfrotto)
• Extended Grip/Tripod
• Lens Support
• USB-C Multi-Camera Control Cable (11.8″)
• USB-C Charging Cable (15.7″)
• Screw Kit
• Carrying Case
• DJI Focus Pro Motor
• DJI Briefcase Handle for RS Series
