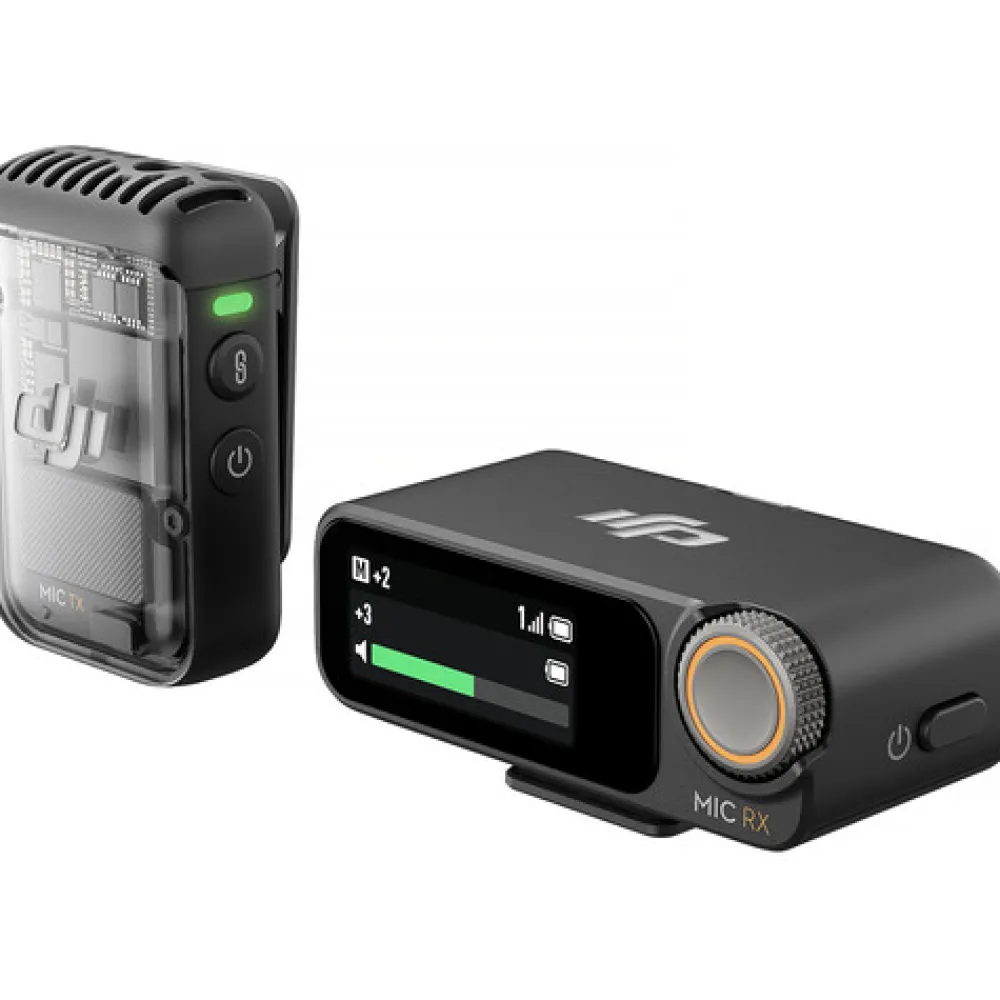

DJi Microphones / Headphones / Speakers | Mic 2 Compact Digital Wireless Microphone System

AT A GLANCE

• 1-Person Interviews, Videos, Streaming
• Connects to Cameras, iOS/Android Devices
• 1 x Clip-On Transmitter/Recorder Mic
• Compact Dual-Channel Receiver
• Intelligent Noise Cancelling
• Records 14 Hours of Audio
• 32-Bit Float Internal Recording
• Bright OLED Display, Headphone Out
• Built-In Rechargeable Batteries
• Up to 820′ Wireless Range

Content creators of all experience levels can raise the production values of their videos, interviews, and streaming with the DJI Mic 2, an easy-to-use, truly wireless digital microphone/recorder system that offers vivid audio quality while supplying all the elements needed to capture audio from your subject to a DSLR/mirrorless camera or iOS/Android smartphone. The system records clear and reliable audio at up to 820′ via a miniature clip-on omnidirectional mic/transmitter, which doubles as backup recorder for worry-free wireless. The tiny receiver can either be mounted on a DSLR camera or plugged directly into the Lightning/USB port of a smartphone or laptop. Simply complete the initial setup and you can be ready to record quality audio in seconds.

Second-Generation Updates

The new iteration of the Mic 2 features updated transmitter units with 2.4 GHz digital wireless and Bluetooth technology. Bluetooth allows you to connect the transmitters to your DJI Mimo app via iOS or Android device. You can even connect directly to your Osmo Pocket 3 or Osmo Action 4 camera. Toggle different settings via the Mimo app like intelligent noise cancellation, which reduces environmental noise for improved vocal capture or 32-bit float audio recording.

Wearable and Portable Microphones

• For a truly wireless experience, conveniently attach the transmitter to whatever you’re wearing via the integrated back clip (or by using the clip magnet) without having to wire yourself or your talent.
• You can also hold the transmitter in your hand and use it as a handheld microphone. Use the transmitter as a lavalier mic (no need for a separate mic), or operate it as a traditional bodypack transmitter by plugging an external lav mic (available separately).
• The built-in mic features an omnidirectional pickup pattern that ensures reliable speech capture, even if mic placement is less than ideal; your subject’s voice is captured with clarity, intelligibility, and consistency.
• One furry windscreen is provided to effectively suppress wind noise while still recording clear sound.
• Enjoy 6 hours of battery life on each component for 18 hours of recording in total.

High-Quality Audio with Flexibility for Postproduction

• DJI Mic 2 allows you to record high-fidelity, professional audio by accurately reproducing tone across a wide frequency range. To ensure that you are capturing a clean signal, you can monitor your sound via the receiver’s 3.5mm headphone output while recording.
• The Safety Track mode enables you to record a secondary audio track (in mono) as a backup with a lower volume of -6 dB (different from the main audio track), helping to safeguard your audio in case of unforeseen level spikes.

Built-In Recorder and Safety Track

• The transmitter has onboard recording capabilities with 8GB of storage for up to 14 hours of 48 kHz 24-bit backup recording. This allows you to record audio directly to the transmitter as a backup in case of wireless interference and dropouts. You can also use the transmitter as a standalone recorder.
• Files are in 48 kHz/24-bit mono WAV format and can be transferred to your computer via the USB-C cable. Toggle 32-bit float recording via Mimo app.

Reliable and Secure Wireless with Encryption

• The DJI Mic 2 is capable of recording crisp audio at distances of up to 820′ using DJI’s encryption technology for secure communications.
• The optimized wireless transmission system ensures a stable and reliable stream of audio, even in busy areas, such as train stations, shopping malls, and offices.
• The system avoids interference from TV and radio waves by operating in the 2.4 GHz frequency band, which occupies frequencies beyond those of television, radio transmissions, and UHF wireless microphone systems.

Easy to Operate

• The receiver features both a built-in, expanded OLED touchscreen and onboard dial for easy configuration.
• View and adjust volume, gain, and channels to find the perfect settings of your surroundings. Battery life, recording status, and wireless signal strength are also displayed.
• An internal motor sends clear haptic feedback during key operations like powering on or off, internal recording, muting and unmuting, and noise cancellation activation or deactivation.

Vastly Compatible

If you want to use the DJI Mic 2 with a smartphone, just insert either the Lightning or USB-C adapter into the expansion port at the bottom of the receiver and connect it to your phone and start shooting. These adapters support stereo audio playback without needing to unplug the receiver. Use the 3.5mm TRS cable to connect the camera’s 3.5mm mic connector to the receiver’s 3.5mm audio-output connector and start filming on your camera. The 3.5mm adapter supports automatic power on/off in sync with the power status of your camera.



SYSTEM

Wireless Technology  Digital 2.4 GHz

Included Transmitters  1 x Clip-On with Microphone

Diversity  Non-Diversity

RF Frequency Band  2400 to 2483.5 MHz

RF Channel Scanning  Auto-Scan

Max Operating Range  820.2′ / 250 m (Line of Sight)

Max Transmitters per Band  2

Built-In Recorder  Yes

Timecode Support  No

Mobile App Compatible  Yes: Android & iOS
App Name: DJI Mimo

Bluetooth  Not Specified by Manufacturer

Sample Rate/Resolution  48 kHz / 24-Bit

Encryption  Proprietary

Modulation  GFSK

THD  <0.1 %

Receiver

Receiver Type  Camera-Mount / Plug-In (Lightning) / Plug-In (USB-C) / Plug-In (1/8″ / 3.5 mm TRS)

Mounting Options  Plug-In, Shoe-Mount (with Included Hardware)

Antenna  Internal

Number of Audio Channels  2

Audio I/O  1 x 1/8″ / 3.5 mm TRS Female Unbalanced Output
 1 x 1/8″ / 3.5 mm TRS Female Unbalanced Headphone Output

Audio Output Level  -12 to +12 dB

Signal Processing  High-Pass Filter:
150 Hz

Frequency Response  50 Hz to 20 kHz

Network I/O  No

Word Clock I/O  No

USB/Lightning Connectivity  1 x Lightning Male (Audio)
  1 x USB-C Male (Audio)

USB Class-Compliant  Yes

RF Output Power  100 mW (EIRP)

Power Requirements  Battery

Battery Type  1 x Built-In Rechargeable

Internal Battery Capacity  320 mAh

Battery Charging Time  70 Minutes

Approx. Battery Life  6 Hours (Lithium Rechargeable)

Display & Indicators  OLED Touchscreen (Battery Status, Channel, Level, Menu Navigation, Transmitter Battery Status)

Operating Temperature  14 to 113°F / -10 to 45°C

Dimensions  2.1 x 1.1 x 0.9″ / 54.2 x 28.4 x 22.5 mm

Weight  1 oz / 28 g

Transmitter

Transmitter Type  Clip-On with Microphone

RF Output Power  100 mW

Audio I/O  1 x 1/8″ / 3.5 mm TRS Female Input

Pad  No

Muting  No

Auto-Level Control  No

Recorder Sample Rates  48 kHz

Recorder Bit Depths  24 / 32-Bit Float

Audio File Formats  WAV

Signal Processing  No

Frequency Response  50 Hz to 20 kHz

Sync Method  Proprietary

Antenna  Internal

Power Requirements  Battery

Battery Type  1 x Built-In Rechargeable

Internal Battery Capacity  320 mAh

Battery Charging Time  70 Minutes

Approx. Battery Life  6 Hours

USB/Lightning I/O  USB-C

Display & Indicators  No

Operating Temperature  14 to 113°F / -10 to 45°C

Dimensions  1.8 x 1.2 x 0.9″ / 46.1 x 31 x 21.8 mm

Weight  1 oz / 28 g

Microphone

Microphone Type  Integrated

Sound Field  Mono

Capsule  Electret Condenser

Polar Pattern  Omnidirectional

Frequency Range  50 Hz to 20 kHz

Equivalent Noise Level  21 dB A-Weighted

Maximum SPL  120 dB SPL

Recharge Time  2.7 Hours

Battery Chemistry  Lithium-Ion

Charging Interface  USB-C

DC Input Power  5 VDC at 3 A

Dimensions  4.6 x 2.4 x 1.6″ / 116 x 59.7 x 41.5 mm

Weight  7.1 oz / 200 g

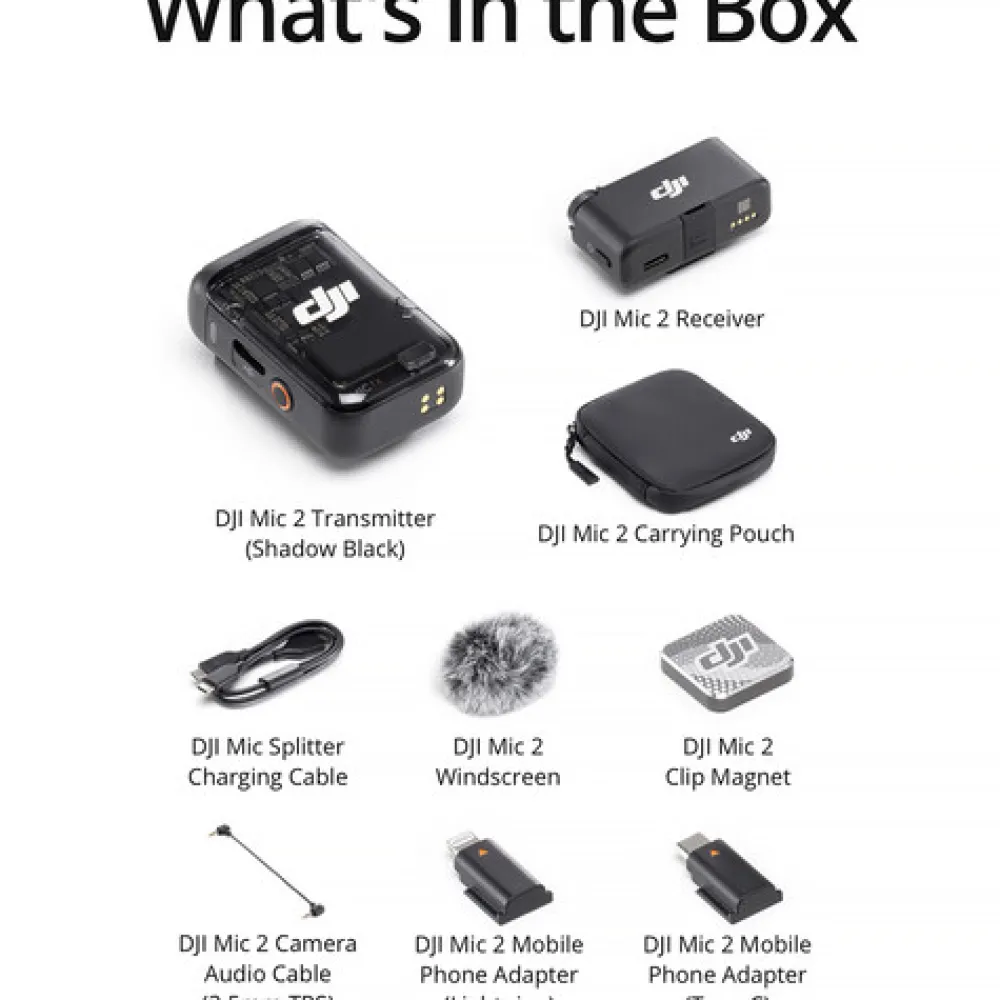

1 x DJI Mic 2 Clip-On Transmitter/Recorder with Built-In Microphone (2.4 GHz, Shadow Black)Camera-Mount ReceiverDJI Charging Case for Mic 21 x Windscreen3.5mm TRS CableUSB-C Mobile Phone AdapterLightning Mobile Phone AdapterSplitter Charging Cable1 x Clip MagnetCarrying Bag
