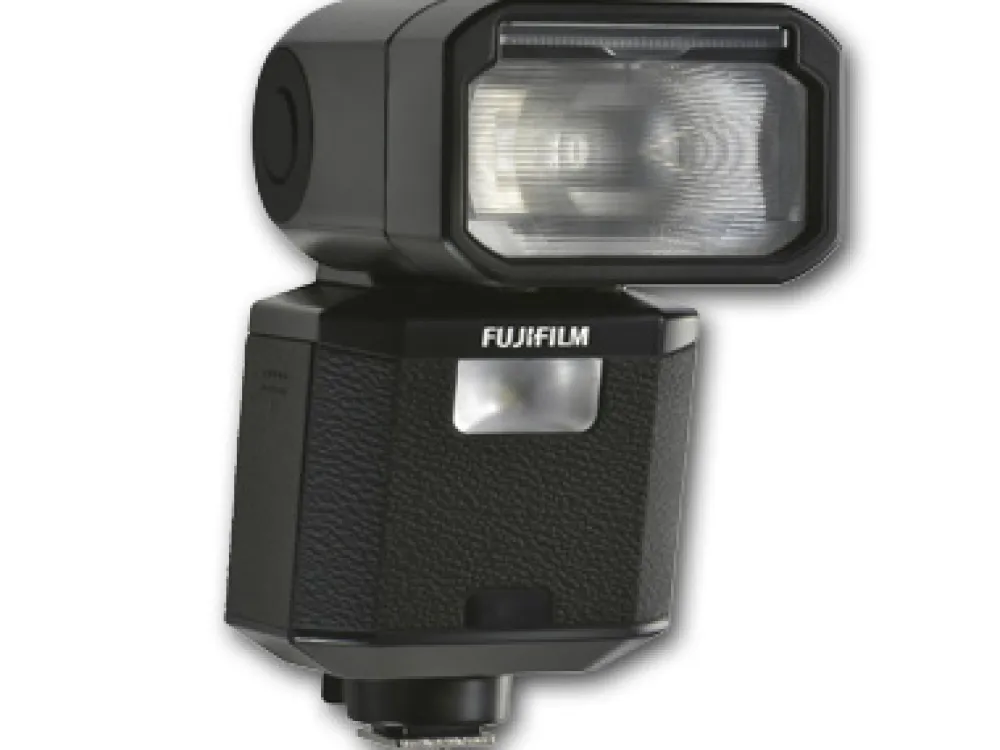

Fujifilm On-Camera Flash | EF-X500 TTL Flash

AT A GLANCE

• Compatible with Fujifilm TTL
• Guide Number: 164′ at ISO 100 and 105mm
• Zoom Range: 24-105mm (20mm with Panel)
• LED Video Light
• Tilts from -10 to 90°
• Rotates Left 135° & Right 180°
• Wireless Master/Slave TTL Functionality
• Multi Flash Mode; High-Speed Sync
• Weather-Resistant Construction
• Runs on Four AA Batteries

DESCRIPTION

Take advantage of high-speed sync, wireless control and triggering, and other advanced flash capabilities with the Fujifilm EF-X500 Flash for X-series cameras. Featuring a lower profile, this weather-resistant flash is compatible with Fuji’s TTL system, and a great option for the company’s compact mirrorless cameras. It offers a powerful guide number of 164′ at ISO 100 and 105mm settings as well as a zoom range of 24-105mm, equivalent to 16-70mm in APS-C lenses. A pull-out diffuser is available for expanding coverage to wider 20mm, or 10mm APS-C lenses. In keeping with hybrid stills/video camera designs, and offering an alternative fill light option to the pull-out bounce card built into the flash, is an LED light.

For bounce lighting, the EF-X500 can tilt from -10 to 90° and offers rotation left 135° and right 180°. A major addition to this flash is full wireless master and slave TTL functionality. It uses optical pulse communication to trigger and control remote EF-X500 flashes set up in one of four channels and within three groups. Additionally, the flash has a multi flash stroboscopic mode and runs on four AA batteries.

• Powerful guide number of 164′ at ISO 100 and 105mm
• Zoom range of 24-105mm in 35mm terms, or 16-70mm for APS-C format
• Pull-out diffuser offers support for 20mm optics and pull-out bounce card helps provide additional fill light
• Daylight-balanced colour temperature of 5600K
• High-speed sync possible with select cameras
• Manual power control of 1/1 to 1/512 in 1/3 stop steps
• Multi repeating flash mode with setting of 1-500 Hz for 2-100 flashes
• Flash exposure compensation of -5 to +5 EV in 1/3 EV steps
• Requires master EF-X500 on the camera body for wireless operation
• Optical pulse communication has four channels and three groups
• Runs on four AA batteries of EF-BP1 battery pack

Compatible with: GFX100 / GFX100S / GFX 50S / GFX 50R / X-H1 / X-Pro3 / X-Pro2 / X-T4 / X-T3 / X-T2 / X-T1 / X-S10 / X-T30 / X-T20 / X-T200 / X-E4 / X-E3 / X100V / X100F cameras

SPECIFICATIONS

Mount Shoe
Guide No. 164.04′ (50 m) ISO100 at 105 mm position
Exposure Control Manual, TTL
Vari-Power 1/1 – 1/512
Bounce Head -10° to 90°
Swivel Head 315°
Coverage 20 mm – 105 mm (Full frame)
Zoom Head Full frame: 24 mm – 105 mm
Flash-Ready Indicator Yes
Compensation -5 EV to +5 EV (in 1/3 EV steps)
Wireless Operation Method Optical pulse
Wireless Communication Channels 4 Channels
Wireless Groups 3 Groups
Power Source 4x AA Alkaline, Lithium, Rechargeable NiMH Batteries
Dimensions (WxHxD) 2.7 x 4.9 x 4.2″ / 67.5 x 123.9 x 106.0 mm
