Manfrotto Tripods / Heads | 500 Fluid Video Head Flat Base w/504PLONG plate

AT A GLANCE

• 11 lb Weight Capacity
• Wide Platform for HDSLRs
• Side Lock System for Safer Mounting
• Aluminium Alloy Construction
• Spring-loaded Counterbalance
• Includes Long Quick-release Plate
• 1/4″ and 3/8″ Camera Attachment
• Additional 3/8″ Accessory Connection

DESCRIPTION

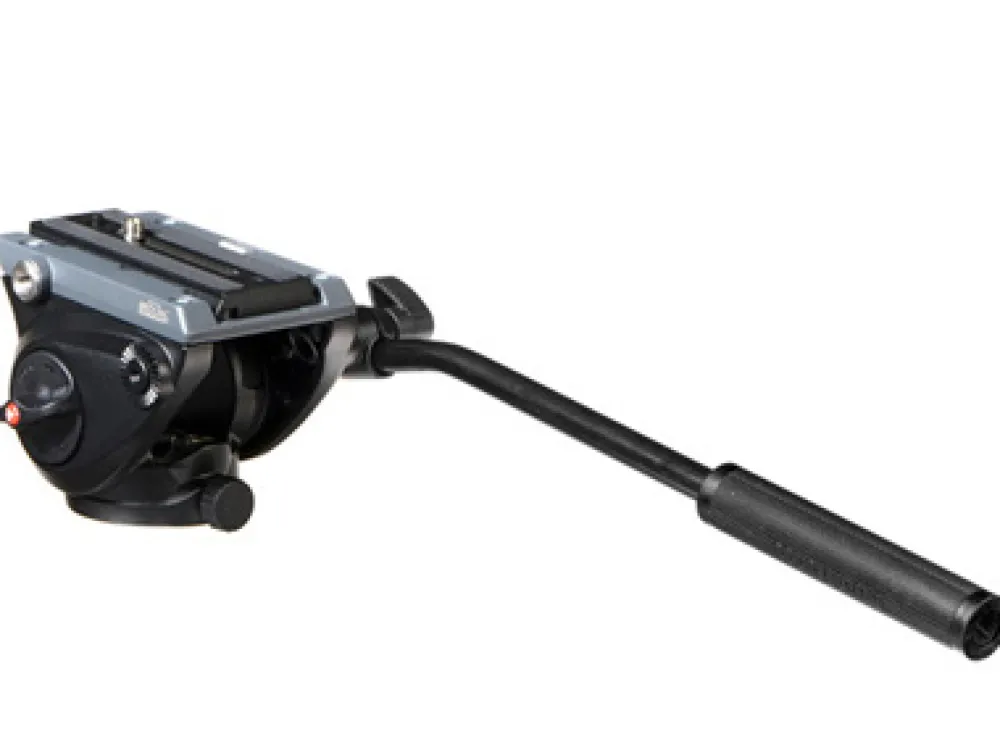

The MVH500AH Fluid Video Head with Flat Base from Manfrotto is designed with a wide platform, optimal for HDSLR camera bodies. Smooth and precise, it has a maximum weight load of 11 lb and professional quality fluid cartridges on both its pan and tilt axes. It has a pre-set spring-loaded counterbalance of 5.3 lb, its lateral tilt range is -70°/+90° and it provides 360° panning rotation.

The side lock system on the MVH500AH allows the camera and sliding QR plate to click quickly into the head from above, instead of needing to be aligned and slid in from the back. This makes it easier and safer to mount your camera on this head. The head attaches to a tripod via a 3/8″-16 thread and includes a 500PLONG sliding balance plate with a captive 1/4″-20 tie-down screw and a 3/8″-16 adapter bushing. It also provides an Easy Link 3/8″ connector on the side of the head to attach accessories such as a video monitor.

The MVH500AH is made from aluminum alloy, measures 3.74″ high and provides a bubble level and precision control handle.

• Wide platform fluid pan video head ideal for HDSLR cameras
• 5.3 lb pre-set spring-loaded counterbalance system
• Side-lock system for easier and safer camera mounting
• Aluminium alloy construction
• Includes long quick-release plate
• 11 lb maximum weight capacity

SPECIFICATIONS

Construction Aluminum Alloy
Load Capacity 11lbs (5kg)
Diameter/Thread1/4″-20 and 3/8″-16
Base Mount Thread Size 3/8″
Counter Balance System Yes
Counter Balance Range Pre-set to 5.3 lb (2.4 kg)
Quick Release/Wedge Plate Yes – 500PLONG
Tilt Drag Yes – fluid cartridge with fixed drag
Tilt Range -70°/+90°
Tilt Lock Yes
Spring Loaded Counter Balance Yes
Pan Range 360º
Pan Lock Yes
Pan Bar 1 – included
Leveling Bubble/Illuminated Yes/No
Temperature Range -4 – 140º F (-20 – 60º C)
Height 3.74″ (9.5 cm)
Weight 1.98 lb (0.9 kg)
Package Weight 3.5 lb
Box Dimensions (LxWxH) 14.5 x 6.6 x 6.3″

Manfrotto MVH500AH Fluid Video Head with Flat Base
• 500PLONG Quick Release Plate
• Handle
