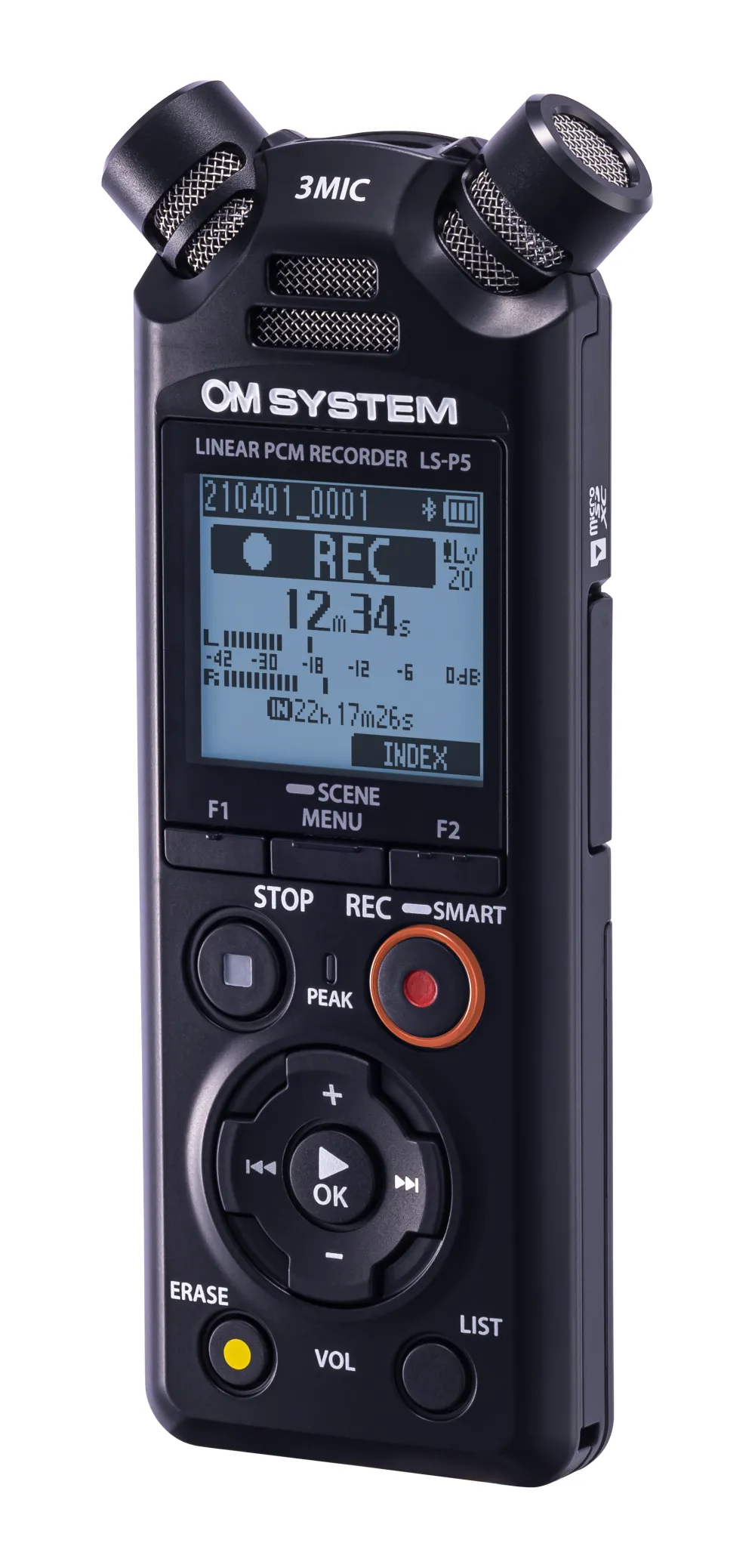

OM System Video Accessories | LS-P5 Linear PCM Recorder

Features:

• 3 Directional Microphones (Tresmic II)

• 96kHz/24-bit Hi Res Audio

• PCM, FLAC and MP3 recording

• Auto (Smart Mode) and Manual Level Settings

• Noise Cancelling Mode

• Bright Sound mode offers clearer recordings of the spoken word

• Low Cut filter removes low frequencies from audio to reduce ambient noise

• Built in Bluetooth to monitor and control recording at a distance of up to 32 feet

SPECIFICATIONS

Microphone  3 Directional Microphones

High Quality Sound  Tresmic II

Max Sound Pressure Level  125dBspl (1% distortion)

Recording Format PCM / MP3 / FLAC

Playback Format  PCM / MP3 / FLAC

Internal Memory  16GB (+microSDHC/microSDXC external)

Over Dubbing Function  Yes

Signal to noise ratio  Line input 92dB
  built-in microphone (stereo)  57dB
  built-in microphone (center)  60dB

Level adjustment with pre-recording  Yes (SMART mode)

Automatic sensitivity adjustment  Yes

Manual recording level setting  Yes

Recording level setting (external microphone)  Yes

Limiter/Compressor  Limiter (music/voice)

Pre-recording function  Yes

VCVA  Yes

Recording monitor ON/OFF  Yes

Noise reduction filter  Low cut filter

2-mic noise cancelling  Yes

Sound Effect (while recording)  Yes (Bright sound)

Zoom microphone  Yes

Microphone select (ON/OFF for center microphone) Yes (works with directional adjustment, Off when directional set to 00)

REC SCENE  9 types
 Lecture/Conference/Meeting/Dictation/Nosiy situation/Music/DNS/custom 1/custom 2/OFF

Timer  Yes (Recording start/end)

Slate tone  Yes

Test tone  Yes

Normalize  Yes

Fade in/out  Yes

Trimming  Yes

Partial erase  Yes

File divide  Yes

Edit file name (template)  Yes

Edit file name (original)  Yes (using smartphone app)

Edit folder name (template selectable when create a folder)  Yes

Edit folder name (original)  Yes (using smartphone app)

Create folder (templete)  Yes

Create folder (original) Yes (using smartphone app)

Playback speed control  0.5 to 3.5 times

Repeat  A-B-C repeat

Equalizer  4 types

DRC while playback
(Dinamic Range Control) Voice Balancer

Noise cancel while playback  Yes

INDEX  Yes

Calendar Search  Yes

Intro play  Yes (3/5/10 sec.)

Power requirements  2 AAA batteries

Battery life (Recording) [Linear PCM] Alkaline/NiMH
 96kHz/24bit:  Approx.29hours/20hours
 88.2kHz/24bit:  Approx.31hours/21hours
 48kHz/24bit:  Approx.47hours/31hours
 48kHz/16bit:  Approx.54hours/36hours
 44.1kHz/24bit:  Approx.50hours/33hours
 44.1kHz/16bit:  Approx.56hours/37hours
 44.1kHz mono:  Approx.59hours/39hours

[MP3] Alkaline/NiMH
 320kbps:  Approx.62hours/40hours
 128kbps:  Approx.63hours/42hours
 64kbps mono:  Approx.64hours/42hours
–
Speaker  18mm

Maximum speaker output  230mW

Input jack  φ3.5mm×1 (MIC/Line in)

Earphones jack  φ3.5mm×1 (EAR)

Maximum headphone output  3mW+3mW

Internal battery charge  Yes

USB  USB2.0 microB

Dimensions  (W x H x D) 39.6 x 112.2 x 16.1 mm

Compatible Bluetooth version and profileVer.5.0, A2DP, AVRCP

Bluetooth earphones to monitor recording  Yes

Using smartphone and other Bluetooth device together  Yes

Smartphone app. Availability  Android/iOS
REC/REC_PAUSE/STOP/INDEX/Recording level/File name edit/Wave form display/various settings

Tripod Yes

Weight  78g (including battery)



• Olympus LS-P5 Linear PCM Recorder
• “USB cable (A-microB)
• 2 Ni-MH batteries”
