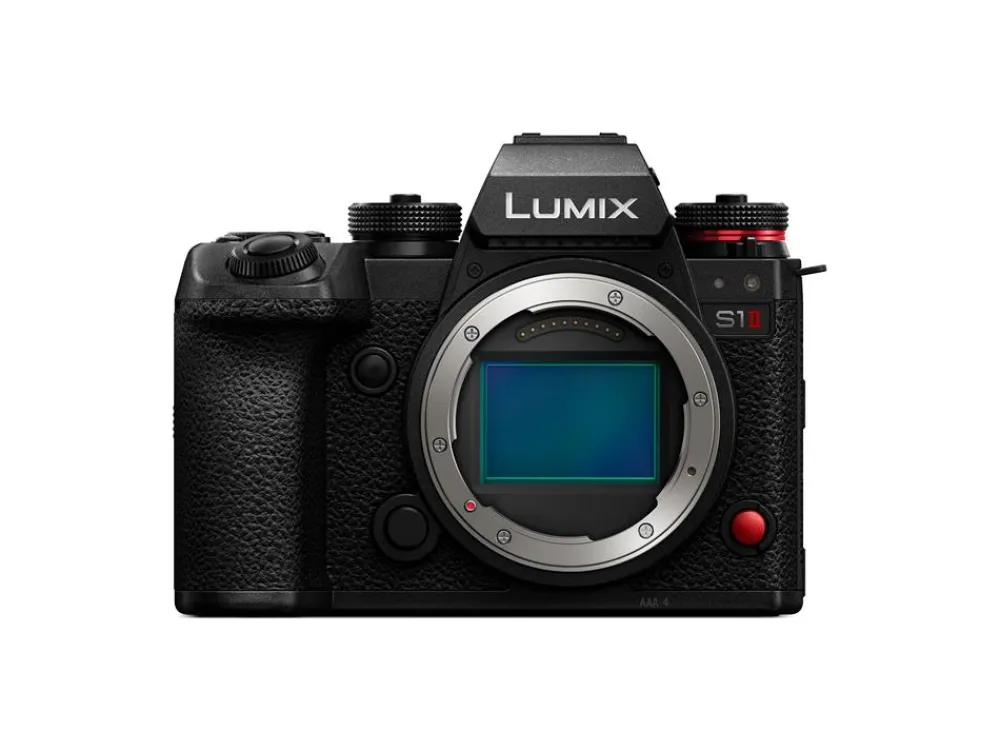

Panasonic Interchangeable Lens Cameras | Mirrorless Cameras Only | Lumix S1 MK II Body

AT A GLANCE

An ultimate hybrid camera, featuring LUMIX Color Science, wide dynamic range x 24M x high-speed, allowing the creators to efficiently capture photos and videos just as they envision.
•  High frame rate video /wide dynamic range (4K120p, 5.1K60p, 15 stops of dynamic range, LUMIX color science)
•  Burst shooting photos / high quality images (70fps SH+ burst shooting, 1.5sec Pre burst, HEIF)
•  Shooting efficiency (Phase Hybrid AF with AI, image stabilizer, burst shooting, REAL TIME LUT)
•  Workflow efficiency (LUMIX Lab/Flow, Capture One, Frame.io, loading settings between different models)
•  Creating diverse images (Open Gate, LUT, Cinelike A2, Internal RAW)
•  Superb operability (Photo/Video/S&Q switch, tilt and free-angle rear monitor, view finder, Hybrid/Crop Zoom)
•  High quality audio recording with 32-bit float recording

Type  Digital Single Lens Mirrorless camera

Lens mount L-Mount

IMAGE SENSOR  Type  35mm full-frame (35.8mm x 23.8mm) CMOS sensor

Camera effective pixels / Total pixels  24.1 megapixels / 26.8 megapixels

AR (Anti Reflection) coating  Yes

Aspect ratio / Color filter  3:2 / Primary color filter

Dust reduction system  Image sensor shift type

Shutter Behavior at Power Off  ON / OFF

LATITUDE  15 stops (V-Log) (Dynamic Range Boost ON)
14+ stops (V-Log) (Dynamic Range Boost OFF)

STILL IMAGE  Recording file format  JPEG (DCF, Exif 3.0), RAW, HEIF

Aspect ratio  4:3 / 3:2 / 16:9 / 1:1 / 65:24 / 2:1

Image quality  Fine, Standard

HDR (HLG) Yes

Color space  sRGB, AdobeRGB

View Finder Type  OLED Live View Finder

Pixels  Approx. 5.76 million dots

Field of view / Magnification Approx. 100% / Approx. 0.78x with 50 mm lens at infinity; -1.0 m-1, when the aspect ratio is set to 3:2

Eye point / Diopter adjustment  Approx. 21 mm at infinity; -1.0 m-1 / -4.0 – +2.0 (dpt)

Eye sensor  Yes

Display speed  120fps* / 60fps     *During live view in photo recording mode.

Type  TFT LCD monitor with static touch control

Monitor size  Tilt free-angle, 3.0-inch (7.6cm), 3:2 aspect

Pixels  Approx. 1.84 million dots

Field of view  Approx. 100%

Type  Phase Detection AF system (779-point) / Contrast AF system (315-area)

DFD technology  Yes

Focus mode  AFS (Single) / AFC (Continuous) / MF

AF modeTracking / Full Area AF / Zone (Horizontal/Vertical) / Zone / 1-Area+ / 1-Area / Pinpoint
*Automatic Detection can be turned ON to switch between Human / Animal / Car / Motorcycle/Bike / Train / Airplane. Except when Pinpoint is set. Target Parts can also be set.

AF detective range  EV -6 – 18 (F1.4, ISO100 equivalent, AFS)

AF custom setting  AF Sensitivity, AF Area Switching Sensitivity, Moving Object Prediction

AF assist light  Yes

AF lock  Set the Fn button in custom menu to AF lock

Focus ring control  Nonlinear / Linear (90°/ 120°/ 150°/ 180°/ 210°/ 240°/ 270°/ 300°/ 330°/ 360°/ 720°/ 1080°/ Maximum)
Direction of ring rotation: Forward and reverse selectable

Others  AF-ON, AF-ON: Near Shift, AF-ON: Far Shift, Focus Limiter, Focus Peaking, Focus Frame Moving Speed, Focus/Shutter Priority, Focus Switching for Vert/Hor, AF/AE Lock Hold, AF+MF, MF Assist, MF Guide, Focus Ring Lock, Show/Hide AF Mode, AF-Point Scope, Shutter AF, Half Press Shutter, Quick AF, Eye Sensor AF, Loop Focus Frame, Enlarged Live Display (Video), AFS Behavior in Video Mode, Touch Shutter, Touch AF/AE Function, Touch Pad AF, Lens Focus Resume, AF Micro Adjustment

Light metering system  1,728-zone multi-pattern sensing system

Light metering mode  Multiple / Center Weighted / Spot / Highlight Weighted

Metering range  EV0-18 (F2.0 lens, ISO100 equivalent)

Recording mode  Mode dial  Program AE (P) / Aperture Priority AE (A) / Shutter Priority AE (S) / Manual Exposure (M) / Custom 1, 2, 3, 4, 5 / Intelligent Auto

Photo/Video/S&Q switch  Photo Mode / Video Mode / Slow&Quick Mode

Custom mode  The settings can be registered for each of the photo, video, and  S&Q modes.

Exposure compensation  1/3 EV step ±5EV (±3EV for motion picture)

White balance  AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2, 3, 4 / Color temperature setting 1, 2, 3, 4
 AI-AWB can be set when RAW processing.

White balance adjustment  Blue/Amber bias, Magenta/Green bias

Color temperature setting  2500-10000K in 100K

Type  Focal-plane shutter

Silent mode / Shutter type  Yes / Yes (Auto / Mechanical / Electronic front curtain / Electronic / Electronic+NR)

Shutter speed  Still image: Bulb (Max. 30 minutes), 1/8,000 – 60
Electronic front curtain shutter: Bulb (Max. 30 minutes), 1/2,000 – 60
Electronic shutter: Bulb (Max. 60 sec), 1/16,000 – 60
Motion picture: 1/16,000 – 1/25* (Dynamic Range Boost OFF)
Motion picture: 1/6,400 – 1/25* (Dynamic Range Boost ON)
Motion picture M mode / MF mode: 1/16,000 – 1/25* (Dynamic Range Boost OFF)
Motion picture M mode / MF mode: 1/6,400 – 1/25* (Dynamic Range Boost ON)
  *Can be set up to 1/2 of a second when exposure is M and focus mode is MF in video mode.

Self timer  10sec, 3 images / 2sec / 10sec / Custom Time

Remote control  Remote control by DMW-RS2 (sold separately)

AE bracket  3, 5, 7 images in 1/3, 2/3 or 1 EV step, max. ±3 EV, single/burst

Aperture bracket  3, 5 or all positions

Focus bracket  Yes

White balance bracket  3 images in blue/amber axis or in magenta/green axis, color temperature setting

Flash type  Sold separately

Synchronization speed  Less than 1/250 second     *The guide number decreases at 1/250 second. Only when set to M mode or S mode.

Flash mode  Auto* / Auto/Red-eye Reduction* / Forced On / Forced On/Red-eye Reduction / Slow Sync. / Slow Sync./Red-eye Reduction / Forced Off     *For iA only.

Flash output adjustment  1/3EV step ±3EV

Flash synchronization  1st Curtain Sync, 2nd Curtain Sync.

Wireless control  Yes (When using DMW-FL200L / FL360L / FL580L (sold separately)), Wireless Channel: 1ch/2ch/3ch/4ch

USB  USB Type-C® (USB 10Gbps)

HDMI (*6)  HDMIHDMI TypeA
Audio: ON / OFF, MP4: 2ch, MOV: 2ch (When [4ch Mic Input] is set to OFF.), 4ch (When [4ch Mic Input] is set to ON.)

Monitor-through  4:2:2 10bit (When [Rec Quality] is set to [4:2:2 10bit] or [4:2:0 10bit].)
4:2:2 8bit (When [Rec Quality] is set to [4:2:0 8bit].)
Down Convert: Auto / C4K/4K / 1080p / 1080i / OFF

Playback  59.94Hz: C4K/120p / C4K/60p / C4K/30p / 4K/120p / 4K/60p / 4K/30p / 1080/120p / 1080p / 1080i / 720p* / 480p*
 50.00Hz: C4K/100p / C4K/50p / C4K/25p / 4K/100p / 4K/50p / 4K/25p / 1080/100p / 1080p / 1080i / 720p* / 576p*
 24.00Hz: C4K/120p / C4K/24p / 4K/120p / 4K/24p / 1080/120p / 1080p
*Only for playback.

Remote input  φ2.5mm

Audio  Built-in microphone  Stereo
Wind Noise Canceller: OFF / Standard / High

External microphone / External audio device inputφ3.5mm for external microphone / external audio device
MIC (Plug-in Power) / MIC / LINE
Wind Cut: OFF / Low / Standard / High     *When attaching 3.5mm microphone (sold separately).
Special Mic: Stereo / Shotgun     *When attaching DMW-MS2 (sold separately).

XLR microphone  Yes with DMW-XLR2 (sold separately)

4ch mic input  Yes with DMW-XLR2 (sold separately)

Speaker  Monaural

Headphone output  φ3.5mm

Card slot Slot 1: CFexpress Type B Card
 Slot 2: SD Memory Card / SDHC Memory Card* / SDXC Memory Card*
*Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards.

Battery  Li-ion Battery Pack (7.2V, 2200mAh, 16Wh) (bundled)
USB power supply, USB power charging, USB power delivery

Battery life (CIPA standard)When using CFexpress CardApprox. 350 images (rear monitor), 310 images (LVF), 1,000 images (Power Save LVF mode*) with S-R24105 / DMW-BLK22
*Using a Nextorage CFexpress Type B card. Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec.

When using SD memory cardApprox. 360 images (rear monitor), 320 images (LVF), 1,150 images (Power Save LVF mode*) with S-R24105 / DMW-BLK22
*Using a Nextorage SDXC memory card. Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec.

Dimensions (W x H x D) Approx. 134.3 x 102.3 x 91.8 mm / 5.29 x 4.03 x 3.61 inch (Body only, excluding protrusions)

Weight  Approx. 800g / 1.76 lb (Body, Hot Shoe Cover, Battery, SD Memory Card x 1) (excluding body cap)
Approx. 718g / 1.58 lb (Body, Hot Shoe Cover) (excluding body cap)

Panasonic Lumix DC-S1 MK II Mirrorless Digital Camera

• Rechargeable Lithium-Ion Battery
• Battery Charger
• Body Cap
• Shoulder Strap
