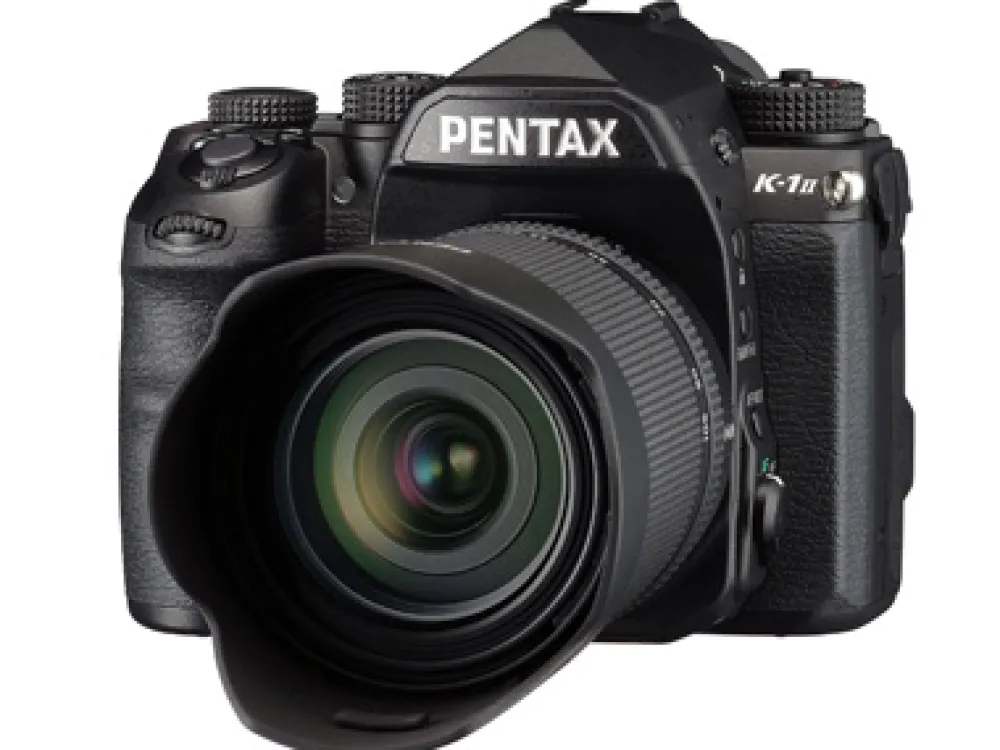

Pentax Interchangeable Lens Cameras | K-1 Mark II with 28-105mm lens

AT A GLANCE

• 36.4MP Full-Frame CMOS Sensor
• PRIME IV Image Processor
• 3.2″ Cross-Tilt LCD Monitor
• Full HD 1080p30 Video Recording
• SAFOX 12 33-Point AF Sensor
• Native ISO 819200; 4.4 fps Shooting
• Pixel Shift Resolution II
• 5-Axis In-Body Shake Reduction
• Built-In Wi-Fi & GPS; Dual SD Card Slots
• Weather-Sealed Magnesium-Alloy Body
• Rechargeable Battery D-LI90
• Filter Thread 62mm

DESCRIPTION

Distinguished by enhanced processing and improved imaging capabilities, the K-1 Mark II from Pentax is the follow-up to their first full-frame flagship DSLR. Revolving around a 36.4MP CMOS sensor and PRIME IV image processor, the camera is capable of producing high-resolution stills at up to 4.4 fps along with recording Full HD video. The 14-bit image processor has been updated with a Ricoh-developed Accelerator Unit, which helps to reduce noise and increase clarity and colour accuracy, as well as boost the sensitivity range up to ISO 819200 for working in low-light conditions. Also contributing to improved image quality is the 5-axis Shake Reduction system, which minimizes the appearance of camera shake for sharper handheld shooting. This image stabilization system also enables Pixel Shift Resolution II, which leverages the movement of the sensor to record for sequential frames and merge them together in order to acquire greater colour detail and resolution. Dynamic Pixel Shift Resolution also benefits from this technology, however lets you achieve similar results even when working handheld.

In addition to its distinct imaging assets, the K-1 Mark II is also characterized by its unique physical design. A stainless steel and magnesium-alloy body is especially robust and extensive weather-sealing makes this camera suitable for use in harsh climates and cold weather. The large pentaprism optical viewfinder affords 100% frame coverage and a high 0.7x magnification, and the rear 3.2″ 1.04m-dot LCD sports a unique Cross-Tilt design for easy positioning to work at a variety of angles. Additionally, built-in Wi-Fi is available for wireless remote control and image transfer and built-in GPS permits geotagging your imagery for tracking your shots on an interactive map.

36.4MP Full-Frame CMOS Sensor
The K-1 Mark II delivers high-quality imagery using an advanced 36.4MP CMOS sensor that is designed to create detailed images with minimal noise. Guaranteeing maximum resolution, the sensor lacks an anti-aliasing, or optical low-pass, filter though this will cause a higher chance of aliasing and moire. For situations at risk of these artifacts users can leverage an AA Filter Simulator function, which slightly moves the sensor in order to mimic the effects of a physical filter.

PRIME IV with Accelerator Unit
Working in concert with the image sensor is an updated 14-bit PRIME IV processing engine, which makes use of a Ricoh-developed Accelerator Unit to effectively suppress noise and reproduce fine details with high accuracy, even with high sensitivity values. This image processor and Accelerator Unit also contribute to a notable boost in sensitivity, with a top setting of ISO 819200 available, along with quick 4.4 fps continuous shooting, Full HD 1080p video recording, and a variety of other processing-intensive tasks, such as Pixel Shift Resolution and AstroTracer.

5-Axis In-Body Shake Reduction
A staple of Pentax DSLRs, the K-1 Mark II is equipped with a 5-axis Shake Reduction system that can counter the effects of camera shake by up to 5 stops. This system has been optimized for the full-frame sensor and can account for yaw, pitch, and roll as well as vertical and horizontal motion of the camera. Also, due to the stabilization being incorporated into the camera body, it functions with every K-mount lens.

Pentax takes advantage of the sensor’s available movement in order to develop additional features, such as the updated Pixel Shift Resolution II setting. This mode shifts the sensor in order to capture full colour data on each pixel by compositing four shots. This grants exceptional clarity, lowers noise, and boosts the effective resolution to 42MP. Additionally, the K-1 Mark II also has Dynamic Pixel Shift Resolution, which allows this function to be used even when shooting handheld.

Another capability is an Image Composition Assist function, which allows you to shift the sensor up/down and left/right as well as slightly rotate it. This lets users easily adjust their composition without needing to move their camera and can be useful for delicately balanced tripod work.

SAFOX 12 AF System
The SAFOX 12 AF system is optimized for the full-frame image sensor and has a total of 33 AF points, of which 25 are cross-type, and three f/2.8 luminance sensors to maximize performance in all lighting conditions. The system can operate down to -3 EV using the 25 center sensors and will benefit working in dark scenes as well as extreme back-lit conditions.

Full HD 1080p Video Recording
In addition to standard stills capture, the K-1 Mark II is capable of Full HD video at up to 30p or 60i using H.264 compression. This enables photographers to add high-resolution motion capture to their arsenal without needing to carry another camera. Also, when shooting in HD 720p, users can shoot at up to 60p. Additionally, the camera is NTSC/PAL switchable and it is equipped with headphone and microphone jacks for high-quality audio support.

Weather- and Dust-Resistant Body with Cross-Tilt LCD
Durability has always been one of Pentax’s strong suits, and the K-1 Mark II is no exception with a stainless-steel chassis covered in a magnesium-alloy shell that is tough and lightweight. Also, the camera is sealed in 87 places to ensure no rain or dust will take your camera out of commission. The camera is designed to handle freezing temperatures as well, with a rating down to 14°F.

The K-1 Mark II is equipped with two SDXC card slots. These can be configured for backup, splitting storage of JPEGs and raw files, or overflow when card 1 is filled. Also on the body users will find a variety of dials and buttons that will allow for quick and intuitive adjustment of settings. Along with this there are LED-illuminated body points on the lens mount, card slots, the backside of the LCD, and at the cable switch terminal that will help you operate the camera in low light. One unique feature of the K-1 Mark II’s design is the use of a 3.2″ 1.04m-dot Cross-Tilt LCD. This ensures the screen remains aligned with the optical center of the camera while allowing for tilt 44° down and 90° upward as well as 35° left and right. The camera also has settings for quickly adjusting the brightness of the display to account for a variety of shooting environments.

GPS, Compass, and AstroTracer
With built-in GPS, shooters can automatically track their movement and position as they work with data automatically written to the image file. It can record location, facing direction, and Coordinated Universal Time while also enabling using a digital compass feature. Along with this, it can work with the Shake Reduction mechanism to activate the AstroTracer function. This system obtains location data and camera position to calculate movement of stars in the sky. The sensor is then synced with the movement in order to minimize the capture of star trails with long exposures.

HD PENTAX-D FA 28-105mm f/3.5-5.6 ED DC WR Lens
Included with the camera body is the HD PENTAX-D FA 28-105mm f/3.5-5.6 ED DC WR lens; a versatile wide-angle to short-telephoto zoom to suit photographing in a wide variety of situations. This flexible and relatively compact lens utilizes low dispersion glass in its design to minimize chromatic aberrations and colour fringing throughout the zoom range while an HD coating has been applied to suppress flare and ghosting for improved contrast. A Supersonic Direct-Drive Motor affords smooth, fast, and quiet autofocus performance, and the lens’s weather-resistant design and Super Protect coating also enable its use in harsh weather conditions.

Other Camera Features

• Real-time Scene Analysis system has been upgraded to look at exposure, colour, faces, movement, and more in order to automatically select the proper exposure settings for optimal image capture.
• Built-in Wi-Fi connectivity allows users to directly connect to the camera using a mobile device for image transfer and remote camera control.
• Record images in DNG raw, Pentax raw, or JPEG with selectable quality and resolutions.
• APS-C crop mode will allow full compatibility with existing APS-C format lenses.
• Aperture and shutter speed priority mode (TAv) allows you to manually select aperture and shutter speed while leaving ISO selection to the camera.
• Optional adapter enables users to mount 645 series medium-format lenses to the K-1.
• Diffraction Correction function will account for diffraction at small apertures and improve image sharpness.
• Focus peaking in video mode will assist with manual focusing.
• Language support: English, French, German, Spanish, Portuguese, Italian, Dutch, Danish, Swedish, Finnish, Polish, Czech, Hungarian, Turkish, Greek, Russian, Korean, Traditional Chinese, Simplified Chinese, and Japanese.

SPECIFICATIONS

Lens Mount Pentax K
Camera Format Full-Frame (1.0x Crop Factor)
Pixels
Actual: 36.77 Megapixel
Effective: 36.4 Megapixel
Max Resolution 36 MP: 7360 x 4912
Aspect Ratio 3:2
Sensor Type / Size CMOS, 35.9 x 24 mm
File Formats
Still Images: DNG, JPEG, RAW
Movies: MOV, MPEG-4 AVC/H.264
Bit Depth 14-Bit
Dust Reduction System Yes
Memory Card Type SDXC, SDHC, SD
Image Stabilization Sensor-Shift, 5-Way
Focus Type Auto & Manual
Focus Mode Automatic (A), Continuous-Servo AF (C), Manual Focus (M), Single-servo AF (S)
Autofocus Points Phase Detection: 33 (25 Cross-Type)
Viewfinder Type Optical
Viewfinder Eye Point 20.6 mm
Viewfinder Coverage 100%
Viewfinder Magnification Approx. 0.70x
Diopter Adjustment -3.5 to +1.2 m
Display Screen 3.2″ Tilting LCD (1,037,000)
Screen Coverage 100%
ISO Sensitivity Auto, 100-819200
Shutter
Type: Mechanical
Speed: 30 – 1/8000 Second
Remote Control O-RC1 (Optional)
Mirror Lock-Up Yes
Metering Method Center-Weighted Average Metering, Evaluative Metering, Spot Metering
Exposure Modes Aperture Priority, Auto, Bulb, Manual, Program, Scene Auto Selector, Sensitivity Priority, Shutter Priority, Shutter/Aperture Priority
Metering Range EV -3.0 – EV 20.0
Compensation -5 EV to +5 EV (in 1/3 or 1/2 EV Steps)
Buffer/Continuous Shooting

• Up to 4.4 fps at 36 MP for up to 17 Frames in Raw Format
• Up to 4.4 fps at 36 MP for up to 70 Frames in JPEG Format
• Up to 3 fps at 36 MP for up to 20 Frames in Raw Format
• Up to 3 fps at 36 MP for up to 100 Frames in JPEG Format
• Up to .7 fps at 36 MP for up to 100 Frames in Raw Format
• Up to .7 fps at 36 MP for up to 100 Frames in JPEG Format
• Up to 6.4 fps at 15 MP for up to 50 Frames in Raw Format
• Up to 6.4 fps at 15 MP for up to 100 Frames in JPEG Format
• Up to 3 fps at 15 MP for up to 70 Frames in Raw Format
• Up to 3 fps at 15 MP for up to 100 Frames in JPEG Format
• Up to 1 fps at 15 MP for up to 100 Frames in Raw Format
• Up to 1 fps at 15 MP for up to 100 Frames in JPEG Format

White Balance Modes Auto, CTE, Cloudy, Colour Temperature, Daylight, Fluorescent (Cool White), Fluorescent (Daylight), Fluorescent (Warm White), Fluorescent (White), Manual, Multi Auto WB, Shade, Tungsten
Flash Modes Auto, Auto/Red-Eye Reduction, Flash On, Flash On w/ Red-Eye Reduction, Hi-Speed Sync, Slow Sync, Slow Sync/Red-Eye Reduction, TTL Auto, Wireless
Built-in Flash No
Max Sync Speed Mechanical Shutter:1 / 200 Second
Flash Compensation -2 EV to +1 EV (in 1/3 or 1/2 EV steps)
Dedicated Flash System TTL
External Flash Connection Hot Shoe, PC Terminal
Video Recording Yes, NTSC/PAL
Video Format
1920 x 1080p at 23.98, 25, 29.97 fps (MOV via H.264)
1920 x 1080i at 50, 59.94 fps (MOV via H.264)
1280 x 720p at 50, 59.94 fps (MOV via H.264)
Aspect Ratio 16:9
Focus Auto, Manual
Max Video Clip Length 1920 x 1080: 25 Minutes
Audio Recording Built-In Mic: With Video (Stereo)
Optional External Mic With Video
Self Timer 12 Seconds, 2 Seconds
Interval Recording Yes
Connectivity 1/8″ Headphone, 1/8″ Microphone, DC Input, HDMI D (Micro), USB 2.0 Micro-B, Wired Remote Port, X-Sync Socket
Wi-Fi Capable Yes
Battery 1 x D-LI90 Rechargeable Lithium-Ion Battery Pack, 7.2 VDC, 1860 mAh
AC Power Adapter K-AC167 (Optional)
Operating/Storage Temperature Operating 14 to 104°F (-10 to 40°C)
Dimensions (W x H x D) 5.4 x 4.3 x 3.4″ / 136.5 x 110.0 x 85.5 mm
Weight 2.04 lb / 925 g body only

LENS SPECIFICATIONS
HD PENTAX-D FA 28-105mm f/3.5-5.6 ED DC WR Lens

Lens Mount PENTAX KAF3
Focal Length 28 – 105mm
Aperture Maximum: f/3.5 – 5.6 Minimum: f/22 – 32
Angle of View 53° – 15.5°
Minimum Focus Distance 1.64′ (50 cm)
Magnification 0.22x
Elements/Groups 15 / 11
Diaphragm Blades 9, Rounded
Autofocus Yes
Image Stabilization No
Filter Thread Front: 62 mm
Dimensions (DxL) Approx. 2.87 x 3.41″ (73 x 86.5 mm)
Weight 15.52 oz (440 g)

Pentax K-1 Mark II DSLR Camera (Body Only)
• D-LI90(E) Lithium-Ion Battery (7.2V, 1860mAh)
• D-BC90 Battery Charger
• AC Cord for K7 Digital SLR Camera
• Finder Cap ME
• O-ST162 Strap
• Eyecup FT
• Hotshoe Cover FK
• Body Mount Cap
• Synchro Terminal 2P Cap
• Triangular Ring
• Protective Cover
• S-SW162 Software CD-ROM
