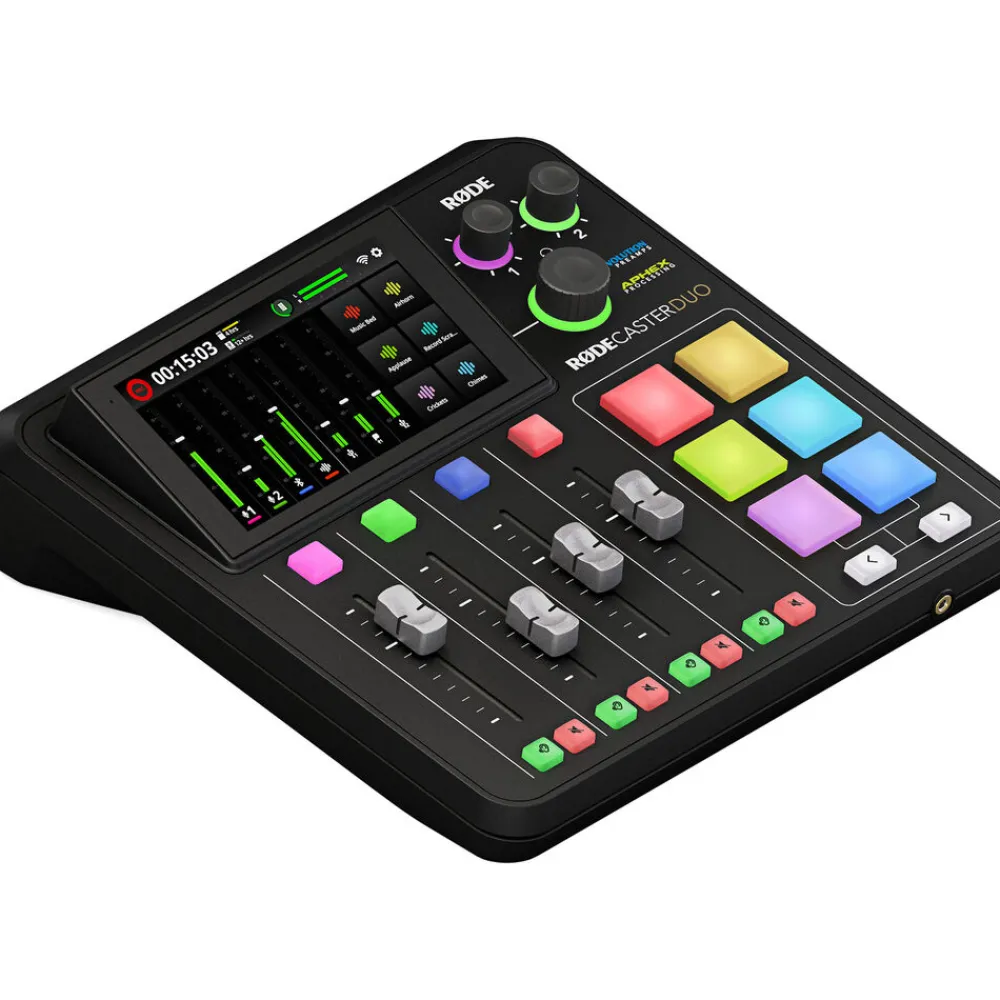

RODE Video Accessories | Microphones / Headphones / Speakers | Caster Duo Integrated Audio Production Studio

Designed to elevate your podcasting, and your streaming, music-making, and content creation, the RODECaster Duo from RODE is a compact and powerful all-in-one audio production solution that delivers all the same revered features and versatility of the RODECaster Pro II in a smaller, more portable form factor. Perfect for those who require fewer audio inputs and a more travel-friendly design, the RODECaster Duo sacrifices none of the qualities or functionalities of its larger sibling, sporting the same high-powered quad-core audio engine, high-gain, low-noise Revolution preamps, APHEX audio processing, and flexible customization.



The RODECaster Duo features two XLR-1/4″ combo inputs for mic- or line-level signals, one stereo pair line output for speakers, two headphone outputs, a microSD card reader for internal multitrack recording, two USB-C host connections, and an ethernet network terminal for hardware or software integrations. Just like the RCPII, you also get intuitive hands on control, such as four assignable mixer faders, six colorful customizable SMART pads for audio, FX, and MIDI triggering, a bright colorful touchscreen, and plenty of buttons and knobs to create engaging content of almost any kind. The RODECaster Duo includes Bluetooth technology and integrated wireless microphone receivers for onboard compatibility with the RODE Wireless GO II and Wireless ME, allowing you to handle just about any usage scenario and any workflow, anywhere.

Product Highlights

• Premium boutique-class preamps with a high gain, low noise, and mic/line/instrument combo inputs
• Customizable mixer with RGB color coding
• Extensively programmable SMART pads for launching sounds, shows, mixer actions, and more
• Two built-in wireless receivers (one on each mic channel) compatible with the Wireless GO II and Wireless ME transmitters
• iOS-ready dual USB Type-C ports to connect multiple computers or mobile devices
• Advanced high-quality Bluetooth input/output, Wi-Fi, Ethernet, and integrated wireless receivers for Series IV transmitters

2 High-End Preamps



• Built to compete with pricey boutique microphone preamplifiers, the Revolution preamps deliver transparency and detail with ultralow noise (just -131.5 dBV) and incredible gain up to 76 dB, which enables ideal recording levels, even for low-output dynamic mics—no mic boosters, lifters, or normalization needed.
• Pro-grade Neutrik XLR-1/4″ combo jacks provide connection points for microphones (+48V phantom power is available for condenser mics), line-level sources, or instruments such as electric guitar and bass. Pairs of the analog input channels can be linked to easily record stereo mic setups, synths, DJ mixers, or outboard gear.

Studio-Quality Processing and Effects

• Authentic emulations of classic APHEX hardware processors are onboard—Aural Exciter elevates clarity and sheen, Big Bottom adds warm and deep low-frequency punch, and Compellor glues it all together with compression/leveling—as well as other widely used processors including a reverb, delay, pitch shifter, equalizer, high-pass filter, noise gate, de-esser, robot effects, and more.
• Use the VoxLab editor to quickly manipulate parameters on several processors via three intuitive controls, or access the advanced editor (onscreen or with a computer) for intricate editing. Use presets, save your own presets, and load them at any time to immediately call up your favorite settings.

6 Programmable SMART Pads



• Each SMART pad can trigger audio files such as music or sound bites, activate special effects, send MIDI commands to software or hardware, or execute mixer functions like fades, music ducking, and bleeping.
• Bank switching buttons beneath the pads for a plethora of unique actions.
• Select the color of your choice for the pad illumination, a convenient way to remember which effect is on which pad.

Customizable Multichannel Mixer



• The 7-channel mixer features 4 channels with full-size broadcast-quality physical faders and three virtual channels, with the option to expand via digital hosting and hardware integrations with future updates.
• Physical faders and virtual channels are freely assignable to the two analog inputs, USB and Bluetooth interfaces, and SMART pads.
• Each channel offers a pan control, mute button, and listen button (pre- or after-fader solo). With channel-specific color coding on the RODECaster Duo, you’ll be able to quickly identify your sources.

Stereo or Multitrack Recording

• Record stereo or individual multitrack files to a microSD card or USB storage such as an external drive.
• Choose uncompressed WAV format for maximum audio quality or MP3 format to save storage space and extend recording time.
• Use the RODECaster Duo as a high-quality USB audio interface to stream/record to a computer with ultrafast data transfer.
• RODECaster Duo runs at 24-bit / 48 kHz, the industry standard for video production.

Monitoring for All



• Two high-powered 1/4″ headphone outputs provide clear personal monitoring for the host and a guest.
• Separate color-coded volume controls let all participants easily control their own headphone levels.
• Connect a pair of active speakers to the 1/4″ line outputs if you need to amplify your content to a live audience, or go wireless and monitor through a Bluetooth speaker to check the mix on an alternate system.
• Selectable high or low sensitivity optimizes the gain structure of the headphone outputs, so you can set headphone levels easier.

Podcast-Friendly Specialties



• Producer talkback mode lets you communicate with guests without affecting the recording.
• Equipped with advanced Bluetooth connectivity, the RODECaster Duo can be used for ultrahigh-quality phone-call integration, crystal-clear audio streaming, wireless monitoring, and more.
• Mix-minus on the Bluetooth and USB channels prevents the person on the other end of the call from hearing a distracting echo, making the RODECaster Duo great for remote and local guests in your podcast.

Fast Workflow

• Save multiple Shows containing all of the RODECaster Duo’s settings, an ideal way to instantly switch between types of productions such as podcasts, live streams, and game commentary. Tailored presets for Rode microphones and other popular models help you get great sound in a hurry.
• The color touchscreen has haptic feedback, automatic brightness adjustment, and is tilted for optimal viewing. Next to the touchscreen, a rotary encoder is placed for efficient navigation and control.
• Dual USB Type-C interfaces allow two computers or mobile devices to be connected simultaneously, unlocking great options for everything from remote podcasting to organizing complex streaming setups.

Additional Features

• An internal 1.5 GHz quad-core audio engine delivers significant processing power and unlocks huge potential for future updates.
• Bidirectional MIDI communication allows excellent integration with DAWs and streaming software.
• Wi-Fi and Ethernet connections offer high-speed communication with computers and other devices for updating firmware wirelessly, software and hardware integrations, and more.
• The USB connections are MFi-certified for seamless integration with iOS devices such as iPads.
• Power the RODECaster Duo via USB Type-C PD (30W).
• Ready for global use, the unit provides use in 10 languages—English, Chinese, Japanese, Korean, French, German, Italian, Spanish, Portuguese, and Hindi.
• RODECaster Duo is fully updatable for continued evolution with new firmware that will be available to all users via Wi-Fi, Ethernet, or USB.
• Internal wireless microphone receivers for compatibility with any Series IV wireless transmitter, including Wireless GO II and Wireless ME.

Form Factor  Desktop

Display  1 x Color

Channels of I/O  2 Inputs / 4 Outputs

Built-In DSP  Yes

Maximum Sampling Rate  48 kHz / 24-Bit

Number of Microphone Preamps  2 Preamps

Built-In Microphone  None

Expansion Slots  None

Gain/Trim Range  -135 +76 dB

High-Pass Filter  None

Solo/Mute  Solo, Mute per Input Channel

Analog Audio I/O  2 x Combo XLR-1/4″ TRS Mic/Line Input
 2 x 1/4″ TRS Line Output
 2 x 1/4″ TRS Headphone Output

Phantom Power  None

Digital Audio I/O  None

Host Connection / USB  2 x USB-C

Host Connection Protocol  USB 3.0 / 3.1/3.2 Gen 1

USB (Non-Host)  None

Sync I/O  None

Network I/O  None

MIDI I/O  None

Wireless Connectivity  None

Sample Rates  48 kHz

Bit Depths  24-Bit

Sync Sources  None

Memory Card Slot  1 x microSDHC

OS Compatibility  macOS
Windows
*As of April, 2023: Check with manufacturer for the most up-to-date compatibility

Included Software  None

Mobile App Compatible  No
*As of April, 2023: Check with manufacturer for the most up-to-date compatibility

Mobile Device Compatibility  None

Power Requirements  AC/DC Power Adapter (Included)

AC/DC Power Adapter  5 V

Current Consumption  3 A

RODE RODECaster Duo Integrated Audio Production Studio
