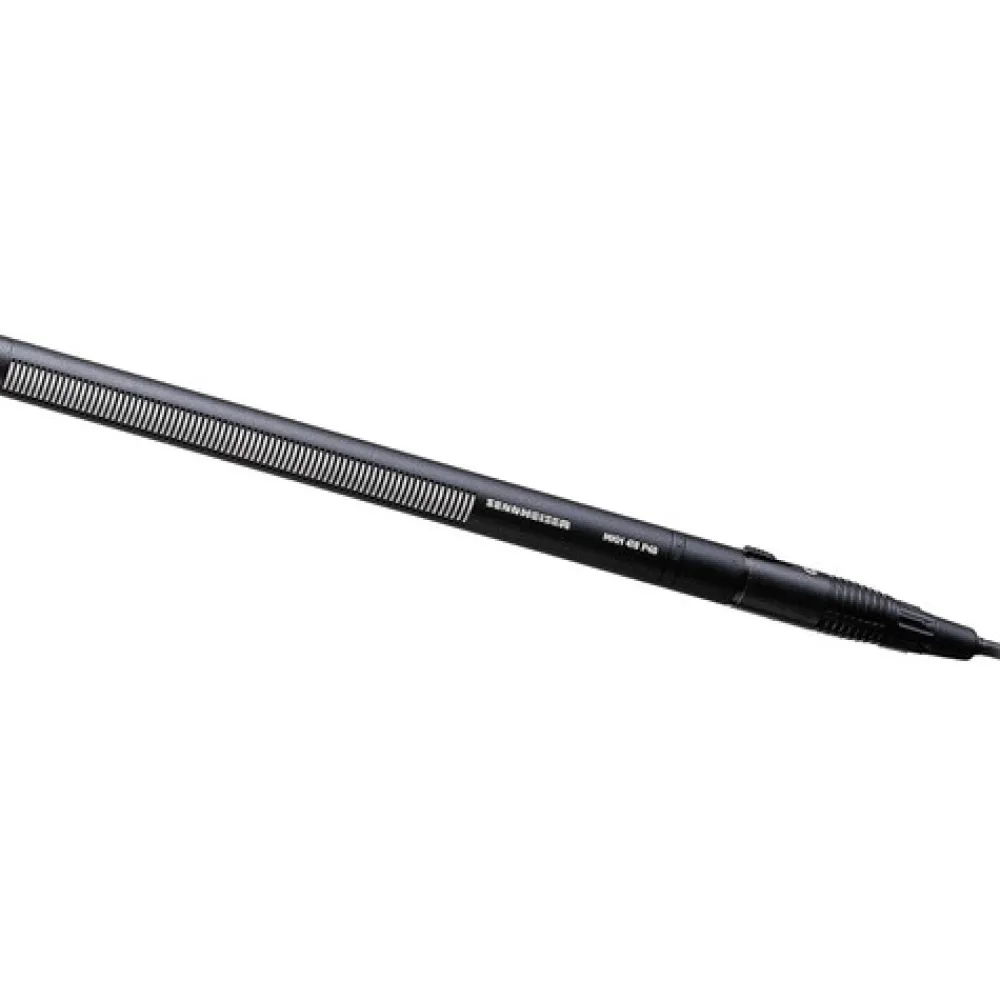

Sennheiser Video Accessories | Microphones / Headphones / Speakers | MKH 416-P48U3 Moisture-Resistant Shotgun Mic

AT A GLANCE

Mix-ready sound quality is provided by its sharp directivity, low noise, and strong output. Plus, there are no controls to worry about; the MKH 416-P48U3 delivers the reliability you need for high-pressure gigs.

The microphone exhibits a hypercardioid polar pattern at low to midrange frequencies and transitions to a lobar pattern in high frequencies, allowing it to attenuate 125 Hz to 2 kHz by approximately 10 dB at the 90° off-axis points. Your dialogue, foley, and sound effects can be recorded with full dynamics and clarity, thanks to the MKH 416-P48U3’s wide frequency response, enhanced consonant articulation, and high SPL handling.

Performs in Adverse Environmental Conditions

When your work takes you outdoors, you’re bound to encounter humidity and condensation, which can cause many mics to fail. The MKH 416-P48U3’s RF condenser design makes it highly immune to moisture, allowing you to reliably capture high-quality audio in normal and adverse environmental conditions.

Professional Sound Quality

The MKH 416-P48U3 was engineered with the experienced professional in mind. Its 40 Hz to 20 kHz frequency response incorporates a gentle rise from 5 to 15 kHz to increase intelligibility, and a natural bass roll-off to mitigate rumble. Its low self-noise of 13 dBA and high sensitivity of -32 dB enable studio-worthy signal purity without requiring noise reduction and gain boosting in postproduction.

Phantom Powered

The MKH 416-P48U3 boasts a transformerless and fully floating balanced output for optimal signal integrity. Thanks to its 3-pin XLR output and compliance with 44 to 52 VDC phantom power, the MKH 416-P48U3 is compatible with a variety of handheld audio recorders, field recorders, and mixer adapters, as well as built-in preamps on many camcorders and cinema cameras.

Ideal for Boompole Mounting

The MKH 416-P48U3’s metal body features a matte black finish to prevent distracting visual reflections. Mount the MKH 416-P48U3 directly on a stand or boompole using the supplied MZQ 100 clip. Alternatively, place the MKH 416-P48U3 in the separately available Sennheiser MZS 20-1 combination shockmount, pistol grip, and stand adapter to prevent the transfer of vibrations to the microphone.

Windscreen Minimizes Wind Noise

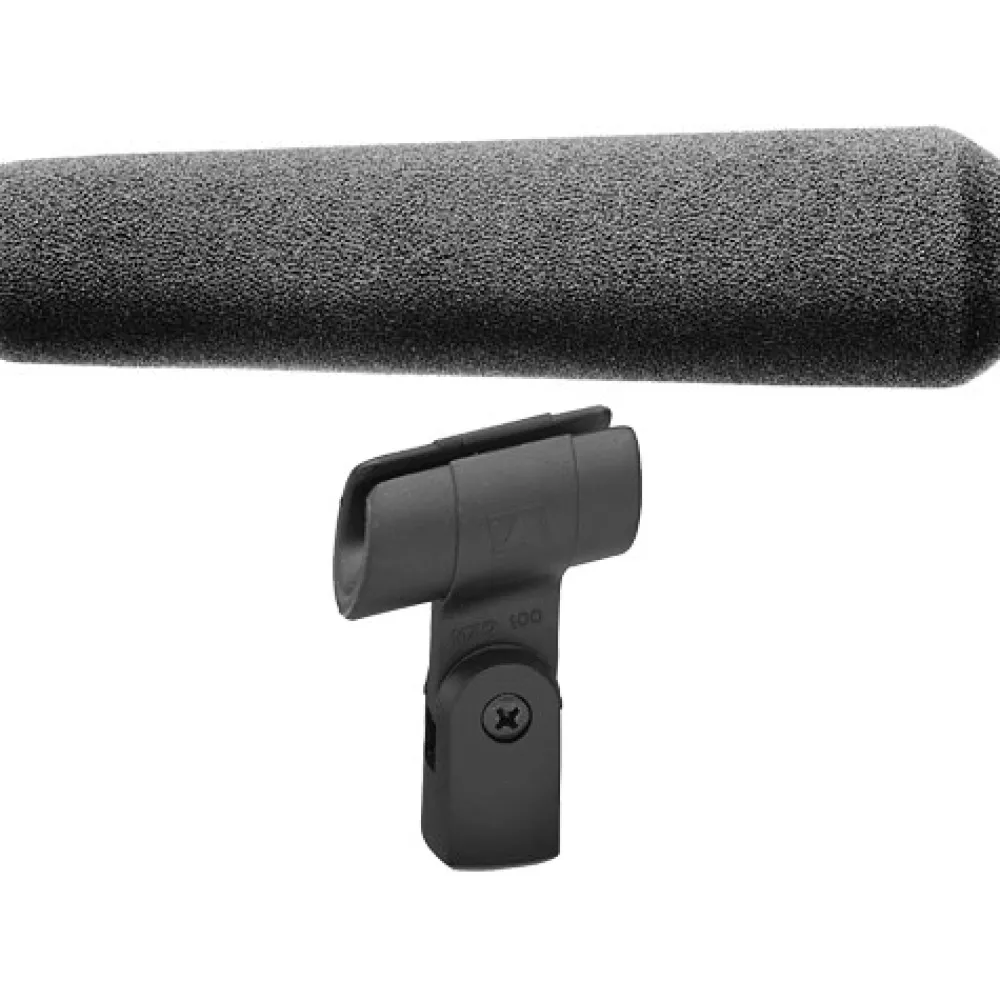

The MKH 416-P48U3 has a foam windscreen to reduce unwanted wind noise from breezes, fans, heaters, and air conditioners.

Microphone

Form Factor Stand/Boom Mount

Sound Field Mono

Operating Principle Line Gradient

Capsule Condenser

Polar Pattern Lobar, Supercardioid

Orientation End Address

Circuitry Solid-State

Pad None

High-Pass Filter None

Tone Adjustment None

Gain Adjustment None

Indicators None

On-Board Controls None

WindscreenFoam (Included)

Performance

Frequency Range 40 Hz to 20 kHz

Maximum SPL 130 dB SPL

Off-Axis Rejection 3 dB at 60°
20 dB at 120°
15 dB at 180°

Impedance 25 Ohms

Load Impedance 800 Ohms

Sensitivity -32 dBV/Pa at 1 kHz

Equivalent Noise Level 13 dB A-Weighted
24 dB CCIR

Connectivity

Output Connectors (Analog) 1 x XLR 3-Pin

Power

Operating Voltage 48 V ± 4 V

Operating Current Consumption 2 mA

Physical

Color Black

Mounting Shockmount (Included)

Included Case Soft Case

Construction Material Metal

Storage Temperature 14 to 102°F / -10 to 70°C

Dimensions ø: 0.75 x L: 9.84″ / ø: 19 x L: 249.94 mm

Weight 6.17 oz / 175 g (Microphone)

Sennheiser MKH 416-P48U3 Moisture-Resistant Shotgun Microphone

• Sennheiser MZW-415 – Foam Windscreen (Gray)
• Sennheiser MZQ100 Quick Release Stand Adapter for K3U, MD409 and MKH-416 Microphones
• Case
