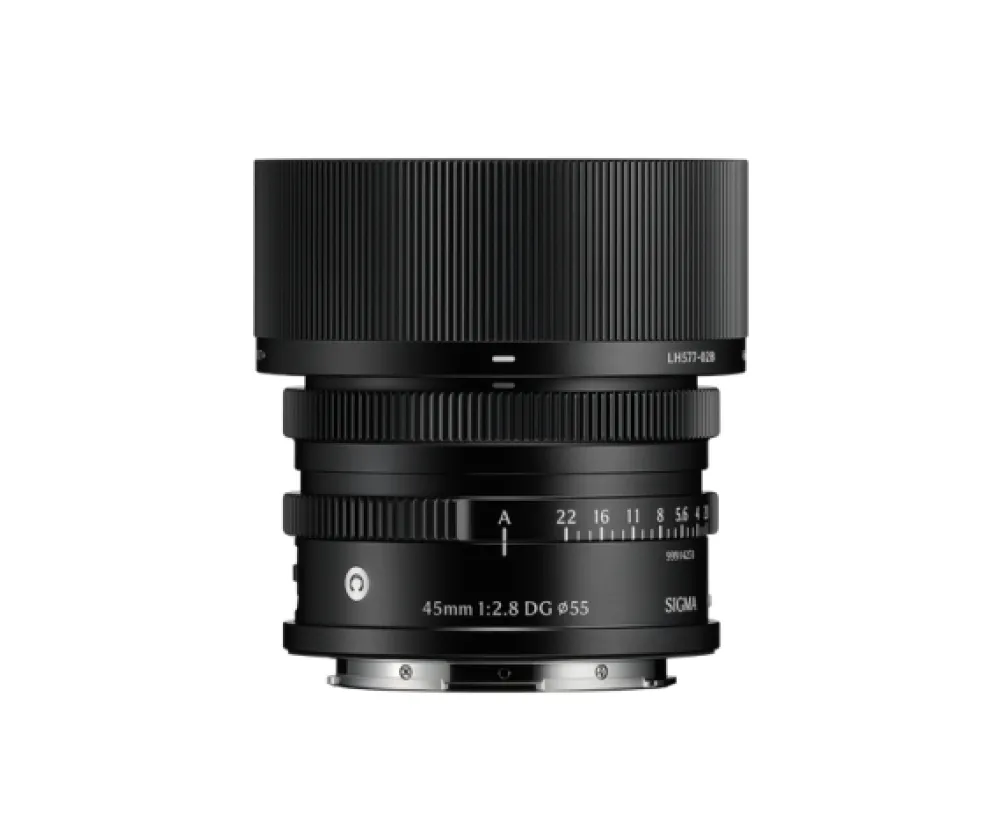

Sigma Mirrorless Lenses Only | 45mm f/2.8 DG Contemporary Black Lens (Sony FSE)

With the Sigma 45mm F2.8 DG | Contemporary, bokeh expressions are especially featured. Spherical aberration has been controlled to ensure not only the large bokeh in the front and rear of the subject but also the rear bokeh near the area in focus create a gradient to a soft blur. This lens softens the periphery of blurred images suppressing the double-line bokeh etc. and enhances the three-dimensional impression of the subject with the smooth expressions in the foreground and the background. In addition, its minimum focusing distance of 24cm makes it possible to enjoy shooting snapshots and tabletop photos taking advantage of the angle of view. The design gives consideration to vignetting to achieve beautiful round bokeh and subdue swirly bokeh in the whole bokeh effects.

While this lens produces smooth bokeh effects which one could define as “classical expression” when the aperture is wide open, it also realizes modern sharp rendering when it is stopped down. It is reassuring to hold this lens as a regular lens for everyday use.

Because this lens is intended for everyday use, particular attention has been given to build quality and operability. The lens barrel incorporating metal material as the main part achieves improved durability. Furthermore, thanks to the aperture ring with the right click feeling, comfortable operability during various shooting styles is ensured. The design gives consideration to MF operations, and a ring of appropriate torque provides good operability.

Inner focus system

To increase stability, this lens configuration uses movable internal lens elements that adjust focus without changing the length of the lens barrel.

Compatible with Lens Aberration Correction

Matching the optical characteristics of the lens, this function performs in-camera corrections of peripheral illumination, chromatic aberrations, distortion, and more, to further enhance image quality.

*Function available on supported cameras only. Available corrections or auto correction functionality may vary depending on the camera model.
*On cameras where lens aberration correction is controlled with ‘ON’ or ‘OFF’ in the camera menu, please set all aberration correction functions to ‘ON’ (AUTO).

Super Multi-Layer Coating

Sigma’s own Super Multi-Layer Coating suppresses flare and ghosting by preventing reflections with in the lens. All lenses in the current Sigma range feature this original technology. In digital cameras, flare and ghosting may also be caused by reflections between the image sensor and lens surfaces. Here too, Sigma’s Super Multi-Layer Coating is highly effective, assuring images of outstanding contrast.

Nano Porous Coating

NPC (Nano Porous Coating) incorporates porous silica as the coating material. The porous silica layer has nano-sized holes with air inside. Having holes of this size enables a large reduction in the refractive index, allowing the reflectance to be lowered more than conventional anti-reflective coatings. As a result, reflected light causing flares and ghosting is sharply reduced, achieving clear image quality.

Aperture ring

Aperture ring, designed to help users work intuitively.

Focus Mode Switch

Using this switch, it is possible to switch the focus mode between AF and MF.

A focus movement method of interchangeable lenses for mirrorless cameras in relation to the rotational angle of the focus ring during manual focusing. With “non-linear focus” the amount of focal point movement varies depending on the focus ring rotational speed. With linear focus, if the focus ring rotational angle is the same, the amount of focal point movement remains the same regardless of the focus ring rotational speed.

Stepping Motor

The lens is capable of smooth, quiet and high-speed AF made possible by a stepping motor, as well as supports Face/Eye Detection AF and video AF.

Mount with Dust and Splash Resistant Structure

The lens mount incorporates rubber sealing to protect the mount from dust and water drops.

Others

• Rounded diaphragm
• Compatible with high-speed autofocus
• Compatible with AF Assist (Sony E-mount only)
• High-precision, durable brass bayonet mount
• Support DMF and AF+MF
• Designed to minimize flare and ghosting
• Every single lens undergoes SIGMA’s proprietary MTF measuring system
• Magnetic metal lens cap
• “Made in Aizu, Japan” craftsmanship

Lens Construction  8 elements in 7 groups

Accessory Camera Wall  No

Edition Number  C019

Sensor Size  Full Frame

Angle Of View  51.3°

Number of Diaphagm blades  7 (rounded diaphragm)

Minimum Aperture  F22

Minimum Focusing Distance  24mm  / 9.4 in.

Maximum Magnification Ratio  1:4

Filter Size  55mm

Dimensions  Sony E-Mount: 64mm x 48.2mm / 2.5 in. x 1.9 in.

Weight  Sony E-Mount: 230g / 8.1 oz.



Sigma 45mm f/2.8  DG  Contemporary Lens for Sony E

• Front Lens Cap
• Rear Lens Cap
• Lens Hood
