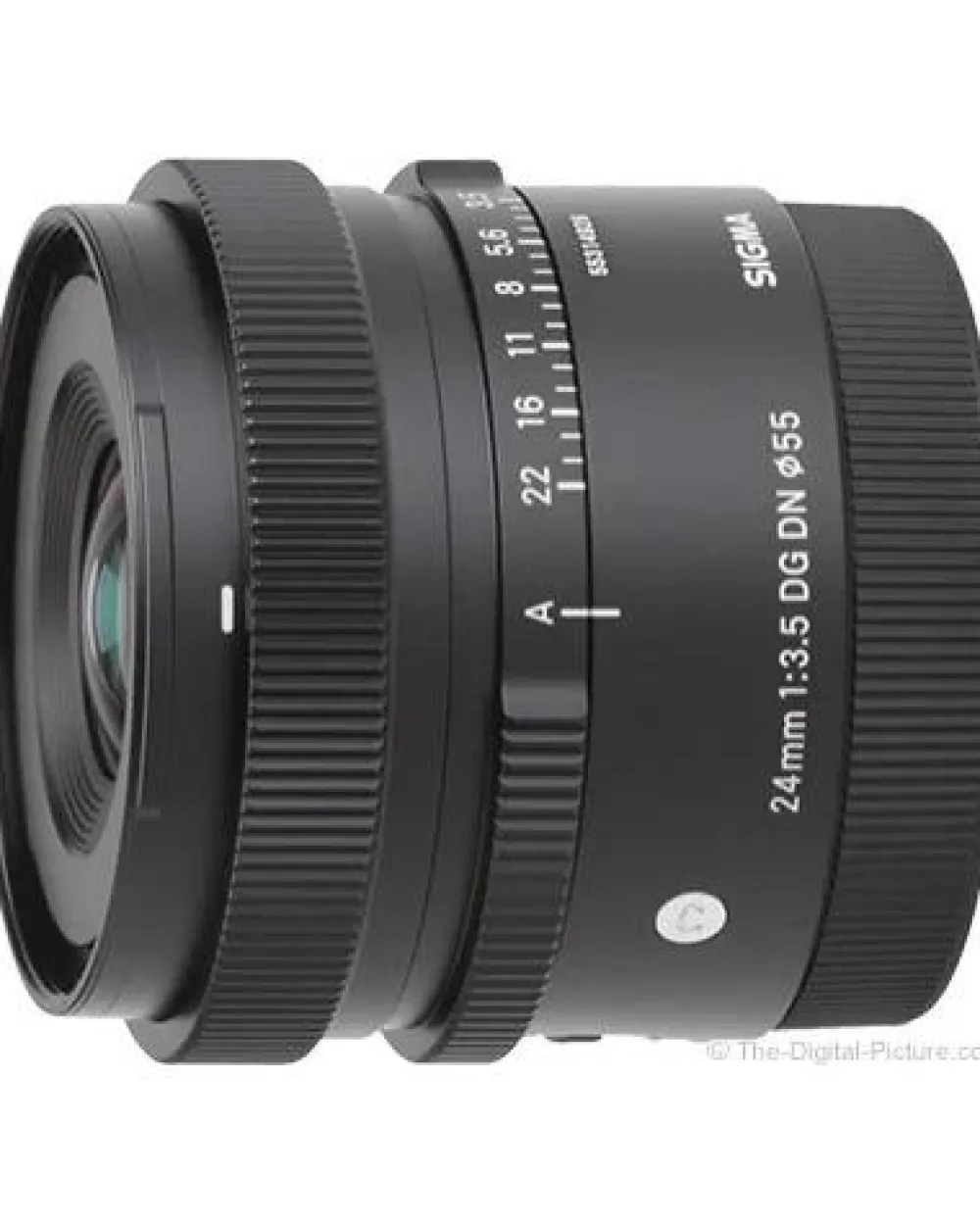

Sigma Wide Angle Prime | Mirrorless Lenses Only | 24mm f/3.5 DG Contemporary Black Lens (Sony FSE)

The high resolving power of the 24mm F3.5 DG | Contemporary covers the entire image from the center to the edges, which means photographers can rely on edge-to-edge sharpness at all apertures when shooting wide-angle scenes. With a minimum focus distance of around 10cm and a maximum reproduction ratio of 1:2, it enables photographers to explore a subject more freely, from capturing distant landscapes to photographing close-ups of smaller objects.

In addition to the attractive bokeh, it also gives photographers near-circular out-of-focus highlights, even at the edges of the frame. This helps create a close-up image of an in-focus subject with a blurred background, a technique that is very useful in a variety of settings.

The lens features the latest optical design optimized for mirrorless systems. This includes high-precision, glass-molded aspherical elements created with advanced processing technology, and SLD glass and high refractive index glass elements. Together they make it possible to combine high optical performance with compactness. In addition, the smooth focus drive system designed around a quiet and fast stepping motor also makes the 24mm F3.5 DG | Contemporary a desirable choice for shooting video.

The surface of molds for glass molding, which is a process that forms optical components by pressing glass materials at high temperatures, requires ultra-high precision. Sigma uses high-precision molds whose surfaces are controlled with an accuracy of ±5 nanometers (0.000005 mm) or smaller. High precision aspherical glass molded lenses archives both good aberration correction and compact lens size.

With a pairing with the 45mm F2.8 DG | Contemporary in mind, the 24mm F3.5 DG | Contemporary is compatible with the same filter size of 55mm, with a matching outermost diameter and similar overall lengths. With a combined weight of only 440g / 15.5oz., these two lenses can be used in tandem as part of a high-spec and compact camera system that covers a wide range of shooting situations.

The super multi-layer coating is combined with Sigma’s unique coating technology “NPC (Nano Porous Coating)”. The lens has been designed to be less susceptible to strong incident light such as backlight.

“NPC (Nano Porous Coating)” incorporates porous silica as the coating material. The porous silica layer has nano-sized holes with air inside. Having holes of this size enables a large reduction in the refractive index, allowing the reflectance to be lowered more than conventional anti-reflective coatings. As a result, reflected light causing flares and ghosting is sharply reduced, achieving clear image quality.

All I series lenses have an all-metal construction. The precision-cut aluminum parts not only give the barrel a sleek, stylish finish, but provide superb durability that improves the quality of the entire product. Metal materials are also used in internal structures that slide with the operation ring for added robustness. These high-precision components crafted with Sigma’s cutting-edge metalworking technology are also used in Sigma’s Cine Lens line-up for professional cinematographers and provide a tactile, ergonomic feel that make the lens a pleasure to use.

The cover ring between the focus ring and the aperture ring has hairline processing that is also used for the rear cylinder of the Art line. This covering functions as a finger hold when attaching or detaching the lens.

I series lenses are accompanied by a dedicated magnetic metal lens cap, in addition to a normal plastic cap. This dedicated metal cap clips to the front surface of the lens magnetically. It is no exaggeration to say that this meticulously crafted cap represents the finishing touch for the I series.

Inner focus system

To increase stability, this lens configuration uses movable internal lens elements that adjust focus without changing the length of the lens barrel.

Compatible with Lens Aberration Correction

Matching the optical characteristics of the lens, this function performs in-camera corrections of peripheral illumination, chromatic aberrations, distortion, and more, to further enhance image quality.

*Function available on supported cameras only. Available corrections or auto correction functionality may vary depending on the camera model.
*On cameras where lens aberration correction is controlled with ‘ON’ or ‘OFF’ in the camera menu, please set all aberration correction functions to ‘ON’ (AUTO).

Super Multi-Layer Coating

Sigma’s own Super Multi-Layer Coating suppresses flare and ghosting by preventing reflections with in the lens. All lenses in the current Sigma range feature this original technology. In digital cameras, flare and ghosting may also be caused by reflections between the image sensor and lens surfaces. Here too, Sigma’s Super Multi-Layer Coating is highly effective, assuring images of outstanding contrast.

Nano Porous Coating

NPC (Nano Porous Coating) incorporates porous silica as the coating material. The porous silica layer has nano-sized holes with air inside. Having holes of this size enables a large reduction in the refractive index, allowing the reflectance to be lowered more than conventional anti-reflective coatings. As a result, reflected light causing flares and ghosting is sharply reduced, achieving clear image quality.

Aperture ring

Aperture ring, designed to help users work intuitively.

Focus Mode Switch

Using this switch, it is possible to switch the focus mode between AF and MF.

A focus movement method of interchangeable lenses for mirrorless cameras in relation to the rotational angle of the focus ring during manual focusing. With “non-linear focus” the amount of focal point movement varies depending on the focus ring rotational speed. With linear focus, if the focus ring rotational angle is the same, the amount of focal point movement remains the same regardless of the focus ring rotational speed.

Stepping Motor

The lens is capable of smooth, quiet and high-speed AF made possible by a stepping motor, as well as supports Face/Eye Detection AF and video AF.

Mount with Dust and Splash Resistant Structure

The lens mount incorporates rubber sealing to protect the mount from dust and water drops.

Others

• Rounded diaphragm
• Compatible with high-speed autofocus
• Compatible with AF Assist (Sony E-mount only)
• High-precision, durable brass bayonet mount
• Support DMF and AF+MF
• Designed to minimize flare and ghosting
• Every single lens undergoes SIGMA’s proprietary MTF measuring system
• Magnetic metal lens cap
• “Made in Aizu, Japan” craftsmanship

Lens Construction  10 elements in 8 groups

Accessory Camera Wall  No

Edition Number  C021

Sensor Size  Full Frame

Angle Of View  84.1°

Number of Diaphagm blades  7 (rounded diaphragm)

Minimum Aperture  F22

Minimum Focusing Distance  10.8 cm / 4.3 in.

Maximum Magnification Ratio  1:2

Filter Size  55mm

Dimensions  Sony E-Mount: 64mm x 50.8mm / 2.5 in. x 2.0 in.

Weight  Sony E-Mount: 230g / 8.1 oz.



Sigma 24mm f/3.5 DG  Contemporary Lens for Sony E

• Front Lens Cap
• Rear Lens Cap
• Lens Hood
