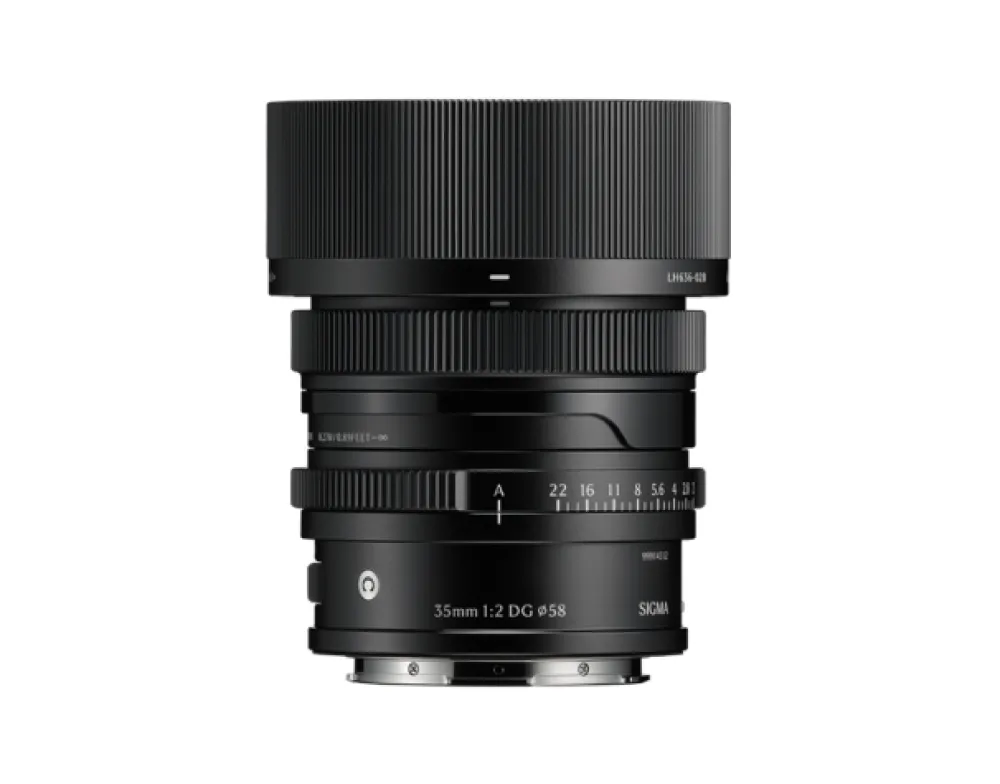

Sigma Wide Angle Prime | Mirrorless Lenses Only | 35mm f/2 DG Contemporary Black Lens (Sony FSE)

The 35mm F2 DG | Contemporary brings to the table the highest level of optical performance at a maximum aperture of F2 with a lens body of a size that matches a mirrorless system.

Axial chromatic aberration, a point of particular concern with a bright lens, is corrected with SLD glass, while an optimal placement of high-refractive index elements provides effective correction of various types of aberration while keeping the amount of glass used to a minimum. The use of three high-precision glass-molded aspherical lenses, which were made possible thanks to advanced production technology at the Aizu factory, Sigma’s only production site. These elements provide correction of spherical aberration and field curvature, and the fluctuation of aberration at the time of focusing. The lens design also provides a very good correction of sagittal coma aberration, making it capable of capturing details fine enough for it to be used for night sky photography.

Thanks to cutting edge optical design and advanced processing technology, the 35mm F2 DG | Contemporary offers consistent, high resolving power right across the frame.

The surface of molds for glass molding, which is a process that forms optical components by pressing glass materials at high temperatures, requires ultra-high precision. Sigma uses high-precision molds whose surfaces are controlled with an accuracy of ±5 nanometers (0.000005 mm) or smaller. High precision aspherical glass molded lenses archives both good aberration correction and compact lens size.

All I series lenses have an all-metal construction. The precision-cut aluminum parts not only give the barrel a sleek, stylish finish, but provide superb durability that improves the quality of the entire product. Metal materials are also used in internal structures that slide with the operation ring for added robustness. These high-precision components crafted with Sigma’s cutting-edge metalworking technology are also used in Sigma’s Cine Lens line-up for professional cinematographers and provide a tactile, ergonomic feel that make the lens a pleasure to use.

The cover ring between the focus ring and the aperture ring has hairline processing that is also used for the rear cylinder of the Art line. This covering functions as a finger hold when attaching or detaching the lens.

I series lenses are accompanied by a dedicated magnetic metal lens cap, in addition to a normal plastic cap. This dedicated metal cap clips to the front surface of the lens magnetically. It is no exaggeration to say that this meticulously crafted cap represents the finishing touch for the I series.

Inner focus system

To increase stability, this lens configuration uses movable internal lens elements that adjust focus without changing the length of the lens barrel.

Compatible with Lens Aberration Correction

Matching the optical characteristics of the lens, this function performs in-camera corrections of peripheral illumination, chromatic aberrations, distortion, and more, to further enhance image quality.

*Function available on supported cameras only. Available corrections or auto correction functionality may vary depending on the camera model.
*On cameras where lens aberration correction is controlled with ‘ON’ or ‘OFF’ in the camera menu, please set all aberration correction functions to ‘ON’ (AUTO).

Super Multi-Layer Coating

Sigma’s own Super Multi-Layer Coating suppresses flare and ghosting by preventing reflections with in the lens. All lenses in the current Sigma range feature this original technology. In digital cameras, flare and ghosting may also be caused by reflections between the image sensor and lens surfaces. Here too, Sigma’s Super Multi-Layer Coating is highly effective, assuring images of outstanding contrast.

Nano Porous Coating

NPC (Nano Porous Coating) incorporates porous silica as the coating material. The porous silica layer has nano-sized holes with air inside. Having holes of this size enables a large reduction in the refractive index, allowing the reflectance to be lowered more than conventional anti-reflective coatings. As a result, reflected light causing flares and ghosting is sharply reduced, achieving clear image quality.

Aperture ring

Aperture ring, designed to help users work intuitively.

Focus Mode Switch

Using this switch, it is possible to switch the focus mode between AF and MF.

A focus movement method of interchangeable lenses for mirrorless cameras in relation to the rotational angle of the focus ring during manual focusing. With “non-linear focus” the amount of focal point movement varies depending on the focus ring rotational speed. With linear focus, if the focus ring rotational angle is the same, the amount of focal point movement remains the same regardless of the focus ring rotational speed.

Stepping Motor

The lens is capable of smooth, quiet and high-speed AF made possible by a stepping motor, as well as supports Face/Eye Detection AF and video AF.

Mount with Dust and Splash Resistant Structure

The lens mount incorporates rubber sealing to protect the mount from dust and water drops.

Others

• Rounded diaphragm
• Compatible with high-speed autofocus
• Compatible with AF Assist (Sony E-mount only)
• High-precision, durable brass bayonet mount
• Support DMF and AF+MF
• Designed to minimize flare and ghosting
• Every single lens undergoes SIGMA’s proprietary MTF measuring system
• Magnetic metal lens cap
• “Made in Aizu, Japan” craftsmanship

Lens Construction  10 elements in 9 groups

Accessory Camera Wall  No

Edition Number  C020

Sensor Size  Full Frame

Angle Of View  63.4°

Number of Diaphagm blades  9 (rounded diaphragm)

Minimum Aperture  F22

Minimum Focusing Distance  27mm  / 10.6 in.

Maximum Magnification Ratio  1:5.7

Filter Size  58mm

Dimensions  Sony E-Mount: 70mm x 67.4mm / 2.8 in. x 2.7 in.

Weight  Sony E-Mount: 325g / 11.5 oz.



Sigma 35mm f/2  DG  Contemporary Lens for Sony E

• Front Lens Cap
• Rear Lens Cap
• Lens Hood
