Sirui Tripods / Heads | G-10KX Ball Head

PRODUCT HIGHLIGHTS

• Separate Knobs for Pan, Tilt, Tension
• 39.6 lb Load Capacity
• Arca-Style QR Clamp
• Includes Quick-Release Plate
• 90° Tilt, 360° Pan
• Aviation Quality Aluminium Alloy

OVERVIEW

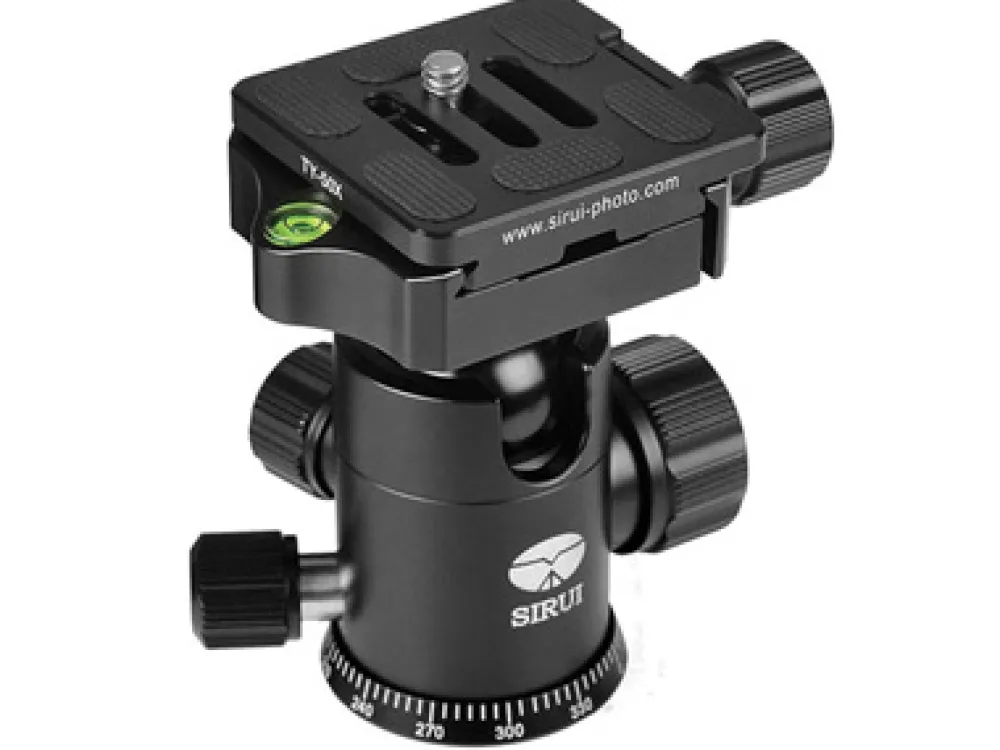

The Sirui G-10KX Ball Head is an extremely sturdy head with separate control knobs for pan, tilt, and tension, plus an Arca-style clamp for the included quick-release plate. The ball locks down extremely tightly thanks to the double-bevel locking system which allows support of cameras up to 39.6 lb and safe 90° tilting for portrait orientation. The quick-release clamp features a secondary release button that prevents any inadvertent disengagement of the camera/plate from the clamp, thereby adding to the head’s overall security and stability.

Three separate controls (pan, tilt and lock) allow a photographer to exercise extremely fine control over the orientation of the camera, whether it’s a DSLR, 35mm, medium-format camera, or even a camcorder. Pan, for instance, can be adjusted while the tilt stays locked, enabling precise movement that’s measurable via degree markers for panoramic photography at the panning base.

The G-10KX uses Computer Aided Manufacturing and an aircraft-grade aluminium alloy with a custom anodized surface treatment to ensure a durable, high-quality finish.

Precision Manufacturing

Sirui uses Computer Aided Manufacturing (CAM) to produce a support ball with tolerances within 0.01 mm of a perfect sphere. This uncompromising precision ensures superior performance and smooth operation for any type of 35 mm DLSR or medium format camera system

Superior Construction Material

Sirui ball heads are made of aviation quality aluminium alloy 7075-T6 and 6067-T6 for long life and maximum strength. Quick release plates are made from forged aluminium alloy. The forging technique produces high-density metals with much greater strength than die-cast methods. Optional model specific plates are available

Control

The panning base is designed with a 360° dial. Having a separate panning base lock knob provides greater accuracy for panning and panoramic shooting

Secure Locking

The patented safety lock design, and Sirui quick release plates, effectively prevent the camera from accidentally sliding off of the ball head. Most Arca-style quick release plates can be used on Sirui ball heads

Durable Surface

The custom anodized surface treatment makes all metal surfaces highly resistant to abrasions and produces a beautiful appearance

High Load Capacity

Superior locking force allows support of loads up to 39.6 lb

Easy Levelling

Dual bubble levels allow precise horizontal levelling for critical shooting situationsSPECIFICATIONS

Ball Sphere Diameter 1.14″ (29 mm)
Base Diameter 1.73″ (42 mm)
Load Capacity 39.6 lb (18 kg)
Quick Release Yes, with Arca-style plate
Spirit Level 2x
Tension Control Yes
Separate Panning Lock Yes
Pan 360°
Tilt 90°
Head to Tripod Mounting Thread 3/8″-16 Female
Camera Mount Thread Size 1/4″-20″
Height 3.5″ (88 mm)
Weight 0.57 lb (0.26 kg)

• Sirui G-10KX Ball Head
• Quick Release Plate
• Pouch
• Allen Key
