Sony Video Accessories | Microphones / Headphones / Speakers | ECM-M1 Compact Camera-Mount Digital Shotgun Mic

AT A GLANCE

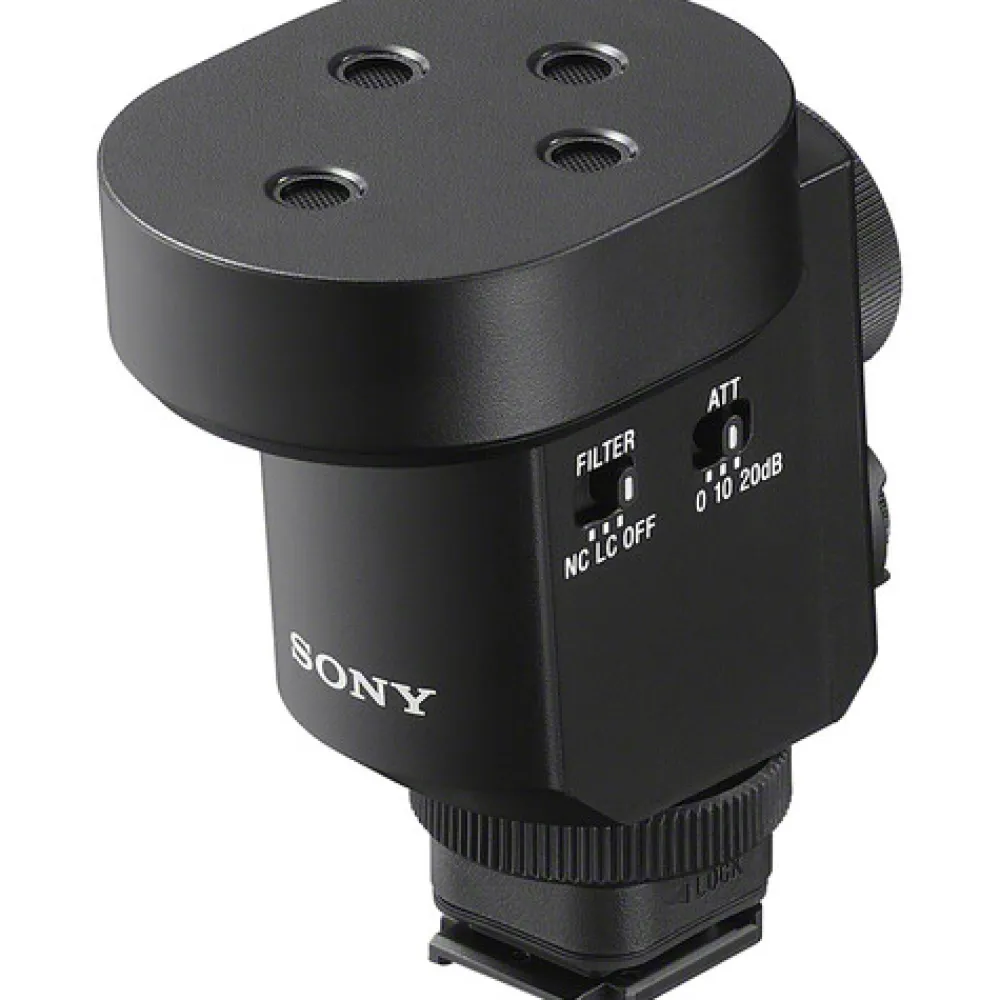

Featuring an even more compact form factor than its predecessors and four diamond-patterned capsules, the Sony ECM-M1 is a camera-mount digital shotgun microphone designed for creators using Sony cameras equipped with the Multi Interface Shoe needing to switch between interview shooting and social media content all in one device. Internal digital signal processing and advanced beamforming render clear recordings with the ability to toggle noise-cut and low-cut filters. Superdirectional pickup pattern with both front and rear pickup has eight selectable modes for the ultimate recording flexibility.

Eight Selectable Pickup Patterns and Recording Modes



Using an onboard dial control, choose between eight different recording modes, including stereo, to suit different recording scenarios. Because the embedded condensers are laid out in a diamond orientation, the ECM-M1 can isolate the left, right, rear, or front audio sources and record separate channels simultaneously. Selectable modes include superdirectional, unidirectional, omnidirectional, superdirectional (rear), superdirectional (front and rear), super directional (front and rear separate), stereo, and ultra-directional.

Superdirectional and Ultra-Directional: Focused Front Area

Ideal for vlogs or interviews where your subject in front of the camera is the main focus, the superdirectional pattern collects sound from a focused area in front of the microphone, effectively suppressing sounds from off-axis and behind the camera. Choose between front and rear superdirectional orientations. Ultra-directional compresses this area even further for a more limited pickup range.

Unidirectional: Wide Frontal Range

Perfect for multi-person conversations, the unidirectional pattern captures sound from a wide field in front of the microphone, while minimizing pickup from behind.

Omnidirectional: Sound from Any Direction

The omnidirectional pattern picks up audio equally from all directions, useful for recording environmental sounds or the voice of the camera operator.

Front and Rear Recording

Record from both the front and rear of the camera, a mode especially useful during interviews where you wish to capture the interviewer’s voice or reactions. You can also pick up the front and rear audio in two separate channels for more intuitive adjustment during postproduction. This same technology allows you to record a stereo safety track automatically.

Noise Filters, Onboard Switch Control



Controls for pickup pattern, gain, and audio level are easy to reach on the rear and side panels and visible at a glance for quick adjustments during shooting. The ECM-M1’s noise-cut filter and low-cut filter are very effective at reducing extraneous ambient noises and cutting out low-frequency noise through the use of digital signal processing algorithms, maximizing audio quality at the recording stage and reducing the need for complex post-processing.

Compact and Portable Mic



The microphone’s 2.8″ total length allows you to use it while wide-angle lenses, viewfinders, and gimbals where rig space is precious.

Cable-Free Connection, Vibration Suppressing Design



No cables are required for connection to a wide range of Sony cameras equipped with an MI shoe. The absence of connecting cables means that no noise can be transmitted to the microphone mechanically via cables and connectors. The ECM-M1 features an advanced shock- and vibration-suppressing design to effectively minimize low-frequency or handling noise, which can degrade audio quality.

Supplied Windscreen, Dust and Moisture Resistant

The ECM-M1 comes with a furry windshield that’s easily detachable and effective with reducing wind noise for capturing crisp audio on outdoor shoots. Its dust and moisture resistant design makes it even more ideal for challenging weather conditions.

Primary Applications  Audio for Video, Location Sound

Form Factor  Camera-Mount

Intended Sound Sources  Speech/Voice-Over, Dialogue

Sound Field  Mono, Stereo

Capsule  4 x Electret Condenser

Polar Pattern  Multi-Directional, Omnidirectional, Supercardioid, Unidirectional

Pattern Selection  Switched

Orientation  End Address

High-Pass Filter  None

Tone Adjustment  Low Cut

Gain Adjustment  0 dB to 20 dB

Indicators  None

On-Board Controls  Gain/Sensitivity, LF, Polar Pattern

Windscreen  Windsock/Windjammer (Included)

Frequency Range  40 Hz to 20 kHz

Maximum SPL  120 dB SPL

Sensitivity  -20 dBFS at 1 kHz

Signal-to-Noise Ratio  14 dB SPL

Analog Output  None

USB & Digital Output 1 x Sony Multi Interface Shoe (on Mic)

Headphone Output  None

Wireless  None

Sample Rate  48 kHz

Digital Signal Processing  Noise Reduction

OS Compatibility  None

Mobile App Compatible  No
*As of July, 2023: Check with manufacturer for the most up-to-date compatibility

Color  Black

Mounting  Camera/Shoe-Mount (via Integrated Hardware)

Mounting Thread Size  Included Mount Has No Threading

Included Case  Pouch

Included Filters  None

Operating Temperature  32 to 104°F / 0 to 40°C

Dimensions  H: 2.8 x W: 1.6 x L: 2.5″ / H: 72.2 x W: 40 x L: 64.4 mm

Weight  2.3 oz / 65 g (Microphone)

Sony ECM-M1 Compact Camera-Mount Digital Shotgun Microphone
• Furry Windscreen
• Multi Interface Shoe Cap
• Storage Pouch
