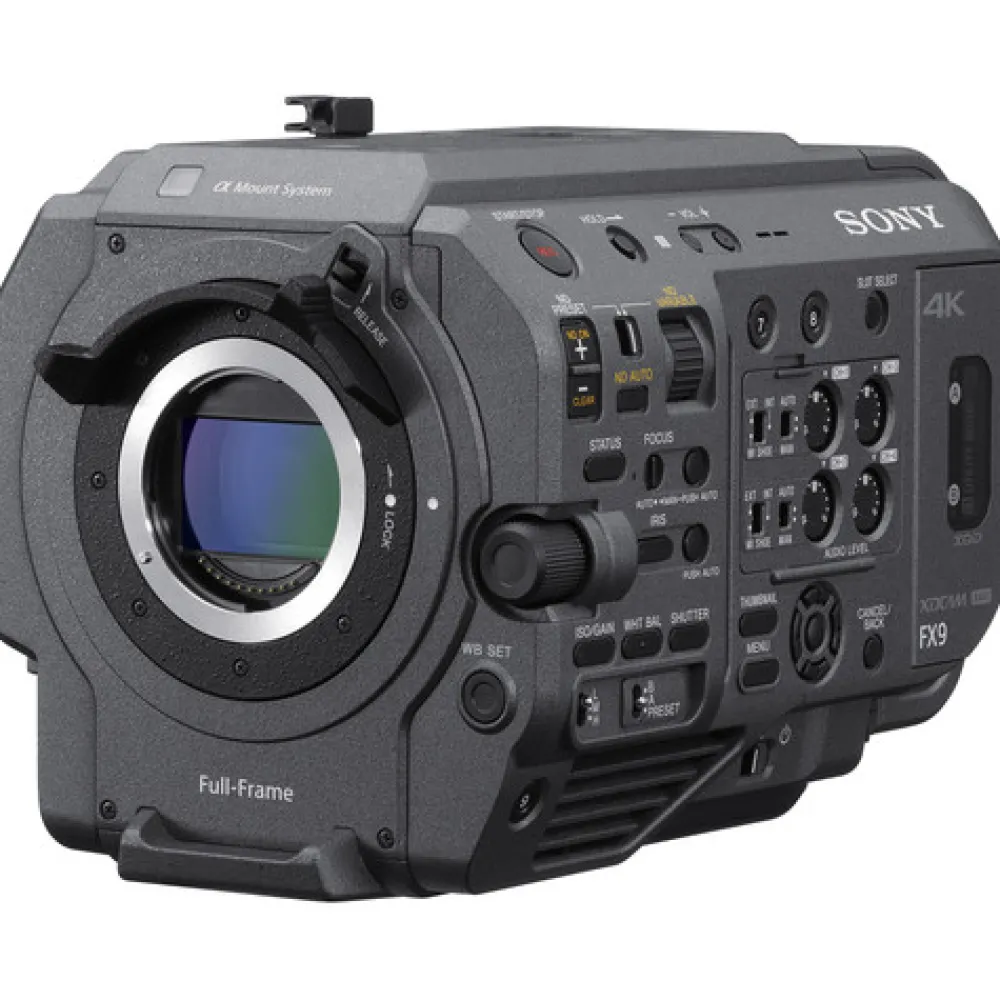

Sony Video Cameras | PXW-FX9 XDCAM 6K Full-Frame Camera System (Body)

AT A GLANCE

The PXW-FX9 input and output features include 12G/6G-SDI and HDMI outputs for 4K video, a 3G-SDI output for HD, and genlock and timecode when using a multicamera setup. The Fast Hybrid AF autofocus system allows for accurate focus and even allows facial detection to automatically detect human form with 561 points of detection. Advanced image stabilization is achieved using the PXW-FX9’s internal gyroscope for shots so smooth it’ll look like you used a gimbal. Its 4-channel audio recording allows you to use external microphones and record ambient sound with the internal mics simultaneously.

The camera features a 15-stop dynamic range, supports dynamic HDR, hybrid log gamma mode (HLG), and records 10-bit 4:2:2 to dual XQD media card slots that support simultaneous and relay recording, as well as multiple backup recording modes that utilize proxy files. The camera can record UHD (3840 x 2160) and HD (1920 x 1080) internally at a selectable frame rate from 1 fps up to 60 fps in XAVC-I, XAVC-Long, and MPEG HD formats. Its 7-stop electronic variable ND filter can perform in auto or manual mode, smoothly adjusting from 1/4 to 1/128 density. The camera’s default S-Cinetone color look offers the same soft, vivid tone as with Sony’s VENICE camera.

In addition to its wide dynamic range, its enhanced color and light features include a dual base ISO of 800/4000 with a maximum ISO up to 102,400, which is helpful when in low-light situations or using a slower lens. Other improvements with the latest firmware include improved white balancing in sunlight with a more natural look, user-created 3D LUTs, improved AF, audio improvements, USB tethering, T-value metadata, password enhancements, and an S35 2K imager scan mode.

The FX9 includes an integrated Multi-Interface (MI) shoe and comes with a BP-U35 battery, BC-U1A battery charger, AC adapter with power cord, body cap, viewfinder, eyepiece, remote control, and USB cable. The PXW-FX9 is also compatible with the separately available XDCA-FX9 extension unit, which provides ENG shoulder-style support, networking features, and a slot for an optional wireless audio receiver.

Firmware Version 3.0

The v3.0 firmware update offers:



• S700 protocol over Ethernet
• B4 lens support:
  • S16 scanning mode (up to 1080p at rates up to 180 fps)
  • B4 lens control using the LA-EB1 lens mount adapter
  • ALAC (Auto Lens Aberration Correction) function
• Assignable center scan
• Anamorphic lens support
• Clip naming (Cam ID + Reel#)
• Real-time tracking (touch-tracking autofocus)
• Additional items can be modified in the status screen
• SR Live for HDR metadata support
• Recording proxy clip real-time transfer
• Camcorder network setup using smartphone app
• Remote control using smartphone over USB tethering
• USB tethering activated using iOS 14 iPhone and iPad

Note:

The network features above also support C3 Portal (only available in specific countries).

6K CMOS Exmor R Sensor

The PXW-FX9’s oversampled full-frame 6K sensor provides recording in DCI 4K, UHD, and HD resolutions. Powerful image processing with debayering and down-sampling ensures image quality beyond the limits of conventional Super 35mm sensors. The back-illuminated CMOS image sensor also uses Sony’s Exmor R technology for improved sensitivity and noise reduction. Compared to a 4K Super 35mm sensor, the FX9’s 6K sensor has over twice the surface area while providing a wider angle of view and shallower depth of field.

15 Stops of Dynamic Range

The FX9 offers an exceptional 15+ stops of dynamic range, allowing for creative freedom in color grading and post. Camera operators can concentrate on framing the scene they want while relying upon the FX9 to capture every nuance and detail using 4K 4:2:2 10-bit internal recording.

ISO Control

The FX9 features a base sensitivity of ISO 800, providing the optimal dynamic range for typical documentary applications such as shooting outside or in brightly lit interiors. A secondary high base sensitivity of ISO 4000 excels in low-light conditions such as early morning and evening shoots while maintaining superb image quality and whenever you’re using slow lenses. The FX9’s extended ISO range is 320 to 102,400.

Electronic ND Filter

Sony’s built-in electronic variable neutral density (ND) filter can be set to auto, or adjust filter density manually in smooth increments from 1/4 to 1/128 as you shoot, for perfectly exposed images without affecting depth of field as lighting conditions change. Use higher-density settings with a slower shutter speed for artistic effects.

Recording Formats

Depending on the project, the FX9 has a selection of recording formats. XAVC-I with 422 10-bit quality at a higher 600 Mb/s in 60p. XAVC-Long for longer recording time in smaller file size. The traditional MPEG HD codec is also available. All files will be recorded onto XQD media cards.

Adjustable Frame Rates

Choose your desired frame rate from 1 up to 60 fps for quick- and slow-motion footage. The FX9 creates an immersive image with a wide-angle look and shallower depth of field provided by its full-frame sensor in combination with quick and slow motion. It also offers a quality priority setting that maximizes Full HD slow-motion image quality with advanced oversampling technology.

S-Cinetone Look

S-Cinetone is the default look of FX9 that’s tuned to meet the requirements of today’s content creators with rich midrange colors, alluring facial tones, and a softer tonal look developed with the same expertise as Sony’s world-leading VENICE digital cinematography camera. S-Cinetone means that straight out of the camera your content looks fresh and vivid, with subjects that really stand out while retaining plenty of latitude in post-production, thanks to the high-performance full-frame image sensor.

Fast Hybrid AF

Effortlessly track fast-moving subjects with pin-sharp focus, even when using wide-lens aperture settings to maintain a shallow depth of field with the camera’s full-frame sensor. Enhanced Fast Hybrid AF combines phase-detection AF for fast, accurate subject tracking with contrast AF for exceptional focus accuracy. In addition, Face Detection intelligently recognizes and locks on to human faces. The dedicated 561-point phase-detection AF sensor covers approximately 94% of the whole image area width and 96% of the height, allowing for consistently accurate, responsive AF tracking, even with fast-moving subjects.

Seven-level AF transition speeds from fast-switching between subjects as quickly as possible to slow, where speed is reduced to fit a more measured shooting style, such as a historical TV drama.

Five-level AF subject shift sensitivity ranges from locked-on, ignoring other moving subjects in the frame, to responsive that switches focus from one subject to another—ideal for snapping between race cars as they speed by.

Advanced Image Stabilization

Advanced image stabilization information means even handheld footage can be transformed with Sony Catalyst Browse/Catalyst Prepare software in post-production to look as smooth as if it were shot with a gimbal. Unlike in-camera or lens stabilization, metadata generated by the FX9’s built-in gyro allows you to creatively choose the balance between the level of shake compensation and the resolution of trimmed 4K imagery. This feature is also compatible with any E-mount lens and allows for far faster processing than conventional NLE stabilization workflows.

4-Channel Audio Recording

The FX9 offers audio capabilities with independent control dials for each channel. In applications such as an interview, 4-channel audio recording enables simultaneous use of an external microphone for recording ambient sounds, and the built-in microphone for ambient sound and voice memos by the operator.

Inputs and Outputs

The FX9 is equipped with various outputs including a 12G-SDI and an HDMI for 4K output. Also, it has a 3G-SDI for HD output to expand its monitoring flexibility. For multicamera operation, Genlock and TC In/Out terminals are available.

Recording Modes

The FX9 has a selection of backup recording modes that will help ensure the recording is safe. Simul Rec will enable simultaneous HD recording onto two media cards. The 4K/HD Sub Rec mode will allow 4K recording on one card and MPEG HD recording on another card. XAVC Proxy Rec is also available, offering a 9 Mb/s small size proxy file which will be easily sent via the network. Also, a maximum 28-second Cache Rec is available to prevent missing any shot.

Multi-Interface (MI) Shoe

Sony’s flexible Multi-Interface (MI) shoe provides power, signal connections, and coordinated on/off switching with compatible Sony accessories.

XDCAM Air and GPS Support

Use the FX9 with Sony’s XDCAM air service for camera control, to stream to the Sony Cloud, and to upload proxy footage from the field, saving valuable post-production time. A GPS function both records location information in video clips and displays it via XDCAM air.

Optional Extension Unit

Further extend the capabilities of the FX9 with the optional XDCA-FX9 extension unit that optimizes camera weight distribution and ergonomics for comfortable shoulder-style shooting—ideal for ENG and documentary applications. The extension unit also adds advanced networking for streaming/file transfers and a slot-in for a wireless audio receiver.

Lens Mount  Sony E

Lens Communication  Yes, with Autofocus Support

Sensor Resolution  Actual: 20.5 Megapixel
Effective: 19 Megapixel

Image Sensor  35.7 x 18.8 mm (Full-Frame) CMOS

Image Stabilization  Supplies Stabilization Metadata

Built-In ND Filter  Mechanical Filter Wheel with Clear, 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64) ND Filters and a 2 to 7 Stop Electronic ND Filter

Internal Filter Holder  No

Capture Type  Video Only

Shutter Type  Electronic Rolling Shutter

Shutter Speed  1/8000 to 1 Second

ISO Sensitivity  800 to 4000 (Extended: 320 to 102,400)

Gain  -3 to 18 dB

Shutter Angle  5.6 to 360°

Advertised Dynamic Range  15 Stops

Signal-to-Noise Ratio  57 dB

White Balance  2000 to 15,000K

Internal Recording Modes  XAVC-I 4:2:2 10-Bit
4096 x 2160 at 23.98/25/29.97/50/59.94 fps
3840 x 2160 at 23.98/25/29.97/50/59.94 fps [240 to 600 Mb/s] 1920 x 1080p at 23.98/25/29.97/50/59.94/100/120 fps [89 to 222 Mb/s] 1920 x 1080i at 50/59.94 fps [112 Mb/s] XAVC-L 4:2:2 10-Bit
3840 x 2160 at 23.98/25/29.97/50/59.94 fps [100 to 150 Mb/s] 1920 x 1080p at 23.98/25/29.97/100/120 fps [25 to 50 Mb/s] 1920 x 1080i at 50/59.94 fps [50 Mb/s] MPEG HD422 4:2:2 10-Bit
1920 x 1080p at 23.98/25/29.97 fps [50 Mb/s] 1920 x 1080i at 50/59.94 fps [50 Mb/s] XAVC Proxy 4:2:0 10-Bit
1920 x 1080 [9 Mb/s] 1280 x 720 [6 to 9 Mb/s] 640 x 360 [3 Mb/s]

External Recording Modes Raw 16-Bit via Proprietary Module
 4096 x 2160 from 1 to 59.94 fps
 3840 x 2160 from 1 to 59.94/100/120 fps
 2048 x 1080 at 59.94/100/120/150/180 fps

Sensor Crop Modes  Super35 / APS-C

Fast-/Slow-Motion Support  Yes

Gamma Curve  HDR-HLG, S Cinetone, Sony S-Log 3, Standard

Built-In Microphone Type  Mono

Audio Recording  XAVC: 4-Channel 24-Bit 48 kHz LPCM Audio
 Proxy: 2-Channel AAC Audio

IP Streaming  Yes

Media/Memory Card Slot  Slot 1: XQD
  Slot 2: XQD
  Dual Slot: SD/SDHC/SDXC/Memory Stick Duo Hybrid

Video I/O  1 x BNC (12G-SDI) Output
 1 x BNC (3G-SDI) Output
 1 x HDMI 2.0 Output

Audio I/O  2 x XLR 3-Pin Mic/Line (+48 V Phantom Power) Input
 1 x 1/8″ / 3.5 mm TRS Stereo Headphone Output

Power I/O  1 x Barrel (18 to 20.5VDC) Input

Other I/O  1 x BNC (Genlock) Data Input
 1 x BNC (Timecode) Data Input/Output
 1 x 2.5 mm Sub-Mini (LANC) Control
 1 x Micro-USB (USB 3.2 / 3.1 Gen 1) Data

Wireless  2.4 / 5 GHz Wi-Fi 5 (802.11ac)

Mobile App Compatible  Yes
*As of April, 2023: Check with manufacturer for the most up-to-date compatibility

Global Positioning (GPS, GLONASS, etc.)  None

Monitor Size  3.5″

Resolution  2,760,000 Dot

Display Type  Included External Touchscreen LCD

Viewfinder Type  Optional, Not Included

Focus Type  Auto and Manual Focus

Focus Mode  Automatic, Manual Focus

Battery Type  Sony BP-U Series

Power Consumption  35.2 W

Tripod Mounting Thread  3/8″-16 Female (Bottom)
1/4″-20 Female (Bottom)

Accessory Mount  1 x Intelligent Hot Shoe
 1 x Cold Shoe Mount
 2 x 3/8″-16 Female
 6 x 1/4″-20 Female

Material of Construction  Magnesium Alloy

Dimensions (W x H x D)  5.7 x 5.6 x 9″ / 146 x 142.5 x 229 mm (Without Protrusions)

Weight  10.58 lb / 4.8 kg (With Battery, Grip, Handle, Monitor, Recording Media, Viewfinder)
 4.41 lb / 2.00 kg (Body Only)



• Sony PXW-FX9 XDCAM 6K Full-Frame Camera System (Body Only)
• AC Adapter
• Power Cord
• BP-U35 Battery
• Sony BC-U1A Battery Charger / AC Adapter for BP-U90, U60, U60T, U30
• Viewfinder with Rod and Clamp
• Eyepiece
• USB Cable
• Grip Remote Control
• Len Mount Cap
• Accessory Shoe Kit
• Tape Measure Hook
• 2 x Circular Clamp Spacer
• 5 x Screw
