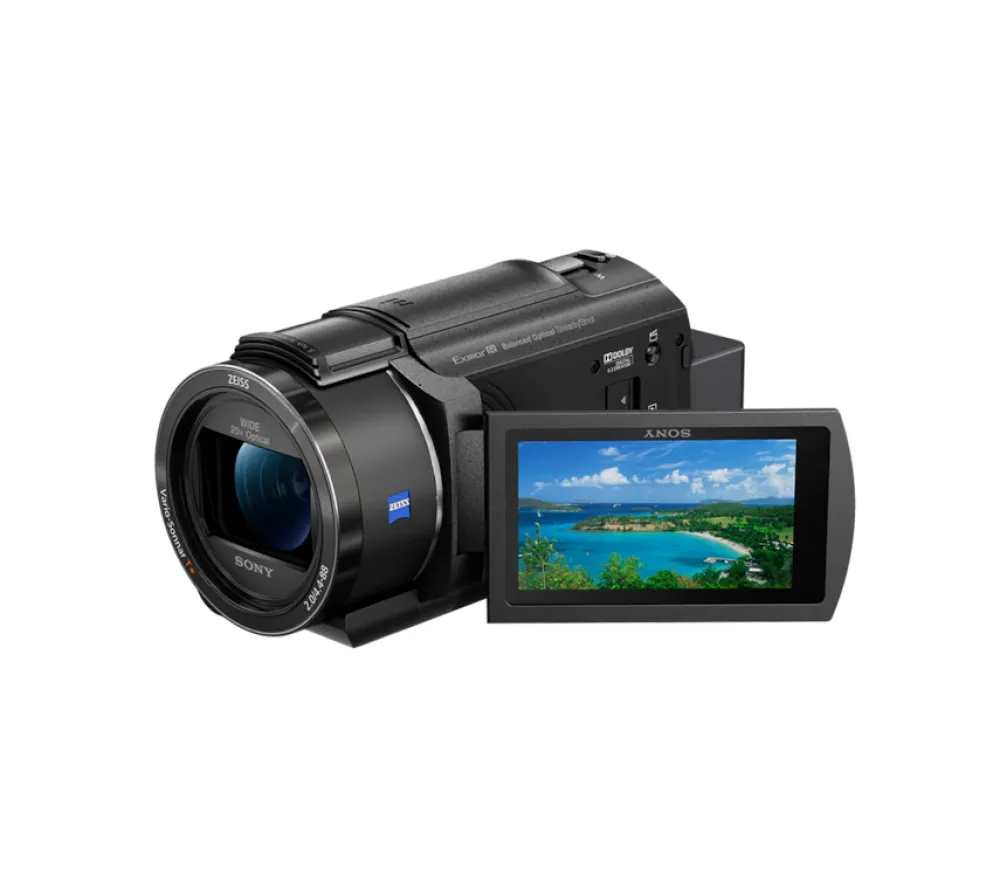

Sony Video Cameras | Video Cameras | FDR-AX43AB 4K Ultra HD Handycam Camcorder #

AT A GLANCE

Gimbal mechanism inside

Sony’s Balanced Optical SteadyShot™ is a unique image stabiliser, with a gimbal mechanism about 13 times more effective than other optical systems28. Capture smooth, professional-looking images, even at full zoom or while running, with no need for bulky external gimbals. In HD shooting mode, it further reduces the effect of camera shake with 5-axis Intelligent Active mode compensating for vibration across pan, tilt, roll, pitch, and yaw.

4K image quality

Capture your movies with the stunning realism and detail of 4K (3840 x 2160). With four times more detail than Full HD, all your images are enhanced by the subtle qualities that bring images to vibrant life.

Up to 26.8mm wide angle lens

Whether you’re shooting movies or still images, the class-leading wide-angle lens can help you capture more of landscapes and indoor scenes, when you don’t have enough room to step back. Even without a wide conversion lens, the camcorder shoots as wide as 26.8mm30 (16:9 aspect ratio) in movie mode.

The latest-generation image sensor exclusively for 4K

The new generation sensor is designed for optimal 4K recording. With pixel sizes around 1.6x larger than previous models29, the AX43A captures beautiful images with less noise, even in the extremes of low and bright lighting conditions.

ZEISS® Vario-Sonnar T* lens for 4K

The AX43A features a custom lens, developed for the highest quality 4K imaging throughout its entire wide-to-telephoto range. The use of AA (advanced aspherical) lens elements ensures, even with the compact design, each scene is faithfully captured, while ED (Extra-low Dispersion) glass delivers accurate colour without aberration. The ZEISS® T* Coating further enhances image quality by reducing unwanted reflections, including ghosting and flare.

Lock-on AF

Enhance your tracking of moving subjects with a simple touch. Simply select your subject on the LCD touchscreen, and the AX43A will automatically adjust the tracking frame and lock onto even fast-moving targets, for precise autofocusing.

Super-sampled Full HD playback

Enhance your viewing experience even without a 4K television. Using super-sampling, the camera automatically down-converts 4K footage to exceptionally detailed Full HD.

Rapid AF response to capture decisive moments

Fast Intelligent AF achieves speedy, accurate contrast-detection autofocus by minimising lens motion, predicting the AF range, and accelerating lens drive, thereby improving response so you can capture more fleeting moments.

Face Detection and Smile Shutter

Use Face Detection to optimise focus, exposure, and colour for key people in a  shot, even selfies, so you only need compose and narrate the scene. Prioritise a face simply by touching it on the LCD. And with Smile Shutter, you can set the camera to automatically capture still shots of those magical, fleeting, smiles even while recording movies.

Extensive zoom shooting capabilities

With the high quality, stabilised, 20x optical zoom there’s plenty of range to capture  your subject. And, when shooting far away, our Clear Image Zoom uses a proprietary algorithm to deliver optical-zoom quality even at up to 40x (30x in 4K mode)

High Speed recording for high-quality slow motion

With support for high frame rate capture up to 100fps/120fps in Full HD, you can create slow-motion recordings, elevating every movement in startling detail. Simply import your video in the free PlayMemories Home, or other popular editing software, to reveal smooth, sharp action in even the most everyday activities.

4K Time-lapse Capture

With Time-lapse Capture, shoot stills of a scene over a period of time with a chosen interval between shots. The resulting images can be combined at high resolution into a time-lapse movie on a PC, and viewed with a simple variable-speed preview function on the camera, even in high-quality 4K.

5.1ch surround sound microphone

Record clear sound that accurately captures the atmosphere of the scene, and enjoy surround sound playback on your home theatre system. Level meters on the LCD panel provide visual monitoring for each channel level.

Dual Video Recording

Record two movie formats at the same time—one in the maximum-quality XAVC S or AVCHD format and another in MP4 format. That way, you’ve got a small file ready for instant upload, plus a professional-grade file for further editing.

One-touch remote and one-touch sharing

One-touch remote lets you use your smartphone or tablet as a viewfinder and remote control for a digital camera, and One-touch sharing lets you transfer your photos and videos from your camera. You can control your camera from your smartphone to take a photo from a previously out-of-reach spot, or simply be in your own group shot, as well as transfer them instantly to your smartphone for sharing on SNS. Additionally by installing Imaging Edge Mobile app on an NFC enabled smartphone or tablet, you can even skip the pairing sequences simply by touching your device to the camera.

SENSOR TYPE  1/2.5 type (7.20 mm) back-illuminated Exmor R CMOS Sensor

EFFECTIVE PIXELS (VIDEO)  approx. 8.29 Megapixels (16:9)1

EFFECTIVE PIXELS (STILL IMAGE)  approx. 8.29 Megapixels (16:9) / approx. 6.22 Megapixels (4:3)

IMAGE PROCESSOR  BIONZ X image processor

LENS TYPE  ZEISS Vario-Sonnar T*

FILTER DIAMETER  55 mm

LENS COVER  Auto

APERTURE  F2.0-3.8

FOCAL DISTANCE  f=4.4-88 mm

FOCAL LENGTH (35MM EQUIVALENT) (VIDEO)  f=1 1/16-21 1/8 inch 1, f=26.8-536.0 mm (16:9)

FOCAL LENGTH (35MM EQUIVALENT) (STILL IMAGE)  f=1 1/16-21 1/8 inch (16:9), f=1 5/16-25 7/8 inch (4:3), f=26.8-536.0 mm (16:9), f=32.8-656.0 mm (4:3)

MINIMUM FOCUS DISTANCE  approx. 1 cm (Wide), approx. 80 cm (Tele), approx. 13/32 inch (Wide), approx. 31 1/2 inch (Tele)

IRIS DIAPHRAGM  6 blades

OPTICAL ZOOM  20x

CLEAR IMAGE ZOOM  4K: 30x, HD: 40×2

DIGITAL ZOOM  250x

SCREEN TYPE  7.5 cm (3.0 type) Xtra Fine LCD™ display (921 600 dots) Wide (16:9)

TOUCH PANEL  Yes

BRIGHTNESS CONTROL  Yes (Menu)

IMAGE STABILISATION TYPE  Balanced Optical SteadyShot w/ Intelligent Active mode (5-axis)

FOCUS TYPE  Contrast AF

FOCUS MODE  Auto / Manual (Touch Panel)

FOCUS AREA  Full range Focus / Spot Focus

FAST INTELLIGENT AF  Yes

LOCK-ON AF  Lock-on AF

MANUAL FOCUS ASSIST  Peaking Display

 EXPOSURE MODE  Auto, Flexible Spot (Touch Panel), Manual (Menu)

METERING MODES  Multi-segment / Spot

EXPOSURE COMPENSATION  AE Shift (Touch Panel)

LOW LUX MODE  Yes

AUTO IRIS CONTROL  F2.0-F11

MANUAL IRIS CONTROL  F2.0-F11

MANUAL EXPOSURE ASSIST  Zebra Pattern Display

BACKLIGHT COMPENSATION  Yes (Auto)

GAIN CONTROL  Auto

AGC LIMIT  Yes

MINIMUM ILLUMINATION  4K: Standard: 9 lux (1/50 Shutter Speed), HD: Standard: 6 lux (1/50 Shutter Speed), 4K: Low Lux 1.8 lux (1/25 Shutter Speed), HD: Low Lux 1.2 lux (1/25 Shutter Speed), 4K: Standard: 9 lux (1/60 Shutter Speed), HD: Standard: 6 lux (1/60 Shutter Speed), 4K: Low Lux 1.8 lux (1/30 Shutter Speed), HD: Low Lux 1.2 lux (1/30 Shutter Speed)

Shutter Speed

AUTO CONTROL RANGE  1/6-1/10000, 1/8-1/10000

STANDARD  1/50-1/10000, 1/60-1/10000

MANUAL IRIS CONTROL (PHOTO MODE)  1/25-1/10000, 1/30-1/10000

MANUAL SHUTTER  1/6-1/10000, 1/8-1/10000

SMOOTH SLOW  1/215-1/10000, 1/250-1/10000

WHITE BALANCE MODES  Auto / Onepush / Outdoor / Indoor

WHITE BALANCE SHIFT  Yes

MEDIA TYPE  XAVC S 4K (100Mbps): SDHC Memory Card (4GB or over, UHS-I U3 or Higher) / SDXC Memory Card (UHS-I U3 or Higher), XAVC S 4K (60Mbps): SDHC Memory Card (4GB or  over, Class10 or Higher) / SDXC Memory Card (Class10 or Higher), XAVC S HD: SDHC Memory Card (4GB or over, Class10 or Higher) / SDXC Memory Card (Class10 or Higher), AVCHD, Still: Memory Stick PRO Duo (Mark 2), Memory Stick PRO-HG Duo, Memory Stick XC-HG Duo, SD / SDHC / SDXC Memory Card (Class 4 or Higher)

RECORDING FORMAT (VIDEO)  XAVC S format: MPEG4-AVC / H.264, AVCHD format ver.2.0 compatible: MPEG4-AVC / H.264, MP4: MPEG-4 AVC / H.264

VIDEO RESOLUTION XAVC S 4K: 3840×2160 / 25p,24p, XAVC S HD: 1920×1080 / 50p,25p,24p, AVCHD: 1920×1080 / 50p(PS),25p(FX,FH),24p(FX,FH),50i(FX,FH), 1440×1080 / 50i(HQ,LP),  MP4: 1280×720 / 25p, XAVC S 4K: 3840×2160 / 30p,24p, XAVC S HD: 1920×1080 / 60p,30p,24p, AVCHD: 1920×1080 / 60p(PS),30p(FX,FH),24p(FX,FH),60i(FX,FH), 1440×1080 / 60i(HQ,LP), MP4: 1280×720 / 30p

VIDEO RECORDING RATE (ABR / VBR) XAVC S 4K: approx. 100 Mbps, XAVC S 4K: approx. 60 Mbps, XAVC S HD: approx. 50 Mbps, AVCHD PS: approx. 28 Mbps / FX: approx. 24 Mbps / FH: approx. 17 Mbps / HQ: approx. 9 Mbps / LP: approx. 5 Mbps, MP4: approx. 3 Mbps

MICROPHONE  Built-in Zoom Microphone

WI-FI  Yes (Wi-Fi Compatible, IEEE 802.11b/g/n (2.4GHz band))

NFC  Yes (NFC forum Type 3 Tag compatible)

MULTI CAMERA CONTROL  Yes

BATTERY TYPE  InfoLITHIUM with AccuPowerTM Meter System (V Series)

POWER CONSUMPTION (LCD)  4K: 5.1W22

POWER CONSUMPTION (VIEWFINDER)  -22

POWER REQUIREMENTS  6.8V/7.3V (battery pack), 8.4V (AC Adaptor)

CHARGE ON CAMCORDER(CHARGING TIME WITH SUPPLIED BATTERY)  Yes (approx. 3h 25min)23

USB CHARGING  DC 5V 1500mA



• Sony FDR-AX43A 4K Ultra HD Handycam Camcorder
• Sony NP-FV70 V-Series Rechargeable Battery Pack (1960mAh, 6.8-8.4V)
• AC Adapter
• Power Cord
• Micro-HDMI Cable
• Micro-USB Cable
