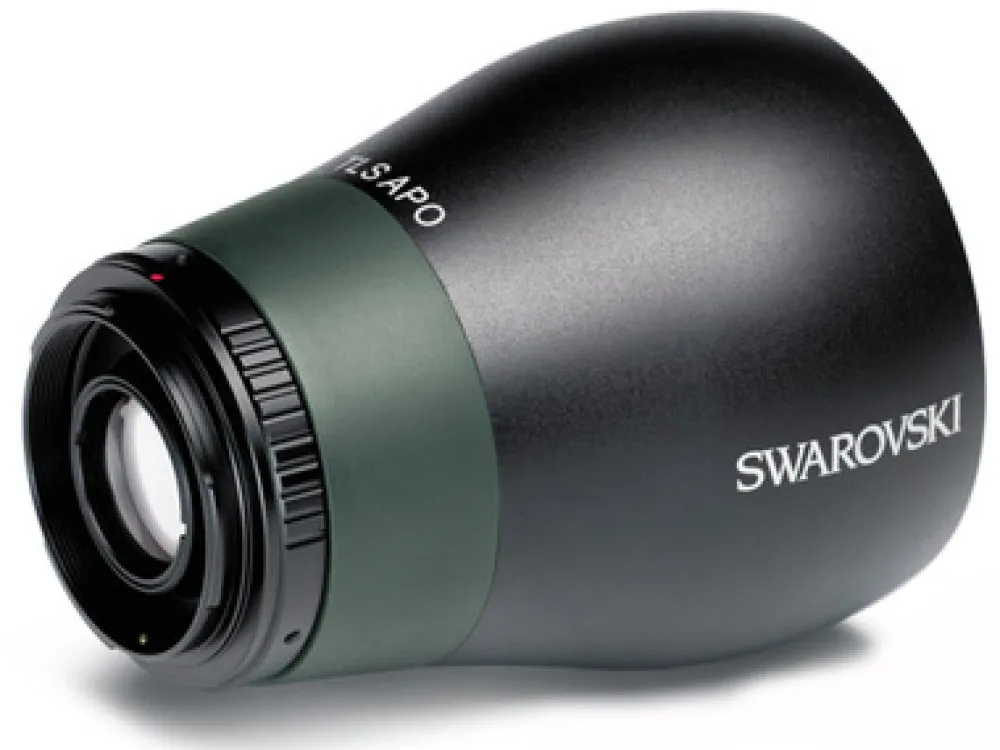

Swarovski Normal Lens, Adapters & Converters | TLS 30mm ATX/STX Adapter for APSC/DX Sensors

AT A GLANCE

• For use with APS-Sensor DSLR and Mirrorless Cameras
• Apochromatic 30mm Pancake Lens
• Compatible with ATX/STX
• Included Eyepiece Adaptor Sleeve
• Camera and T-Ring Required

DESCRIPTION

The Swarovski TLS APO 30mm Digiscoping Adaptor for ATX / STX spotting scopes is a proprietary adaptor used to connect a DSLR or mirrorless camera body with APS-size sensors to the viewing module of ATX / STX series spotting scopes. When the TLS APO, T2 adaptor, and camera body are mounted to the spotting scope eyepiece, users are treated to a truly stunning digiscoping experience. The TLS APO has a 30mm apochromatic pancake lens that perfectly aligns the camera sensor with the focal plane of the transmitted image. Regardless of the camera used, you will capture contrast-rich and sharp video and still images using the premium optics of your Swarovski spotting scope. A camera and T2 camera adaptor are required to complete the Swarovski digiscoping system, and are not included.

Compatibility

• ATX / STX spotting scopes
• DSLR and mirrorless cameras with APS-size sensors

Optical Performance

• The apochromatic optics ensure that image quality from your scope will not be degraded by the TLS APO adaptor. Capture the same stunning images with your digital camera that you see through the eyepiece

Functionality

• The choice for professionals and advanced amateurs in any imaging field, the TLS APO digiscoping adaptor is a quick and convenient way to use your world-class Swarovski optics to capture stunning still images and video. Switching between the spotting scope’s modular eyepiece and a camera rig is easy due to the slide-down mount system on the adaptor sleeve

SPECIFICATIONS

Focal Length 750 – 1800 mm (with 65mm or 85mm scope); 900 – 2100 mm (with 95mm scope)
Package Weight 1.3 lb
Box Dimensions (LxWxH) 9.6 x 5.3 x 3.8″
