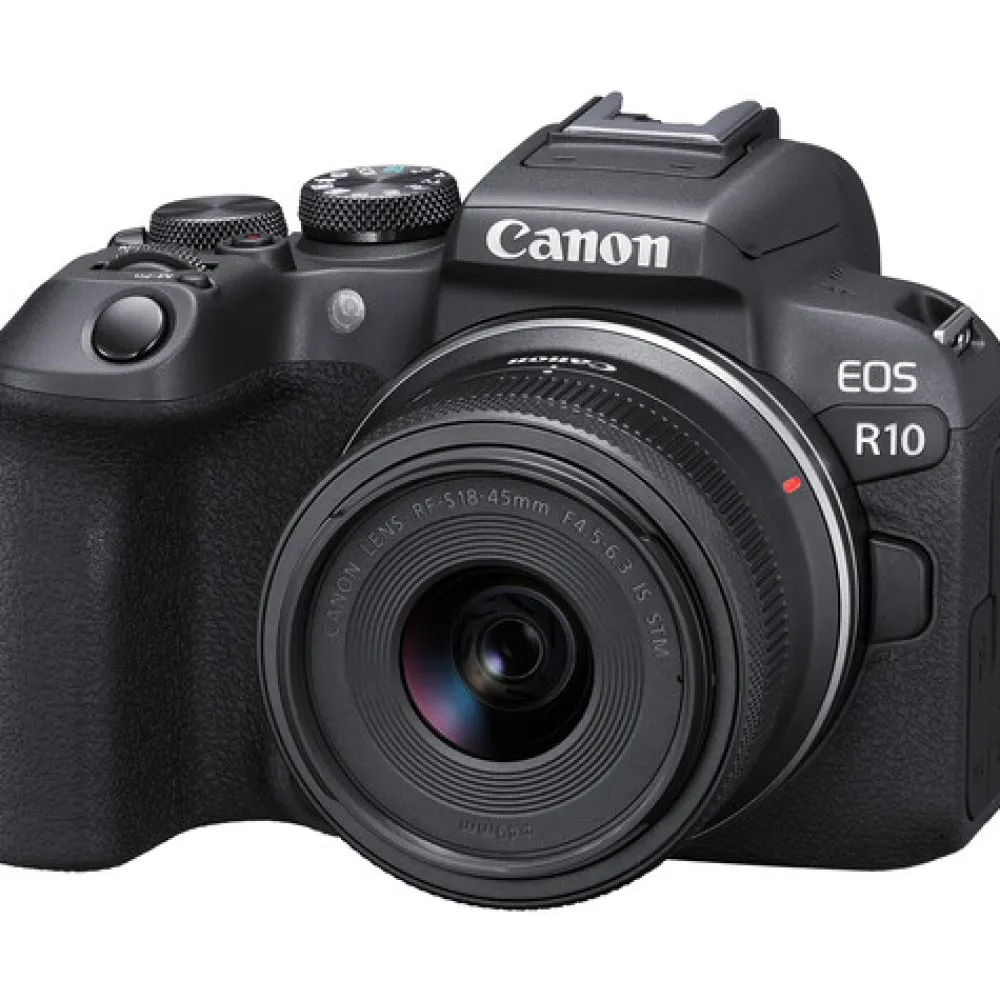

Canon Interchangeable Lens Cameras | Mirrorless Cameras Only | EOS R10 Mirrorless Camera with RF-S 18-45mm STM

Emphasizing portability without sacrificing on capability, the Canon EOS R10 is a sleek mirrorless camera with a hybrid ethos. Adept in both photo and video worlds, the R10 brings an APS-C sensor to the R system.







24.2MP APS-C CMOS Sensor and DIGIC X Processing

APS-C Comes to EOS R

Sitting at a sweet-spot in terms of resolution, the 24.2MP APS-C CMOS sensor strikes a fine balance between resolution, file size, speed, and low-light performance. This sensor is suitable for general photo tasks along with UHD 4K recording, as the file sizes are manageable enough to allow for quick continuous burst shooting and extended video recording.

DIGIC X Processor

Borrowed from the R3, the R10 sports a DIGIC X image processor to perform a variety of high-speed tasks, ranging from continuous shooting to high-resolution video recording. In terms of high-speed shooting, the R10 supports up to 23 fps continuous shooting with a silent electronic shutter or 15 fps with a mechanical shutter, with AF and AE readings before each frame. The processor also helps to realize a broad sensitivity range from ISO 100-32000, which is expandable up to ISO 51200 for working in difficult lighting conditions.

UHD 4K Video Recording

Beyond stills, the R10’s sensor also offers high-res UHD 4K 60p internal video using the full width of the sensor and the ability to work with 10-bit 4:2:2 sampling. A 6K recording area can also be used for oversampled 4K shooting at 30p for improved sharpness, reduced moiré, and lower noise. And, for slow-motion playback, 120p recording is supported at up to Full HD resolution.

HDR-PQ recording is possible, too, for in-camera HDR production and external recording, via the micro-HDMI port, which supports a clean 4K output at up to 60 fps. Also, unlimited recording times are possible, too, and the R10 features an external microphone port as well as a multi-function shoe for wide accessories compatibility.

Dual Pixel CMOS AF II

Carried over from the EOS R3, the advanced Dual Pixel CMOS AF II system features 651 automatic AF points that covers the entire sensor area, for faster, more responsive, and more precise focusing performance. This phase-detection focusing system also has enhanced subject detection and tracking, with the ability to intelligently recognize people, animals, and vehicles and tracking will automatically lock onto these subjects and maintain sharp focus throughout burst captures. Dual Pixel AF II’s low-luminance limit focuses down to an impressive -4 EV for accurate focusing even in nighttime conditions.

Body Design

Intuitive Construction

• Bright, clear 2.36m-dot OLED electronic viewfinder is featured for high-resolution eye-level viewing. This 0.95x-magnification finder is benefitted by the fast processing for virtually no lag and a quick 120-fps refresh rate can be used for vivid, realistic motion portrayal.
• A 3.0″ vari-angle LCD is also available and benefits working high, low, and front-facing angles. The flexible position is complemented by a touchscreen interface and the clear 1.04m-dot resolution allows for vivid playback and live view monitoring.
• Single SD memory card slot is rated for UHS-II card speeds to support fluent 4K video recording and high-speed continuous shooting.

Flexible Connectivity

Wired and wireless connectivity options are available, allowing for multiple methods of transferring photos and videos, as well as for remotely controlling the camera. Physically, the camera features a USB Type-C port along and a micro-HDMI port, as well as a 3.5mm microphone port to benefit video recording. In terms of wireless, 2.4GHz Wi-Fi and Bluetooth is available for transferring and remote camera control.

Next-Generation Multi-Function Shoe

An update to a conventional hot shoe, the Multi-Function Shoe adds a row of pins at the front of the design to permit greater accessory functionality as well as provide power to select accessory types that traditionally rely on separate batteries. This updated shoe is compatible with select accessories, including the ST-E10 Speedlite Transmitter, DM-E1D Stereo Microphone, and AD-P1 Smartphone Link Adapter, as well as the AD-E1 Multi-Function Shoe Adapter to provide compatibility with legacy shoe-mounted accessories.

RF-S 18-45mm f/4.5-6.3 IS STM Lens

An all-around lens for APS-C R Series mirrorless cameras, this compact 18-45mm zoom offers an equivalent focal length range of 28.8-72mm, which covers wide-angle to portrait-length perspectives. Plus, a retractable design makes it ideal for everyday carry where you want to stuff the camera in a bag.

Canon has taken care with the optical design, using two aspherical elements and the Super Spectra Coating to minimize aberrations and reduce ghosting and flare. An Optical Image Stabilizer will help ensure sharp imagery, providing up to 4 stops of shake correction. Additionally, the lead screw-type STM AF system is fast enough to keep up with speedy continuous focus while being smooth and quiet enough to work for video.

Imaging

Lens Mount  Canon RF

Sensor Resolution Actual: 25.5 Megapixel
 Effective: 24.2 Megapixel

Sensor Type 22.3 x 14.9 mm (APS-C) CMOS

Crop Factor 1.6x

Image Stabilization Digital (Video Only)

Built-In ND Filter  None

Capture Type  Stills & Video

Exposure Control

Shutter Type Electronic Shutter, Mechanical Focal Plane Shutter

Shutter Speed Mechanical Shutter  1/4000 to 30 Seconds
  Electronic Shutter  1/4000 to 30 Seconds

Bulb/Time Mode Bulb Mode

ISO Sensitivity Photo  100 to 32,000 in Manual, Auto Mode (Extended: 100 to 51,200)

Metering Method Center-Weighted Average, Evaluative, Partial, Spot

Exposure Modes Aperture Priority, Manual, Program, Shutter Priority

Exposure Compensation -3 to +3 EV (1/3, 1/2 EV Steps)

Metering Range -2 to 20 EV

Continuous Shooting Electronic Shutter  Up to 23 fps at 24.2 MP for up to 70 Frames (JPEG) / 43 Frames (Raw)
 Mechanical Shutter  Up to 15 fps at 24.2 MP for up to 460 Frames (JPEG) / 157 Frames (Raw)

Interval Recording Yes

Self-Timer 2/10-Second Delay

Still Image Capture

Aspect Ratio 1:1, 3:2, 4:3, 16:9

Image File Format C-RAW, HEIF, JPEG, Raw

Internal Video Capture

Recording Modes H.265/MP4 4:2:2 10-Bit
UHD 4K (3840 x 2160) up to 59.94p
Full HD (1920 x 1080) up to 119.88p
H.264/MP4 4:2:0 8-Bit
UHD 4K (3840 x 2160) up to 59.94p
Full HD (1920 x 1080) up to 119.88p

Gamma Curve HDR-PQ

Built-In Microphone Type Stereo

Audio Recording MP4: 2-Channel AAC Audio

External Video Capture

IP Streaming Yes

Interface

Media/Memory Card Slot  Single Slot: SD/SDHC/SDXC (UHS-II)

Video I/O  1 x Micro-HDMI Output

Audio I/O  1 x 1/8″ / 3.5 mm TRS Stereo Microphone Output

Other I/O  1 x USB Type-C (USB 2.0) Input/Output

Wireless 2.4 GHz Wi-Fi (802.11b/g) Bluetooth

Global Positioning (GPS, GLONASS, etc.)  None

Monitor

Size  3.0″

Resolution  1,040,000 Dot

Display Type  Free-Angle Tilting Touchscreen LCD

Viewfinder

Type Built-In Electronic (OLED)

Resolution 2,360,000 Dot

Eye Point  22 mm

Coverage  100%

Magnification  Approx. 0.95x

Diopter Adjustment  -3 to +1

Focus

Focus Type Auto and Manual Focus

Focus Mode Continuous-Servo AF, Manual Focus, Single-Servo AF

Autofocus Points  Photo, Video
 Phase Detection: 651

Autofocus Sensitivity  -4 to +20 EV

Flash

Built-In Flash No

Maximum Sync Speed 1/250 Second

Flash Compensation -3 to +3 EV (1/3, 1/2 EV Steps)

Dedicated Flash Systeme TTL

External Flash Connection Hot Shoe

Environmental

Operating Temperature 32 to 104°F / 0 to 40°C

Operating Humidity  0 to 85%

General

Battery Type 1 x LP-E17 Rechargeable Lithium-Ion

Tripod Mounting Thread  1 x 1/4″-20 Female (Bottom)

Dimensions (W x H x D) 4.8 x 3.5 x 3.3″ / 122.5 x 87.8 x 83.4 mm

Weight 13.5 oz / 382.2 g (Body Only)
15.1 oz / 429.2 g (Body with Battery and Memory)

LENS

Focal Length 18 to 45mm (35mm Equivalent Focal Length: 29 to 72mm)

Maximum Aperture f/4.5 to 6.3

Minimum Aperture f/32

Lens Mount Canon RF

Lens Format Coverage APS-C

Angle of View 74° 20′ to 33° 40′

Minimum Focus Distance 7.9″ / 20 cm

Maximum Magnification 0.16x

Optical Design 7 Elements in 7 Groups

Diaphragm Blades 7, Rounded

Focus Type Autofocus

Image Stabilization Yes

Filter Size 49 mm (Front)

Dimensions (ø x L) 2.7 x 1.7″ / 68.9 x 44.3 mm

Weight 4.6 oz / 130 g

• Canon EOS R10 Mirrorless Camera
• RF-S 18-45mm f/4.5-6.3 IS STM Lens
• Canon LP-E17 Lithium-Ion Battery Pack
• Canon LC-E17 Charger for LP-E17 Battery Pack
• Battery Pack Cover
• AC Cable
• Canon R-F-5 Camera Cover
• ER-R10 Camera Strap
• ER-R10 Camera Strap
• ER-SC2 Shoe CoverER-SC2 Shoe Cover
