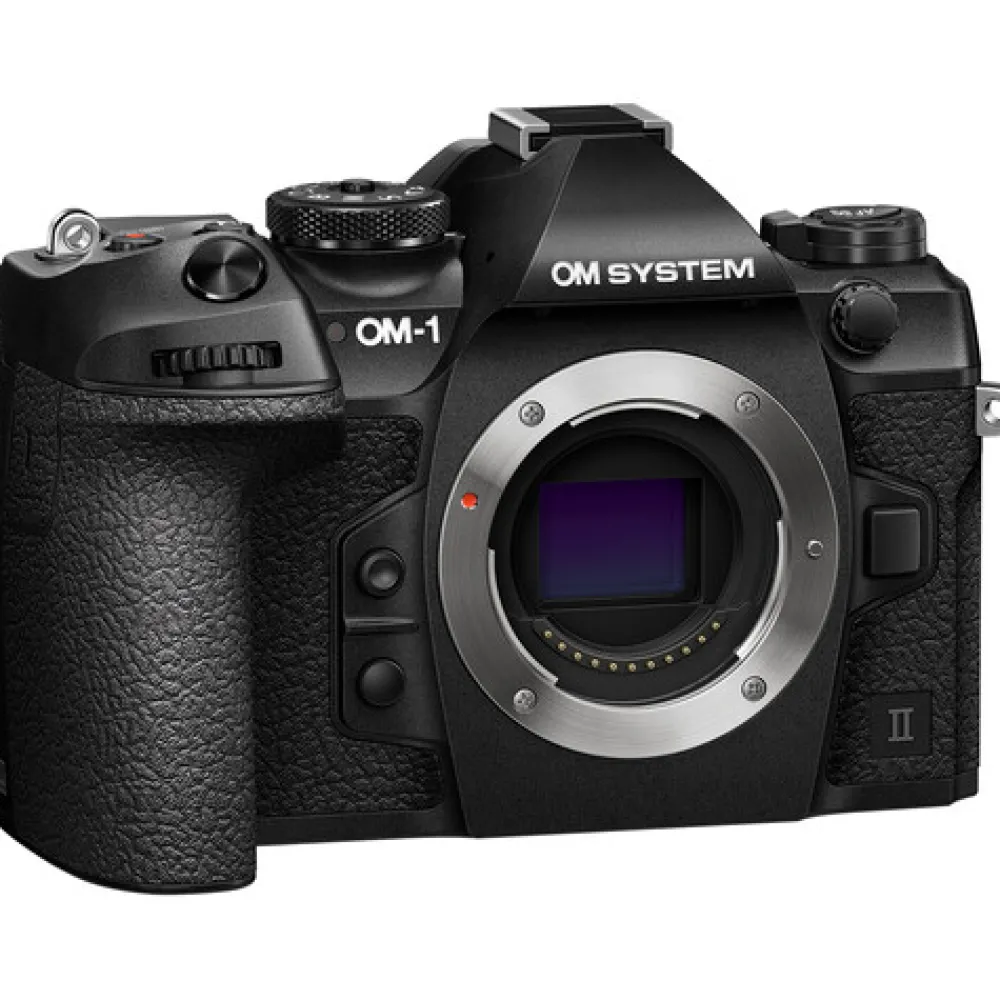

OM System Interchangeable Lens Cameras | Mirrorless Cameras Only | OM-1 Mark II Mirrorless Camera Body

AT A GLANCE

• 20MP Stacked BSI Live MOS MFT Sensor
• DCI/UHD 4K 60p 12-Bit Video Recording
• 10 fps Shooting, 120 fps with E. Shutter
• Cross Quad Pixel Phase-Detection AF
• 5.76m-Dot OLED Electronic Viewfinder
• 3.0″ 1.62m-Dot Swivel Touchscreen LCD
• 5-Axis In-Body Image Stabilization
• High-Res Shot, Live ND & Composite Modes
• IP53 Weather-Sealed & Freezeproof Design
• Dual UHS-II SD Card Slots

The first flagship to carry the OM SYSTEM name, the OM-1 Mark II is a revamped second iteration of the proven Micro Four Thirds mirrorless camera. Its 20MP stacked BSI Live MOS sensor and TruePic X processor deliver high-quality captures, speedy autofocus, and excellent low-light performance with a native ISO range of 200 to 102,400. Primed to give you a closer view of your subject due to the crop factor of the Micro Four Thirds system, the OM-1 Mark II excels in wildlife and nature photography. When you’re shooting handheld, the sharpness of your images is greatly improved by the 5-axis in-body image stabilization. Altogether, the OM-1 Mark II provides users mobility, precision, and a reliable workhorse camera for image and video capturing.



Among the noteworthy upgrades of the OM-1 Mark II are enhanced AI subject detection for humans, live graduated neutral density filters, updated menu configuration, 14-bit raw output, and rubberized dials.

Cross Quad Pixel AF

1053 individual focus points are made available by the OM-1 Mark II’s comprehensive Cross Quad Pixel autofocus system, allowing the camera to catch focus nearly anywhere on the sensor. With this design, the camera automatically detects subjects such as birds, humans, animals, cars, airplanes, and trains in order to keep them in focus and track their movements. This Cross Quad Pixel AF algorithm paired with the TruePic X processor promises a high-speed, reliable focusing performance.



Notable Mark II Upgrades

• 20% increase in image stabilization and 8.5 EV stops of compensation
• Rubberized dials for a more tactile feel
• Menu button can be programmed to Delete, making it so you don’t have to remove your left hand from your lens
• Triple the amount of tones in your images with 14-bit raw output
• Improved blackout-free sequential shooting
• Vertical video support
• Live GND8 and ND128 Filtering
• Improved Human AI subject detection AF



Designed for the Elements

IP53 rated, the OM-1 Mark II offers superior weather protection and withstands some of the harshest conditions in the field. Its tough construction renders the camera freezeproof, dust and splash resistant, and operable at temperatures as low as 14°F.

Video Capabilities

DCI & UHD 4K video recording are supported at up to 60p and 10-bit 4:2:0 sampling. Full HD recording is possible at high-speed rates up to 240 fps for slow-motion playback.



Vertical video is now available, opening up more compositional options when shooting and saving you time in post production.



Live ND

Supporting up to ND128, this function digitally simulates the effects of an optical neutral density filter so you can create slow shutter speed effects in your images. With Live ND, you can see the effects through the viewfinder and on the LCD monitor.



Useful Features

5.76m-dot OLED electronic viewfinder for clear eye-level shooting



3.0″ 1.62m-dot swivel touchscreen LCD to enable an incredible range of viewing capabilities while capturing

Dual UHS-II SD card slots for extended shooting situations

Focus stacking up to 15 shots, focus bracketing up to 999 shots

AI Subject Detection AF

• Humans
• Birds
• Dogs
• Cats
• Cars
• Motorcycles
• Airplanes
• Helicopters
• Trains

Lens Mount  Micro Four Thirds

Sensor Resolution  Actual: 22.9 Megapixel
Effective: 20.4 Megapixel (5184 x 3888)

Image Sensor  17.4 x 13 mm (Four Thirds) BSI MOS

Sensor Crop (35mm Equivalent)  Crop Factor: 2x

Image Stabilization  Sensor-Shift, 5-Axis

Built-In ND Filter  No

Capture Type  Stills & Video

Shutter Type   Mechanical Focal Plane Shutter and Electronic Rolling Shutter

Shutter Speed  Mechanical Shutter  1/8000 to 60 Seconds
 Electronic Shutter  1/32000 to 60 Seconds
 Electronic Front Curtain Shutter  1/320 to 60 Seconds

Bulb/Time Mode  Bulb & Time Mode

ISO Sensitivity Range  Photo/Video  200 to 25,600 in Manual, Auto Mode (Extended: 80 to 102,400)

Metering Method  Center-Weighted Average, Highlight, Multi-Zone, Spot

Exposure Modes  Aperture Priority, Manual, Program, Shutter Priority

Exposure Compensation  -5 to +5 EV (1/3, 1/2, 1 EV Steps)

Metering Range  -2 to 20 EV

White Balance  2000 to 14,000K
 Presets: AWB, Custom, Flash, Fluorescent, Overcast, Shade, Sunlight, Tungsten, Underwater

Continuous Shooting  Up to 120 fps at Maximum Resolution

Interval Recording  Yes

Aspect Ratio  1:1, 3:2, 4:3, 16:9

Image File Format  JPEG, Raw

Bit Depth  12-Bit

Media/Memory Card Slot  Dual Slot: SD/SDHC/SDXC (UHS-II)

Video I/O  1x Micro-HDMI Output

Audio I/O 1x 1/8″ / 3.5 mm TRS Stereo Microphone Input
  1x 1/8″ / 3.5 mm TRS Stereo Headphone Output

Power I/O  1x USB-C Input/Output

Other I/O  1x USB-C Data Input/Output (Shared with Power Input)
 1x PC Flash Sync Output

Wireless  2.4 / 5 GHz Wi-Fi 5 (802.11ac), Bluetooth 4.2

Mobile App Compatible  Yes: Android & iOS
App Name: OM Image Share
Functionality: Access Stored Files, Remote Control, View Live Feed

Global Positioning (GPS, GLONASS, etc.)  GPS
 *Via Connected Smartphone

Monitor Display Size  3″

Resolution  1,620,000 Dot

Display Type  Articulating Touchscreen LCD

Viewfinder Type  Electronic (OLED)

Resolution  5,760,000 Dot

Eye Point  21 mm

Coverage  100%

Magnification  Approx. 1.48x

Diopter Adjustment  -4 to +2

Focus Type  Auto and Manual Focus

Focus Mode  Continuous-Servo AF, Manual Focus, Single-Servo AF

Autofocus Points  Photo, Video
 Phase Detection: 1053

Built-In Flash/Light  No

Flash Modes  Fill In, Manual, Off, Red-Eye Reduction, Slow Sync

Maximum Sync Speed  1/250 Second

Flash Compensation  -3 to +3 EV (1/3, 1/2, 1 EV Steps)

Dedicated Flash System  TTL

External Flash Connection  Shoe Mount, PC Terminal

Battery  1x BLX-1 Rechargeable Lithium-Ion (Included)
  • Approx. 500 Shots

Shoe Mount  1x Hot Shoe

Tripod Mounting Thread  1x 1/4″-20 Female (Bottom)

Material of Construction  Magnesium Alloy

Operating Conditions  14 to 104°F / -10 to 40°C at 30 to 90% Humidity

Storage Conditions  -4 to 140°F / -20 to 60°C at 10 to 90% Humidity

Dimensions (W x H x D)  5.3 x 3.6 x 2.9″ / 134.8 x 91.6 x 72.7 mm

Weight  1.1 lb / 511 g (Body Only)

• Olympus OM-1 MK II Digital Camera Body
• Olympus BLX-1 Lithium-Ion Battery
• F-7AC AC Adapter
• Shoulder Strap
• CB-USB13 Cable
• FL-LM3 Flash
• Manual
