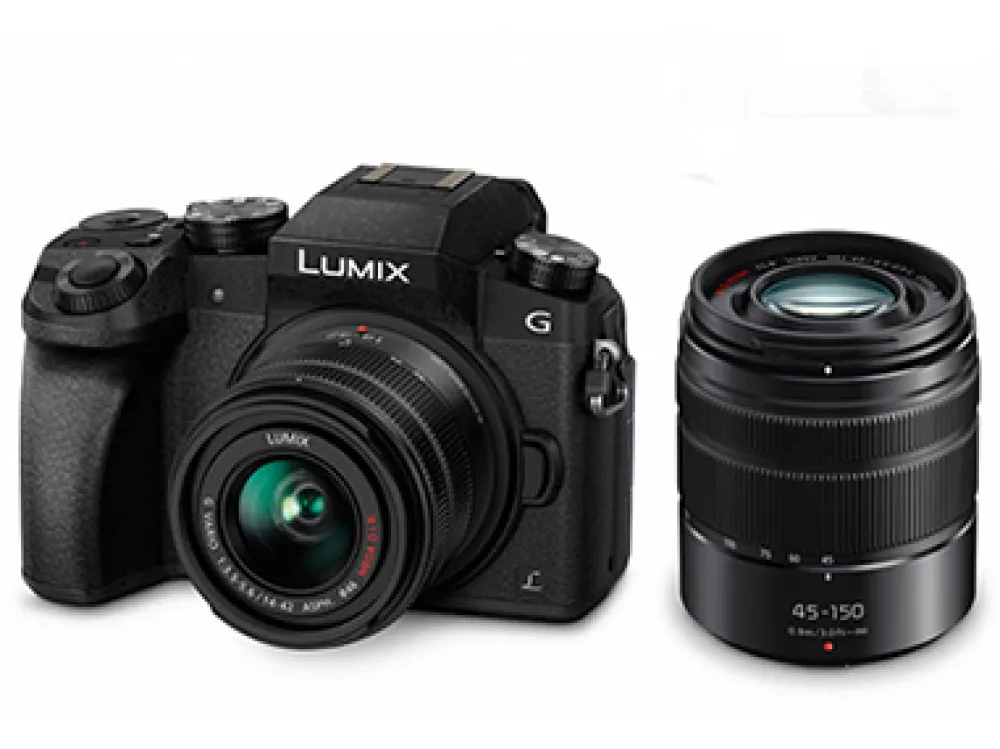

Panasonic Interchangeable Lens Cameras | Mirrorless Cameras Only | G7 Camera with 14-42mm and 45-150mm Lenses #

AT A GLANCE

• 16 MP Live MOS Sensor
• Venus Engine 9 Image Processor
• Micro Four Thirds System
• 2.36m-Dot OLED Viewfinder
• 3.0″ 1.04m-Dot Free-Angle Touchscreen
• 4K UHD Video Recording at 30/24 fps
• Built-In Wi-Fi Connectivity
• Up to 8 fps Shooting with AF & ISO 25600
• DFD AF System, 4K Photo Modes
• 14-42mm f/3.5-5.6 II MEGA O.I.S. Lens

DESCRIPTION

Offering true recording versatility, the black Panasonic Lumix DMC-G7 is a true hybrid mirrorless camera that blends 4K UHD video with advanced still capture and burst shooting capabilities. Revolving around a 16 MP Live MOS Micro Four Thirds sensor and Venus Engine 9 image processor, the G7 features notable low-light sensitivity to ISO 25600, continuous shooting to 8 fps with single-shot AF, as well as a trio of 30 fps shooting rates based on the 4K UHD video recording. Complementing the fast burst shooting modes is an equally adept DFD autofocus system, which works to quicken focusing speeds and emphasize accurate subject tracking for consistently sharp imagery in fast-paced and trying working conditions. Rounding out the feature-set of the G7 is a contemporary body design accentuated by physical exposure control dials, six customizable function buttons, both a high-resolution EVF and 3.0″ tilting touchscreen LCD, and built-in Wi-Fi for wireless sharing and remote camera control. Bridging the gap between stills and video, the Lumix DMC-G7 pairs these two high-resolution mediums with refined focusing and shooting controls for the utmost in shooting versatility.

Included with the camera body is the well-rounded Lumix G Vario 14-42mm f/3.5-5.6 II ASPH. MEGA O.I.S. lens, which provides a 28-84mm equivalent focal length range to cover wide-angle to short telephoto perspectives. An Optical Image Stabilizer compensates for camera shake for sharper handheld shooting while a pair of aspherical elements help to minimize the overall lens size and maintain a high degree of sharpness and clarity throughout the zoom range.

16 MP Live MOS Sensor and Venus Engine 9
A 16 MP Live MOS Micro Four Thirds sensor pairs with an updated Venus Engine 9 to deliver fast overall performance with matched image quality to suit working in a wide variety of lighting conditions with consistent results. Sensitivity ranges from ISO 200 to 25600, with the ability to extend down to ISO 100 for working in bright conditions or with longer shutter speeds. Versatile burst shooting modes also allow you to pair high continuous shooting rates with AF; including shooting up to 8 fps with AF-S, 6 fps with AF-C in one area, and 6 fps during live view. For even faster performance, up to 40 fps shooting is possible with the electronic shutter function or 30 fps at 8 MP using the 4K Photo Modes.

The sensor and processor combination also helps to ensure notable image quality through the use of accurate white balance settings, Live TTL direct exposure metering, and intelligent NR (Noise Reduction) control for clean, natural imagery. Additionally, the Venus Engine 9 aids in reducing image blur caused by diffraction using electronic adjustment to automatically sharpen edges for clearer results when photographing with smaller aperture sizes.

4K UHD Video Recording
In addition to the versatile still shooting modes, the G7 also supports recording 4K UHD (3840 x 2160) video with either 30p or 24p frames rates at 100Mbps in the MP4 format. Full HD 1080p/60 is also supported, in both MP4 and AVCHD formats, as well as HD and SD resolutions.

A built-in stereo microphone can be used during recordings, and features an integrated wind-cut filter, or an optional external microphone can be utilized via the 3.5mm jack for even clearer sound.

4K Photo Modes
Utilizing the 4K video recording capabilities, a trio of still shooting modes are available for recording continuous 8 MP stills at a 30 fps shooting rate:

• 4K Burst: Just as with video recording, this mode will allow you to continuously record 8 MP images at 30 fps for up to 29 min. 59 sec., making it ideal for instances where you need a fast frame rate in order to capture the best moment.
• 4K Pre-Burst: This mode is ideal for times when you’re unsure of the critical moment to press the shutter button and will record 8 MP images at 30 fps one second prior to and one second after pressing the shutter button in order to give you 60 frames to choose from.
• 4K Burst (S/S): This mode most closely follows the 4K video recording process, and allows you to playback your video, pause at the chosen moment, and use the shutter button to mark a chosen frame from the video and save it as a single 8 MP frame.

When using any of the 4K Photo modes, you are afforded complete exposure control using the PSAM dial in order to base metering results and exposure configurations on your own shooting needs.

Depth-From-Defocus AF Technology
For accelerated autofocus performance, which performs in low-light conditions down to -4 EV, DFD (Depth-From-Defocus) technology is employed to quickly calculate the distance to subjects and adjust the focusing position in as little as 0.07 seconds. This contrast-detection type focus method benefits both still and video recording modes, as well as subject tracking applications where subject color, size, and motion vectors are used to intelligently lock-onto the moving subjects and ensure precise focus.

Benefiting manual focus operation, focus peaking is available that highlights bright edges of contrast with a colored outline for quickly recognizing your focus point, as well as depth of field distances.

Body Design and Wi-Fi
Featuring a sleek design that is characteristic to Micro Four Thirds cameras, the G7 pairs retro aspects with modern functionality for intuitive use and classic appeal. Front and rear dials avail direct aperture and shutter speed control, as well as quick changing of ISO and white balance settings. Six function buttons can be assigned to control a range of custom features and the main drive wheel offers fast switching between shooting modes, including the 4K Photo modes.

For greater versatility when shooting, both a high-resolution electronic viewfinder and rear LCD monitor are available. The 2.36m-dot OLED Live View Finder features a 10,000:1 contrast ratio for bright, accurate viewing of scenes, even in difficult lighting. The 3.0″ 1.04m-dot LCD features a static touchscreen design for intuitive navigation and control, as well as a vari-angle design for easier working from high and low angles.

Rounding out the handling capabilities, the G7 also features built-in Wi-Fi connectivity for wirelessly sharing images and remotely controlling the camera from a linked mobile device using the Panasonic Image App. Connection is simplified using a QR code system to pair the smartphone or tablet with the camera.

Lumix G Vario 14-42mm f/3.5-5.6 II ASPH. MEGA O.I.S. Lens
A versatile standard zoom, the Lumix G Vario 14-42mm f/3.5-5.6 II ASPH. MEGA O.I.S. is a 28-84mm equivalent wide-to-short tele featuring an Optical Image Stabilizer to minimize the appearance of camera shake for sharper handheld shooting. Two aspherical elements are incorporated within the lens design to reduce the overall size and weight as well as benefit image sharpness and clarity. Complementing the optical design is an internal focusing system that pairs with the camera’s contrast-detection AF for quick, accurate focusing performance.

Lumix G Vario 45-150mm F4.0-5.6 ASPH., Micro Four Thirds, MEGA Optical I.S.
Featuring an ultra-compact size and light weight body, the LUMIX G VARIO 45-150 mm / F4.0-5.6 ASPH. / MEGA O.I.S. lens offers a versatile zoom range of 45-150 mm (35 mm camera equivalent: 90-300 mm) providing a versatile medium zoom range for daily situations. Comprised of 12 elements in nine groups, one UHR (Ultra High Refractive Index) lens and two aspherical lenses in the LUMIX G VARIO 45-150mm / F4.0-5.6 ASPH. / MEGA O.I.S. achieves uniform sharpness from the center to the corners for high optical performance.

Other Camera Features

• An electronic shutter function affords both a high top shutter speed of 1/16,000 sec. as well as silent operation for quick, inconspicuous shooting.
• UHS-II SDHC/SDXC memory cards are supported in order to benefit the high-resolution, data-intensive 4K movie and raw burst shooting workflows.
• An Electronic Level Gauge can be used to help ensure level horizons and plumb verticals.
• HDR (High Dynamic Range) automatically composites several images of varying exposures in order to gain greater highlight and shadow details and an extensive middle range of tones.
• A built-in pop-up flash provides additional illumination for photographing in difficult lighting conditions, and features a guide number of 20.3′ at ISO 100.
• A Panorama mode automatically stitches together multiple images in order to realize one wide-spanning horizontal or vertical image.
• Photo Style modes: Standard, Vivid, Natural, Monochrome, Scenery, Portrait, Custom, Cinelike D, and Cinelike V.
• Creative Control modes: Expressive, Retro, Old Days, High Key, Low Key, Sepia, Monochrome, Dynamic Monochrome, Rough Monochrome, Silky Monochrome, Impressive Art, High Dynamic, Cross Process, Toy Effect, Toy Pop, Bleach Bypass, Miniature Effect, Soft Focus, Fantasy, Star Filter, One Point Colour, and Sunshine.
• Language support: English, Japanese, German, French, Italian, Spanish, Portuguese, and Chinese (Traditional).

SPECIFICATIONS

Lens Mount Micro Four Thirds
Camera Format Micro Four Thirds (2x Crop Factor)
Pixels Actual: 16.84 Megapixel Effective: 16 Megapixel
Max Resolution 4592 x 3448
Aspect Ratio 1:1, 3:2, 4:3, 16:9
Sensor Type / Size MOS, 17.3 x 13.0 mm
File Formats Still Images: JPEG, MPO, RAW Movies: MP4, MPEG-4 AVCHD Audio: AAC, Dolby Digital 2ch
Dust Reduction System Yes
Memory Card Type SD SDHC SDXC
Video Recording Yes, NTSC
Video Format UltraHD
MP4

• 3840 x 2160p / 30 fps (100 Mbps)
• 3840 x 2160p / 24 fps (100 Mbps)
• High Definition
  MP4
• 1920 x 1080p / 60 fps (28 Mbps)
• 1920 x 1080p / 30 fps (20 Mbps)
• High Definition
  MP4
• 1280 x 720p / 30 fps (10 Mbps)
• Standard Definition
  MP4
• 640 x 480p / 30 fps (4 Mbps)
• High Definition
  AVCHD
• 1920 x 1080p / 60 fps (28 Mbps)
• 1920 x 1080p / 30 fps (24 Mbps)
• 1920 x 1080p / 24 fps (24 Mbps)
• High Definition
  AVCHD
• 1920 x 1080i / 60 fps (17 Mbps)
• Aspect Ratio 4:3, 16:9
  Video Clip Length Up to 29 Minutes 59 Seconds
  Audio Recording Built-in Mic: With Video, Stereo
  Optional External Mic With Video, Stereo
  Focus Type Auto & Manual
  Focus Mode Continuous-servo AF (C), Flexible (AFF), Manual Focus (M), Single-servo AF (S)
  Autofocus Points Contrast Detection: 49
  Viewfinder Type Electronic
  Viewfinder Pixel Count 2,360,000
  Viewfinder Eye Point 17.5 mm
  Viewfinder Coverage 100%
  Viewfinder Magnification Approx. 1.4x
  Diopter Adjustment – 4 to +4 m
  Display Screen 3″ Rear Touchscreen Swivel LCD (1,040,000)
  Screen Coverage 100%
  ISO Sensitivity Auto, 200-25600 (Extended Mode: 100-25600)
  Shutter Type: Electronic & Mechanical Speed: 60 – 1/4000 second Type: Electronic & Mechanical Speed: 2 – 0 minutes in Bulb Mode Type: Electronic Speed: 1 – 1/16000 second 1/125 – 1/16000 second in Movie Mode
  Remote Control DMW-RSL1 (Optional)
  Metering Method Centre-weighted average metering, Multiple, Spot metering
  Exposure Modes Modes: Aperture Priority, Manual, Programmed Auto, Shutter Priority
  Metering Range EV 0.0 – EV 18.0
  Compensation -5 EV to +5 EV (in 1/3 EV steps)
  White Balance Modes Auto, Cloudy, Colour Temperature, Daylight, Flash, Incandescent, Shade, White Set 1, White Set 2, White Set 3, White Set 4
  Burst Rate Up to 40 fps at 16 MP for up to 80 frames
• Up to 30 fps at 8 MP for up to 53,970 frames
• Up to 8 fps at 16 MP for up to 80 frames
• Up to 6 fps at 16 MP for up to 80 frames
• Up to 2 fps at 16 MP for up to 80 frames
• Flash Modes Auto Auto/Red-eye Reduction Forced On Forced On/Red-eye Reduction Off Slow Sync Slow Sync/Red-eye Reduction
  Built-in Flash Yes
  Guide No. 20.34′ (6.2 m) ISO100 at 24 mm position
  Max Sync Speed 1 / 160 seconds
  Flash Compensation -3 EV to +3 EV (in 1/3 EV steps)
  Dedicated Flash System TTL
  External Flash Connection Hot Shoe
  Continuous Shooting Up to 40 fps
  Self Timer 10 seconds, 2 seconds
  Connectivity 1/8″ Microphone, 2.5mm Sub-mini (2-Ring), HDMI D (Micro), USB 2.0, Viera Link
  Wi-Fi Capable Yes
  Software System Requirements Windows: Vista, 7, 8, 8.1 Mac: OS X 10.5 or later
  Battery 1x Rechargeable Lithium-ion Battery Pack, 7.2 VDC, 1200 mAh
  Operating/Storage Temperature 32 to 104°F (0 to 40°C) Humidity: 10 – 80%
  Dimensions (WxHxD) 4.9 x 3.4 x 3.0″ / 124.9 x 86.2 x 77.4 mm
  Weight 14.64 oz / 415 g with battery and memory card

  KIT LENS SPECIFICATIONS
  Lumix G Vario 14-42mm f/3.5-5.6 II ASPH. MEGA O.I.S. Lens Focal Length 14 – 42mm
  Comparable 35mm Focal Length 28 – 84 mm
  Aperture Maximum: f/3.5 – 5.6 Minimum: f/22
  Angle of View 75° – 29°
  Minimum Focus Distance 7.87″ (20 cm)
  Magnification 0.17x
  Elements/Groups 9/8
  Diaphragm Blades 7, Rounded
  Autofocus Yes
  Image Stabilization Yes
  Filter Thread Front:46 mm
  Dimensions (DxL) Approx. 2.20 x 1.93″ (56 x 49 mm)
  Weight 3.88 oz (110 g)

What’s in the Box:

• Panasonic LUMIX DMC-G7 Digital Camera
• Lumix G Vario 14-42mm f/3.5-5.6 II ASPH
• Lumix G Vario 45-150mm F4.0-5.6 ASPH
• Battery Pack
• Battery Charger
• Body Cap
• USB Cable
• Shoulder Strap
• Hot Shoe Cap
• Owner’s Manual
• CD-ROM of Software
