Atomos Video Accessories | 7 inch SHOGUN Monitor-Recorder

• AtomOS 11, 12G-SDI/HDMI Conversion
• 7″ 1920 x 1080Touchscreen
• Records up to 6K Apple ProRes Raw
• ProRes Raw, H.265 Recording
• AirGlu RF Wireless Sync, GigE, 6 Wi-Fi
• 2000 cd/m² Brightness
• AVID DNX QuickTime
• Atomos RemoteView via Subscription
• NDI HD TX 1-Off Activation

Panel Type  IPS-Type LCD

Display Size  7.0″ / 17.8 cm

Resolution  1920 x 1200

Aspect Ratio  16:9

Touchscreen  Yes

Maximum Brightness  2000 nits / cd/m2

Bit Depth / Color Support  10-Bit (1.07 Billion Colors)

HDR Compatibility  HDR10

Pixels Per Inch (ppi)  315 ppi

Color Gamut  100% DCI-P3
100% Rec. 2020

Real-Time LUT Monitoring  SDR, HDR

Image Controls  Anamorphic De-Squeeze, False Color, Focus Peaking, OSD Flip, RGB Parade, Vectorscope, Waveform, Zebra

Video I/O

1 x HDMI 2.0 Input
1 x BNC (12G-SDI) Input
1 x HDMI 2.0 Output
1 x BNC (12G-SDI) Output

Embedded Audio  HDMI: 8-Channel
  SDI: 24-Channel

Audio I/O  1 x 1/8″ / 3.5 mm Headphone Output
 1 x 1/8″ / 3.5 mm Input
 1 x 1/8″ / 3.5 mm Output

Built-In Speaker  None

Power I/O  1 x Barrel Input

Other I/O

1 x 2.5 mm (LANC)
1 x USB-C (Serial) Input
1 x RJ45 (Gigabit Ethernet) Input

Media/Memory Card Slot  Single Slot: SSDmini/SSD with Master Caddy II/III

File System Support  exFAT

Wi-Fi  Wi-Fi 6 (802.11ax); Dual-Band (2.4 & 5 GHz)

Bluetooth  Yes

Mobile App Compatible  Yes: Android & iOS
App Name: AtomRemote
Functionality: Adjust Settings, Setup
*As of September, 2023: Check with manufacturer for the most up-to-date compatibility

Format Support

Video Format  HDMI/SDI (8/10-Bit 4:2:2/4:2:0 YCC)
6K Raw: 30
4K Raw: 120
DCI 4K: 60
UHD 4K: 60
DCI 2K: 60
1080p: 120
1080i: 60/50
720p: 60

Gamma Curve  ARRI Log C, ARRI Log C4, Canon Log, Canon Log 2, Canon Log 3,

 DCI-P3, DCI-P3+, FLAT, FUJIFILM F-Log, FUJIFILM F-Log 2, HDR-HLG,

 JVC J-Log, Nikon N-Log, OM-Log, Panasonic V-Gamut, Panasonic V-Log,

 Rec709, Rec2020, RED IPP2, REDlogFilm, S Cinetone, Sony S-Log 2,

 Sony S-Log 3, V-Log, V-Log L, Wide DR, Z-Log2

Video Signal Conversion  HDMI to SDI

 SDI to HDMI

Timecode Support Yes

Recording

Pulldown Conversion  None

Camera Trigger  SDI, HDMI

Pre-Roll Record  None

Encoding Formats  x
DNxHD
H.265
ProRes

Metadata Tagging  Yes

Phantom Power  None

Power

DC Input Power  6.2 to 16.8 VDC

Built-In Battery  None

Battery Type  1 x L-Series

Mounting

3 x 1/4″-20 Female
3 x 3/8″-16 Female

Environmental Protection  None

Operating Temperature  72°F / 40°C

Material of Construction  Aluminum, Polycarbonate

Dimensions  7.8 x 5.2 x 1.6″ / 198 x 133 x 40 mm

Weight  1.6 lb / 730 g

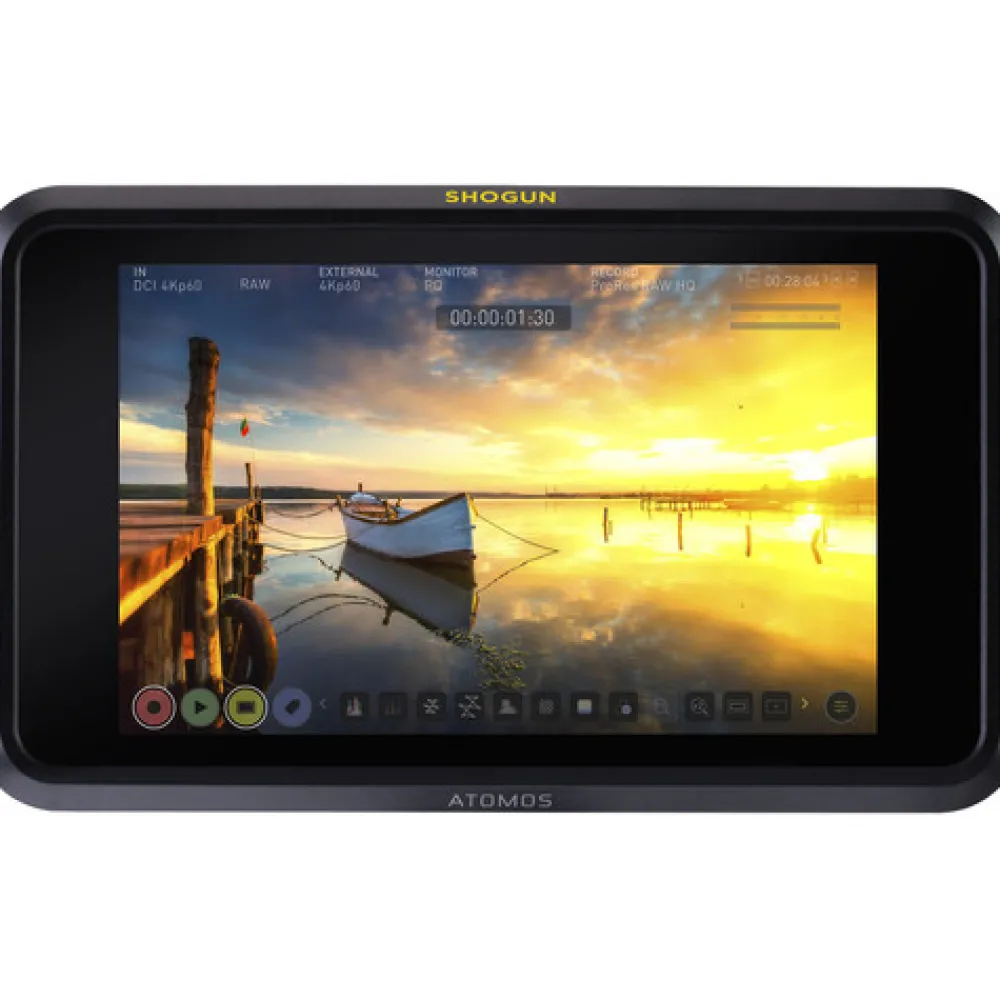

Atomos 7″ SHOGUN Monitor-Recorder
