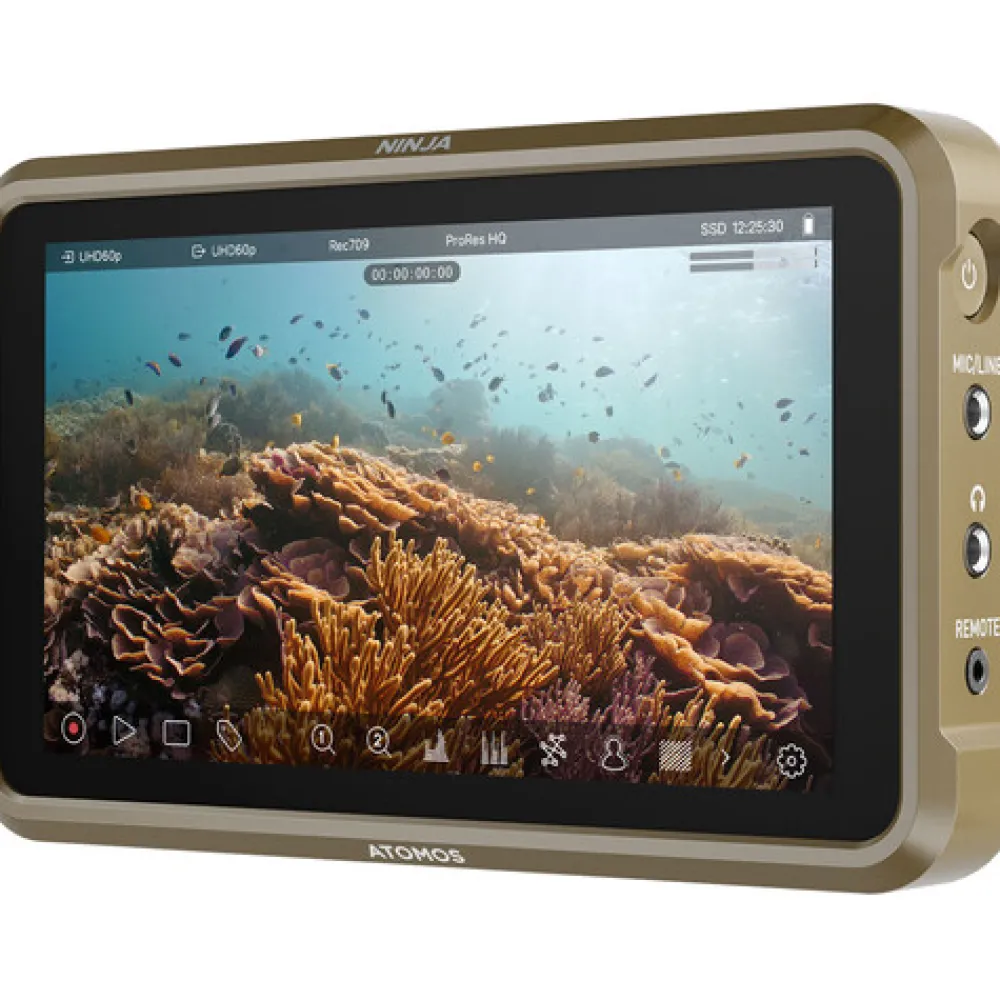

Atomos Video Accessories | Ninja 5.2 4K HDMI Recording Monitor

With an updated operating system, HDR monitoring, and RAW recording capabilities, the Atomos Ninja 5.2″ 4K HDMI Recording Monitor is a 5.2″ on-camera monitor and recorder ideal for use on your next set. This monitor supports DCI 4K HDMI footage and can even record ProRes RAW up to 6K with compatible cameras. The Ninja retains the same form factor as its predecessors to be compatible with most Atomos monitor accessories for easy integration with your preexisting equipment.

AtomOS 11 Operating System

Built for the new Ninja, the AtomOS 11 operating system equips your monitor with new features along with an improved icon interface for more intuitive operation. Focus Peaking, Zoom, Atomos and ARRI False Color, EL Zone colorized exposure, Safe Areas, RecordAssit, PlayBackAssist, SegmentPro, and Cine Guides are among the many monitor assist functions available. The AtomHDR processing engine allows for real-time Log to PQ/HLG previewing.

5.2″ Touchscreen Display

The 5.2″ IPS touchscreen of the Ninja offers a 1920 x 1080 resolution with 1000 cd/m² brightness for viewing in broad daylight. The 10-bit color processing, Rec.709 color gamut, and Calibrite ColorChecker Display Pro/Plus calibration support ensure color-accurate, high-quality monitoring of your footage.

Comprehensive Color

The Ninja supports the use of select Sony, ARRI, JVC, RED, FUJIFILM, Nikon, Panasonic, and Canon log formats. Upload custom 3D LUTs to the monitor and output HDR conversion to Log, HLG, PQ, or Dolby Vision formats.

HDMI Interface, ProRes RAW Recording

• The Ninja’s HDMI input and output ports support up to DCI 4K video at 60 fps in monitoring, recording, and playback modes. 3.5K RAW at 60 fps footage is supported with select cameras.
• Over 55 different cameras support RAW recording over HDMI with the Ninja up to 6K at 30 fps.

Record 4K HDR Gaming

The Ninja can be configured as a stand-alone system for UHD 4K, HDR, and high frame rate gaming capture. Record, monitor, and instantly review your gameplay for posting to YouTube or other platforms.

Optional Atomos CONNECT Module

The Ninja is compatible with the separately available Atomos CONNECT module to access cloud workflows like C2C, Atomos Edit, and Atomos RemoteView via Atomos Cloud Studio. The CONNECT module adds 12G-SDI connectivity, AirGlu wireless timecode and control, Wi-Fi 6, and GigE Ethernet to your monitor interface. This allows you to send video signals to live streaming platforms, via NDI, and to custom RTMP/S destinations. You can also convert HDMI to SDI and SDI to HDMI video using the CONNECT module.

AtomX Cast

Use the AtomX CAST to transform your Ninja into a compact, fully featured production studio. This component enables advanced multi-input switching from four 1080p HDMI sources, the application of graphic overlays, and the ability to use a USB UVC webcam output for enhanced web conferencing and live streaming.

SSD Recording

The Ninja is compatible with the Atomos Master Caddy II and Master Caddy III 2.5″ hard drive units which support direct recording to the drives. You can also record onto compact AtomX SSDmini drives and CFAST II cards using a separately available adapter.

Power Options

An L-series battery plate on the back of the Ninja can support NP-F L-series batteries outputting 5.8 to 7.2V. A USB-C port supports 30W PD power delivery with the included cable. Use the included dummy eliminator to power the monitor via DC power sources.

Control Options

• Multifunction control buttons work in tandem with the touchscreen interface for intuitive onboard control.
• Auto HDMI camera trigger is supported by Canon and Sony cameras using Atomos Open Standard.
• Unlock Bluetooth and RF-driven remote control with the optional CONNECT module.
• LANC control and calibration can be accessed using a separately available USB-C to serial connection cable.

Display Size  5.2″ / 13.2 cm

Resolution  1920 x 1080

Touchscreen  Yes

HDR Compatibility  Hybrid Log Gamma

Video I/O  1 x HDMI 2.0 Input
 1 x HDMI 2.0 Output

Panel Type  IPS-Type LCD

Display Size  5.2″ / 13.2 cm

Resolution  1920 x 1080

Aspect Ratio  16:9

Touchscreen  Yes

Maximum Brightness  1000 nits / cd/m2

Bit Depth / Color Support  8-Bit+FRC (1.07 Billion Colors)

HDR Compatibility  Hybrid Log Gamma

Pixels Per Inch (ppi)  427 ppi

Real-Time LUT Monitoring  HDR

Image Controls Anamorphic De-Squeeze, Blue Only, False Color, Focus Peaking, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra

Video I/O  1 x HDMI 2.0 Input
 1 x HDMI 2.0 Output

HDCP Support  No

Embedded Audio  HDMI

Audio I/O  1 x 1/8″ / 3.5 mm Input
 1 x 1/8″ / 3.5 mm Headphone Output

Built-In Speaker  None

Power I/O  1 x Barrel Input

Other I/O  1 x USB-C

Media/Memory Card Slot  None

File System Support  exFAT

Wi-Fi  None

Bluetooth  None

Mobile App Compatible Yes: iOS Only
  App Name: AtomRemote
  *As of August, 2023: Check with manufacturer for the most up-to-date compatibility

Format Support

Video Format  HDMI (8/10/16-Bit 4:2:2)
6K Raw: 30
DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF
1080i: 120/100/60/59.94/50/30/29.97/25/24/23.98
 720p: 60/59.94/50/30/29.97/25/24/23.98

Gamma Curve ARRI Log C, Canon Log, Canon Log 2, Canon Log 3, FUJIFILM F-Log, HDR-HLG, HDR-PQ, JVC J-Log, Nikon N-Log, Panasonic V-Log,

  Rec709, Sony S-Log, Sony S-Log 2, Sony S-Log 3

Timecode Support  Yes

Recording

Pulldown Conversion  2:2, 3:2

Camera Trigger  HDMI

Pre-Roll Record  Full HD: 8 Seconds
4K: 2 Seconds

Encoding Formats  x
DNxHR
DNxHD
ProRes

Maximum Audio Tracks  8

Reference Input  None

Phantom Power  None



Power

DC Input Power  6.2 to 16.8 VDC

Built-In Battery  None

Battery Type  1 x L-Series

Power Consumption  30 W

Atomos Ninja 5.2″ 4K HDMI Recording Monitor

• Battery Eliminator
• USB-C PD to 2.1mm DC Power Cable
