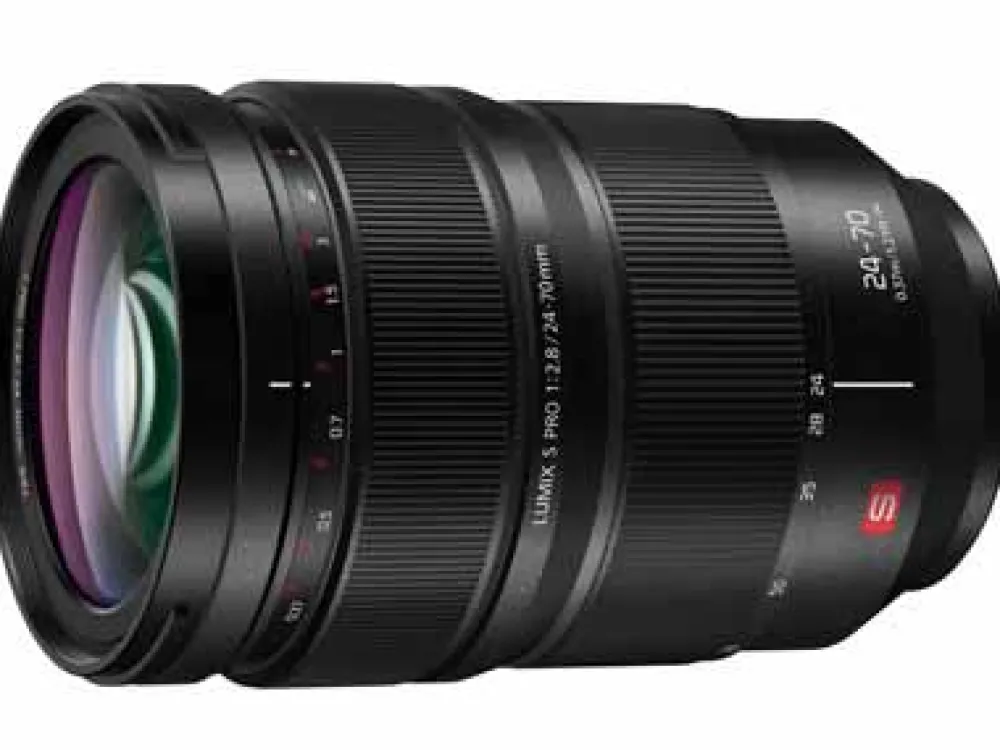

Panasonic Wide Angle Zoom | Wide Angle Zoom | 24-70mm f2.8 Lumix S Pro Lens

AT A GLANCE

• L-Mount Lens/Full-Frame Format
• Aperture Range: f/2.8 to f/22
• Four ED Elements, One UHR Element
• Three Aspherical Elements
• Dual AF System: Linear & Stepping Motors
• Optical Image Stabilizer
• Weather-Sealed Construction
• Rounded 11-Blade Diaphragm
• Filter Thread 82mm

DESCRIPTION

Panasonic is proud to introduce a new interchangeable standard zoom lens, the LUMIX S PRO 24-70mm F2.8 (S-E2470) based on the L-Mount system for the LUMIX S Series Full-frame Digital Single Lens Mirrorless Camera. Specially focusing on professional use, the LUMIX S Series pursues uncompromising photographic expression with its high-quality cameras and lenses.

The LUMIX S PRO 24-70mm F2.8 (S-E2470) is a large-aperture standard zoom lens that boasts high descriptive performance across the entire zoom range. The optical performance of this LUMIX S PRO lens is remarkably high to clear stringent LEICA standards.

Ensuring versatile use for landscapes, snaps and portraits with its 24-70mm focal length, the LUMIX S PRO 24-70mm F2.8 features stunningly high resolution and high contrast at each focal length point. The full-range F2.8 high-speed aperture provides smooth defocus gradation from the focus peak to the neighboring area of the image to achieve a beautiful bokeh effect as well as a rich perspective.

Comprising 18 lenses in 16 groups, the use of 3 aspherical lenses and 4 ED (Extra-low Dispersion) lenses effectively suppresses both axial chromatic aberration and chromatic aberration of magnification. Astigmatism is also corrected with these aspherical lenses, achieving high resolving performance. Furthermore, a UHR (Ultra-High Refractive Index) lens achieves uniform image quality from the center to edges of the image while contributing to downsizing of the lens unit.

A double focus system combining a linear motor and a stepping motor achieves sensor drive at a maximum speed of 480 fps. This realizes fast, high-precision AF to ensure that a photo opportunity is never missed. Adoption of a focus clutch mechanism enables instant AF/MF switching and accurate manual focusing. The LUMIX S PRO 24-70mm F2.8 also excels in video recording performance with a mechanism that suppresses focus breathing, which was a fatal problem in all interchangeable lenses designed for still image photography.

The rugged dust/splash-resistant* design withstands use under harsh conditions even at 10 degrees below zero for high mobility. The filter diameter is 82 mm, with an 11-blade circular aperture diaphragm.

SPECIFICATIONS

Focal Length24 to 70mm
Maximum Aperture f/2.8
Minimum Aperture f/22
Lens Mount Leica L
Format Compatibility Full-Frame
Angle of View 84° to 34°
Maximum Magnification 0.25x
Minimum Focus Distance 1.21′ / 37 cm
Optical Design 18 Elements in 16 Groups
Diaphragm Blades 11, Rounded
Focus Type Autofocus
Image Stabilization Yes
Filter Size 82 mm (Front)
Dimensions (ø x L) 3.58 x 5.51″ / 90.9 x 140 mm
Weight 2.06 lb / 935 g

Panasonic Lumix S PRO 24-70mm f/2.8 Lens

• Front Lens Cap
• Rear Lens Cap
• Lens Hood
• Lens Bag
